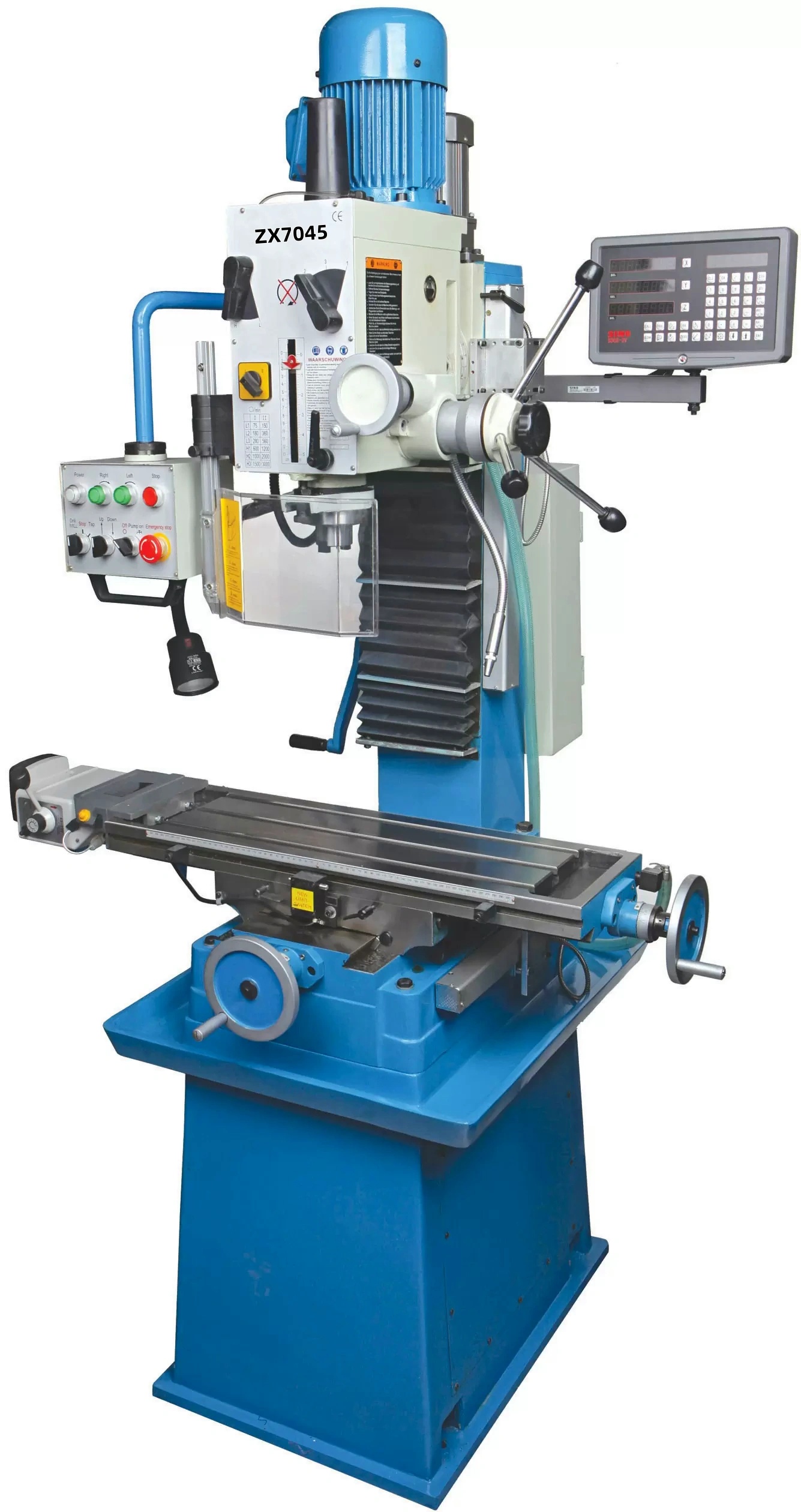

ZX7045 / ZX7045-PF
| Quantity: | |
|---|---|
Feature:
· Compact design and versatility drilling and milling machine
· Swiveling head for wide range of applications
· Easy to operate switches on swivelling controlling panel
· Lubrication gear head with quite operation
· Depth ruler easy to read at front panel as standard
· Rigid constrction of table and base
· Casting iron stand
· 2-speed powerful motor
· Power elevation mill head
· X-axis power feed as standard
· Swivel work table is available
· Equip with safety spindle guard, LED work lamp, coolant system
· ZX7045 -PF provide to mechanical spindle auto-feed
| Model No. | ZX7045 | ZX7045-PF |
| Max. drilling capacity | 40mm | 40mm |
| Spindle sleeve diameter | 75mm | 75mm |
| Spindle taper | MT4 | MT4 |
| Spindle stoke | 120mm | 120mm |
| Spindle speeds | 75-3200rpm/12 | 75-3200rpm/12 |
| Spindle feeds | ~ | 0.1/0.18/0.26mm/r |
| Head tiltable | ±45° | ±45° |
| Distance spindle to column | 258mm | 258mm |
| Distance spindle to table | 460mm | 460mm |
| Table size | 800×240mm | 800×240mm |
| T-slot | 3x14x80mm | 3x14x80mm |
| Cross travel | 190mm | 190mm |
| Longitudinal travel auto/manual | 560mm/480mm | 560mm/480mm |
| Vertical travel | 350mm | 350mm |
| Table swivel | ~ | ~ |
| Max. workpiece weight | 100kg | 100kg |
| Coolant pump | 0.09kw | 0.09kw |
| Lifting motor | 0.35kw | 0.35kw |
| Main motor | 1.1/1.5kw | 1.1/1.5kw |
| Net weight | 480kg | 480kg |
| Gross weight | 550kg | 550kg |
| Dimension of machine | 1600x930x2110mm | 1600x930x2110mm |
| Packing size | 960x1050x2050 mm | 960x1050x2050 mm |
| Standard accessries | Optional accessories | |
| Safety spindle cover | 3-axis digital readout | |
| Depth ruler | Drilling vise-BMS 200 | |
| LED work lamp | Milling vise-QG 6 | |
| Coolant system | Collet chucks | |
| Casting iron stand | 58pcs clamping kits | |
| X-axis power feed | Variable speed head by inverter | |
| Power elevation | Pnumetic tool clamping | |
| Drill chuck | ||
| Drawbar | ||
| Arbor | ||
| Toolbox & tools |
