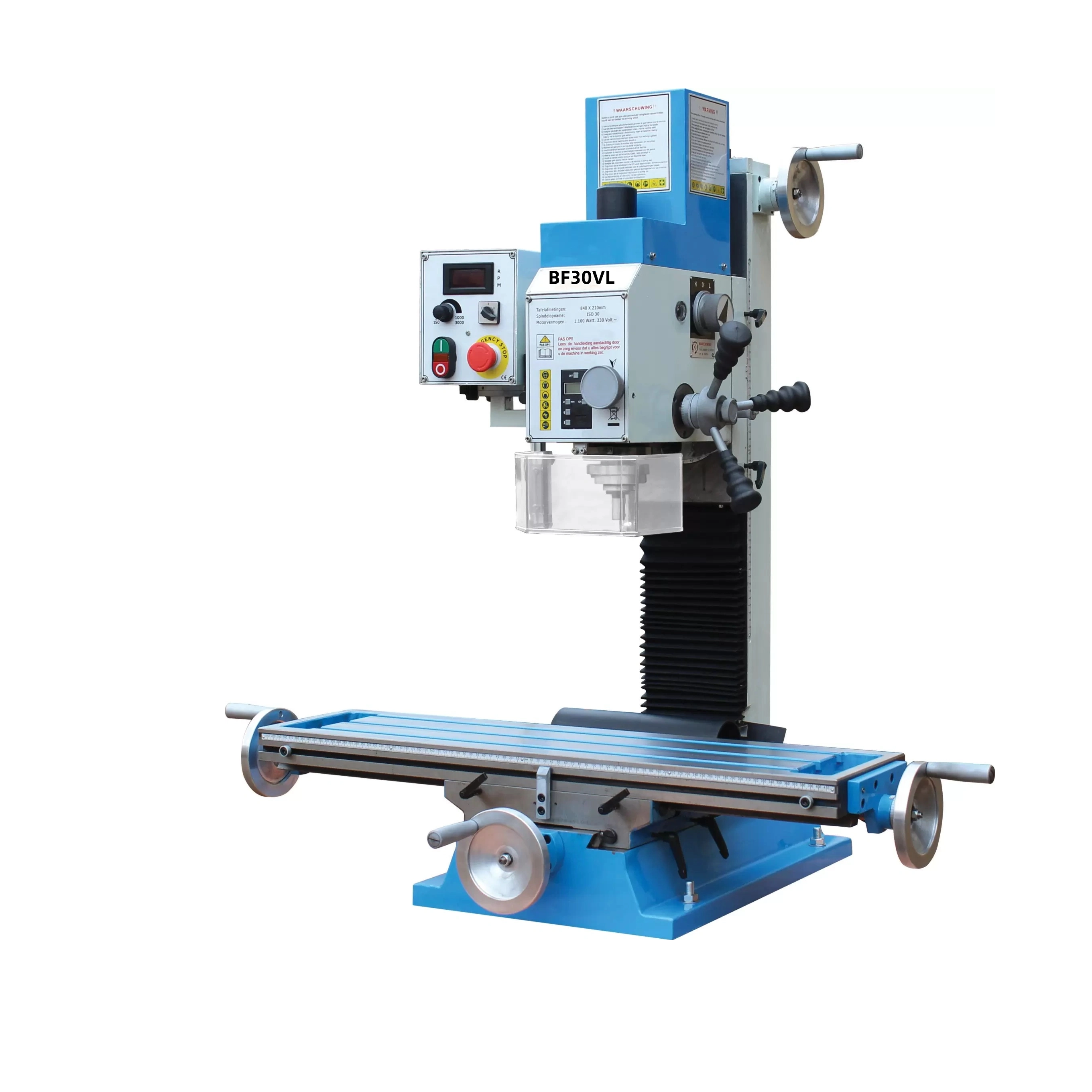

BF30 VARIO / BF30L VARIO

  • BF30 VARIO / BF30L VARIO

Availability:
Quantity:
Inquire Add to Basket

Feature:
· The mill is a very well engineered machine
· Precision spindle supported on taper roller bearings
· Dovetail column ensures positive head location
· Depth ruler easy to read at front panel as standard
· Easy to operate switches on controlling panel
· Infinitely variable by DC motor and PC control
· Two step of gears keep torque at lowest speed
· Equip with safety spindle guard
· CE standard electrical units

ModelBF 30 VarioBF 30L Vario
Drilling   Capacity30mm30mm
Spindle TaperMT3MT3
Spindle Stroke70mm70mm
Head Tilt±90º±90º
Number of   Spindle SpeedsVariableVariable
Ranger of   Spindle Speeds100-1100/150-3000rpm100-1100/150-3000rpm
Work Table700x210mm840x210mm
Longitudinal   travel450mm590mm
Cross travel220mm220mm
Vertical   travel370mm370mm
Number of   T-Slots33
T-Slot Size14mm14mm
Motor1.1kw1.1kw
Net Wet205kg220kg
Gross Weight225kg245kg
Overall   Dimension1090x710x1200mm1230x710x1200mm
Packing size960x730x1150mm1050x730x1150mm
Standard accessoriesOptional accessories
Speed readoutKeyless drill chuck
Depth ruler58pcs clamping kits
Safety spindle coverER25 collets chuck set
Drill chuckBSM 120 drilling vise
DrawbarQG 6" milling vise
ArborX-axis power feed
ToolsStand & chip tray

Deluxe stand with drawer

3-axis digital readout
