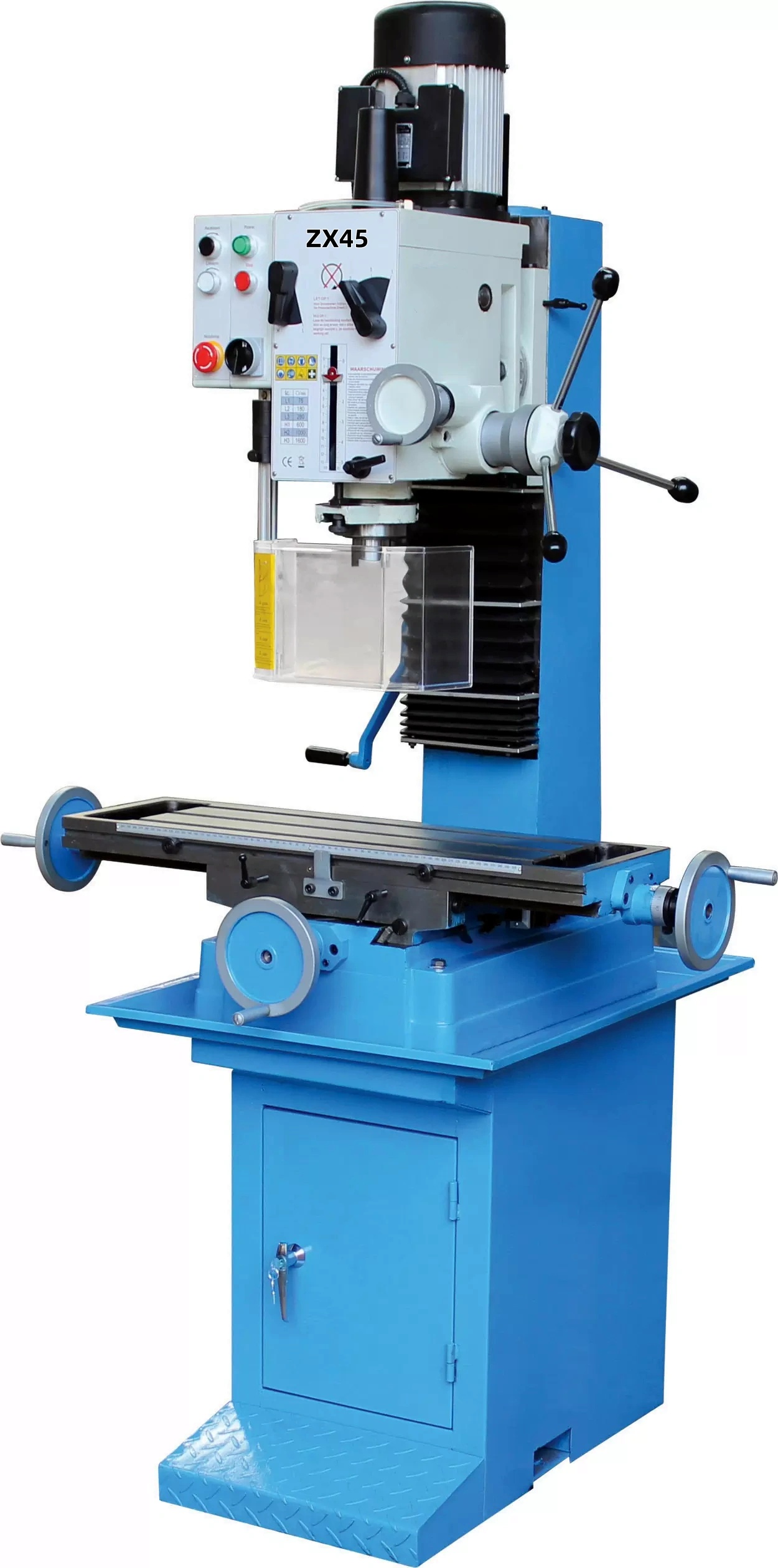

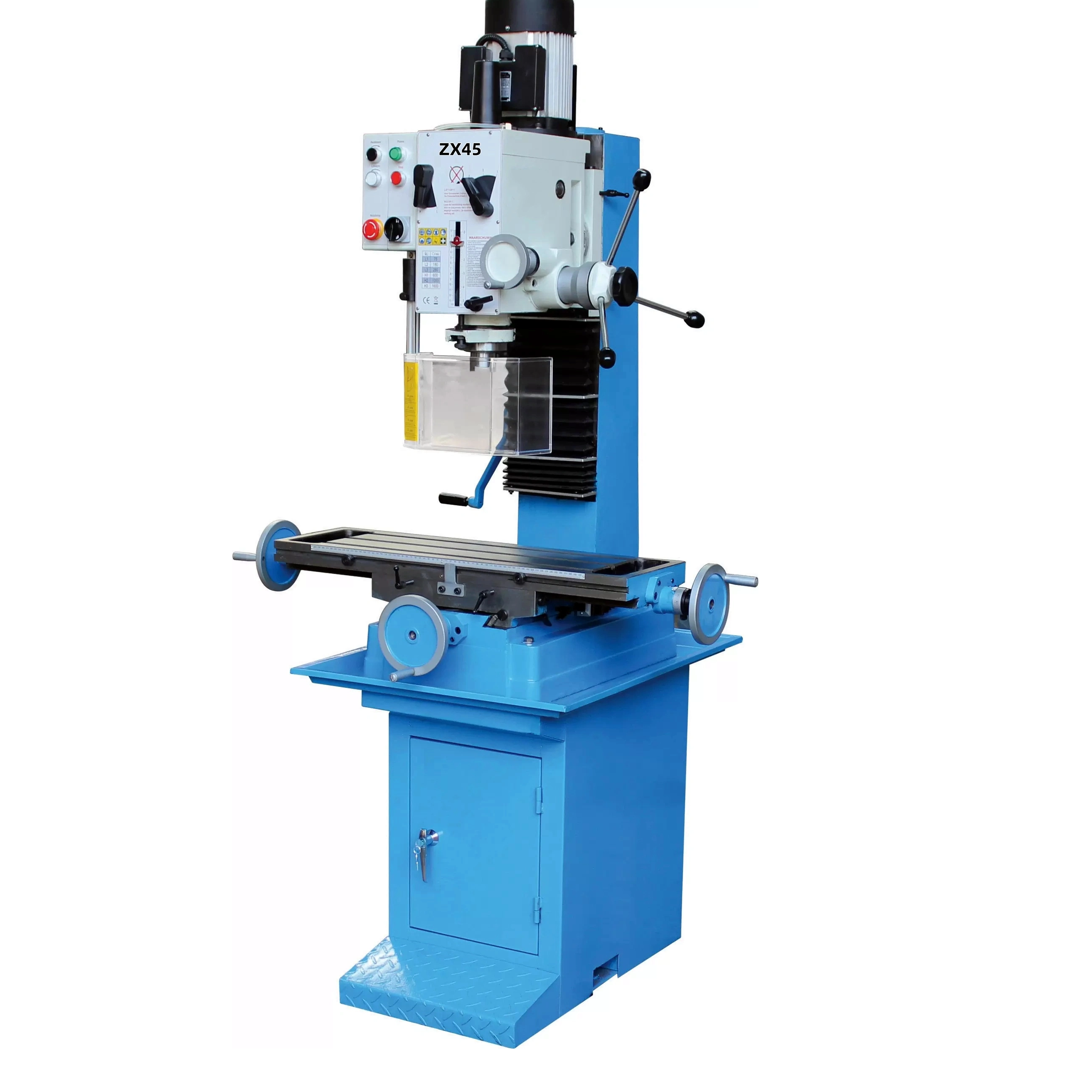

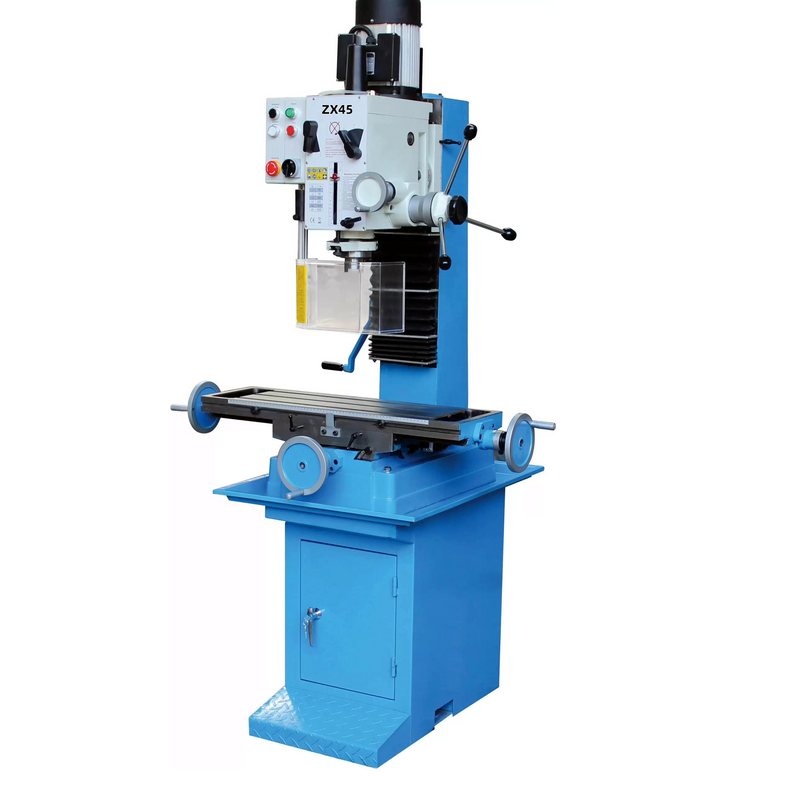

ZX45 /ZX45PF( AUTO FEEDING)
| Quantity: | |
|---|---|
Precision gear drive drilling＆milling machine
· Wide range of applications, such as drilling, milling, tapping, reaming etc.
· Precision spindle supported on taper roller bearings
· Dovetail column ensures positive head location
· Precision grinding gears lubricated by oil, ensure smooth running
· Right and left turning device for tapping
· Quality casting iron of large base for high rigidity
· Handwheel for quill micro down feed
· 2-speed motor for double speed range
· 24V low voltage controlling and safety chuck guard as standard
| Model | ZX45 | ZX 45 PF(SPINDLE AUTO FEEDING) |
| Max. drilling capacity | 45mm | 45mm |
| Spindle sleeve diameter | 75mm | 75mm |
| Spindle taper | MT4 | MT4 |
| Spindle stoke | 120mm | 120mm |
| Spindle speeds | 75-3200rpm/12 | 75-3200rpm/12 |
| Spindle feeds | ~ | 0.1/0.18/0.26mm/r |
| Head tiltable | ±45° | ±45° |
| Distance spindle to column | 258mm | 258mm |
| Distance spindle to table | 460mm | 460mm |
| Table size | 800×240mm | 800×240mm |
| T-slot | 3x14x80mm | 3x14x80mm |
| Cross travel | 190mm | 190mm |
| Longitudinal travel | 560mm | 560mm/480mm |
| Vertical travel | 350mm | 350mm |
| Table swivel | ~ | ~ |
| Max. workpiece weight | 100kg | 100kg |
| Coolant pump | ~ | ~ |
| Lifting motor | ~ | ~ |
| Main motor | 1.1/1.5kw | 1.1/1.5kw |
| Net weight | 330kg | 340kg |
| Gross weight | 380kg | 390kg |
| Dimension of machine | 1155x775x1420mm | 1155x775x1420mm |
| Packing size | 860x760x1150mm | 860x760x1150mm |
| Standard accessries | Optional accessories | |
| Safety spindle cover | Depth ruler | |
| Two speed motor | LED work lamp | |
| Tapping function | Coolant system | |
| Drill chuck | Drilling vise-BMS 200 | |
| Drawbar | Milling vise-QG 6" | |
| Arbor | Collet chucks | |
| Toolbox & tools | 58pcs clamping kits | |
| Stand & chip tray | ||
| Deluxe stand with drawer & chip tray | ||
| X-axis power feed | ||
| 3-axis digital readout | ||
Precision gear drive drilling＆milling machine
· Wide range of applications, such as drilling, milling, tapping, reaming etc.
· Precision spindle supported on taper roller bearings
· Dovetail column ensures positive head location
· Precision grinding gears lubricated by oil, ensure smooth running
· Right and left turning device for tapping
· Quality casting iron of large base for high rigidity
· Handwheel for quill micro down feed
· 2-speed motor for double speed range
· 24V low voltage controlling and safety chuck guard as standard
| Model | ZX45 | ZX 45 PF(SPINDLE AUTO FEEDING) |
| Max. drilling capacity | 45mm | 45mm |
| Spindle sleeve diameter | 75mm | 75mm |
| Spindle taper | MT4 | MT4 |
| Spindle stoke | 120mm | 120mm |
| Spindle speeds | 75-3200rpm/12 | 75-3200rpm/12 |
| Spindle feeds | ~ | 0.1/0.18/0.26mm/r |
| Head tiltable | ±45° | ±45° |
| Distance spindle to column | 258mm | 258mm |
| Distance spindle to table | 460mm | 460mm |
| Table size | 800×240mm | 800×240mm |
| T-slot | 3x14x80mm | 3x14x80mm |
| Cross travel | 190mm | 190mm |
| Longitudinal travel | 560mm | 560mm/480mm |
| Vertical travel | 350mm | 350mm |
| Table swivel | ~ | ~ |
| Max. workpiece weight | 100kg | 100kg |
| Coolant pump | ~ | ~ |
| Lifting motor | ~ | ~ |
| Main motor | 1.1/1.5kw | 1.1/1.5kw |
| Net weight | 330kg | 340kg |
| Gross weight | 380kg | 390kg |
| Dimension of machine | 1155x775x1420mm | 1155x775x1420mm |
| Packing size | 860x760x1150mm | 860x760x1150mm |
| Standard accessries | Optional accessories | |
| Safety spindle cover | Depth ruler | |
| Two speed motor | LED work lamp | |
| Tapping function | Coolant system | |
| Drill chuck | Drilling vise-BMS 200 | |
| Drawbar | Milling vise-QG 6" | |
| Arbor | Collet chucks | |
| Toolbox & tools | 58pcs clamping kits | |
| Stand & chip tray | ||
| Deluxe stand with drawer & chip tray | ||
| X-axis power feed | ||
| 3-axis digital readout | ||
