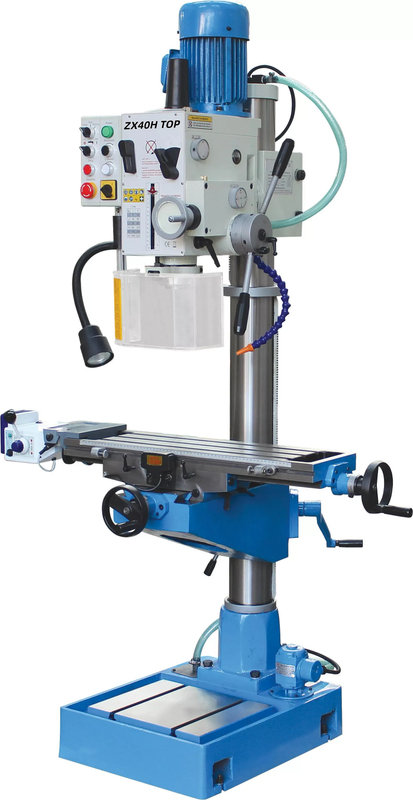

ZX40H TOP/ZX40H-V TOP (VARIO)
| Quantity: | |
|---|---|
Feature:
· Industrial gear drive drilling & milling machine
· Lubrication gear head with quite operation
· Depth ruler easy to read at front panel as standard
· Rigid construction of table and base
· Gear head 180° tiltable, 360° rotatable
· Gear head and work table are height adjustable
· Mechanical spindle auto-feed, tapping function is available
· Powerful 2-speed motor
· 24V controlling wiring
· Equip with safety spindle guard, LED work lamp, coolant system
· ZX40H-V (VARIO) Vario drive by inverter and frequency motor
| Model No. | ZX40H TOP | ZX40H-V TOP VARIO |
| Drilling capacity | 40mm | 40mm |
| Tapping capacity | M20 | M20 |
| Table capacity | 75kg | 75kg |
| Spindle taper | MT4 | MT4 |
| Spindle speeds | 75~3200rpm/12 | 75~480/425~2750rpm |
| Spindle feed | 0.1/0.18/0.26mm/r | 0.1/0.18/0.26mm/r |
| Dsitance spindle to column | 280mm | 280mm |
| Dsitance spindle to tabel | 640mm | 640mm |
| Dsitance spindle to base | 1200mm | 1200mm |
| Cross travel | 210mm | 210mm |
| Longitudinal travel | 480mm | 480mm |
| Vertical travel | 610mm | 610mm |
| Spindle stroke | 120mm | 120mm |
| Column diameter | 125mm | 125mm |
| Table size | 730×210mm | 730×210mm |
| T-slot of table | 14mm | 14mm |
| Working surface of base | 365×375mm | 365×375mm |
| T-slot of base | 14mm | 14mm |
| Net weigh | 345kg | 345kg |
| Gross weight | 385kg | 385kg |
| Feeding motor | ~ | ~ |
| Coolant pump | 0.04kw | 0.04kw |
| Main motor | 1.1/1.5kw | 1.5kw |
| Dimension of machine | 1060x670x2090mm | 1060x670x2090mm |
| Packing size | 830x760x1880mm | 830x760x1880mm |
| Standard accessories | Optional accessories | |
| Spindle cover | Keyless drill chuck | |
| Depth ruler | BSM 150 vice | |
| LED work lamp | QG 125 milling vice | |
| Tapping function | 58pcs clamping kits | |
| Coolant system | X-axis power feed | |
| Spindle auto-feed | ||
| Drill chuck | ||
| Arbor | ||
| Tools |
