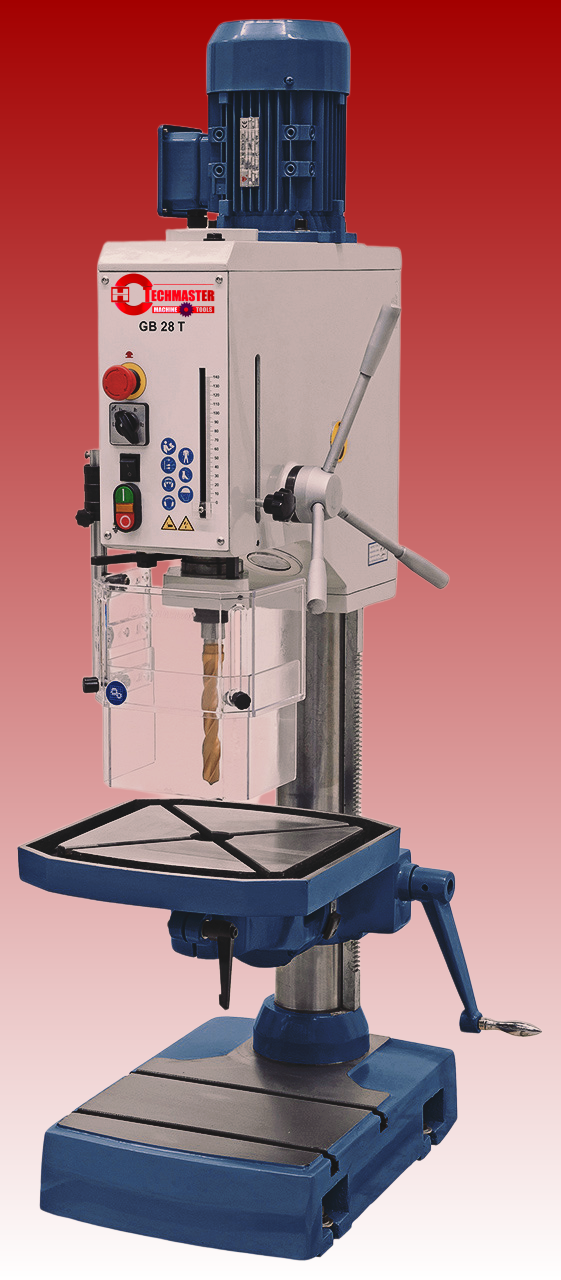

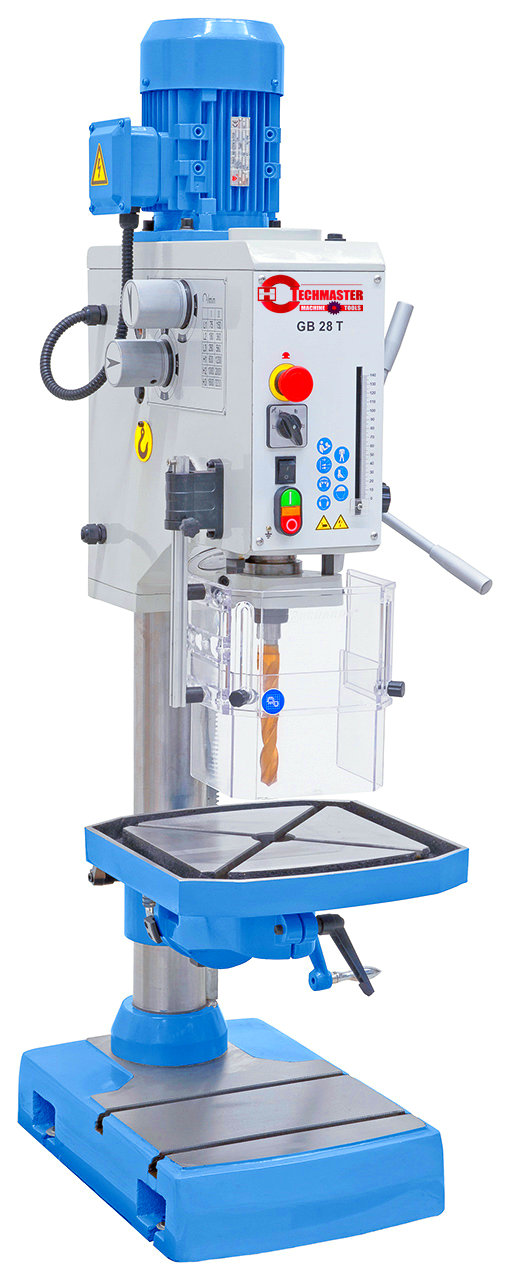

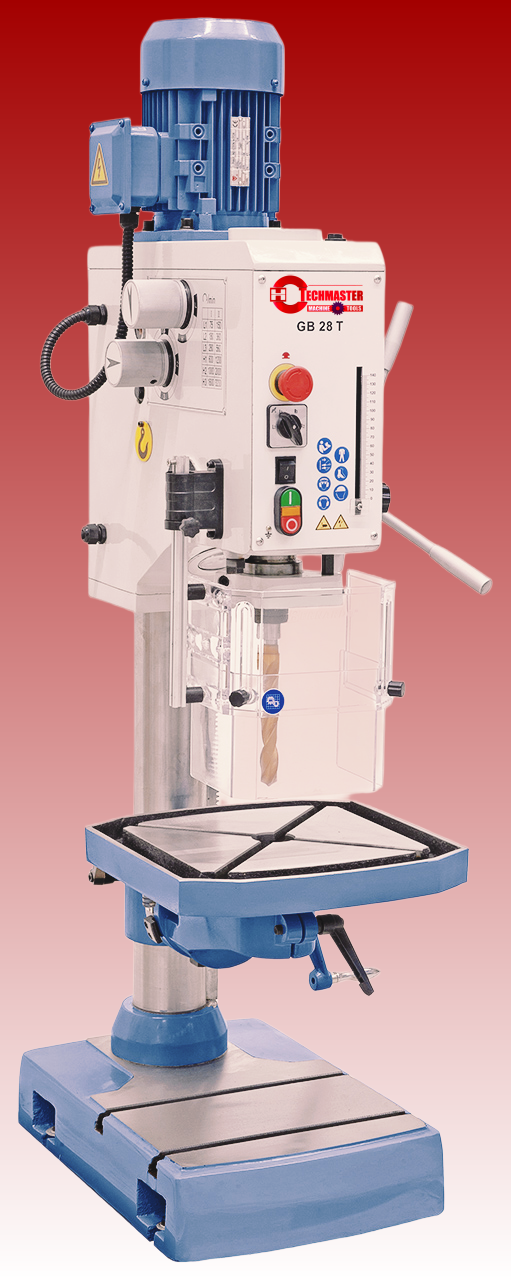

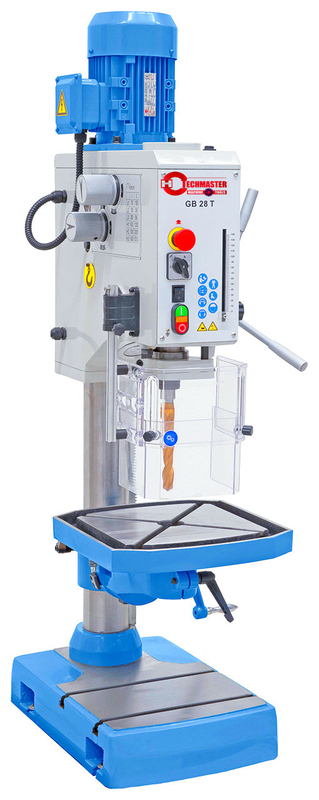

The GB 28 T gearhead - table drilling machine offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.
PRODUCT PROPERTIES
Adjustable drill depth stop includes scale

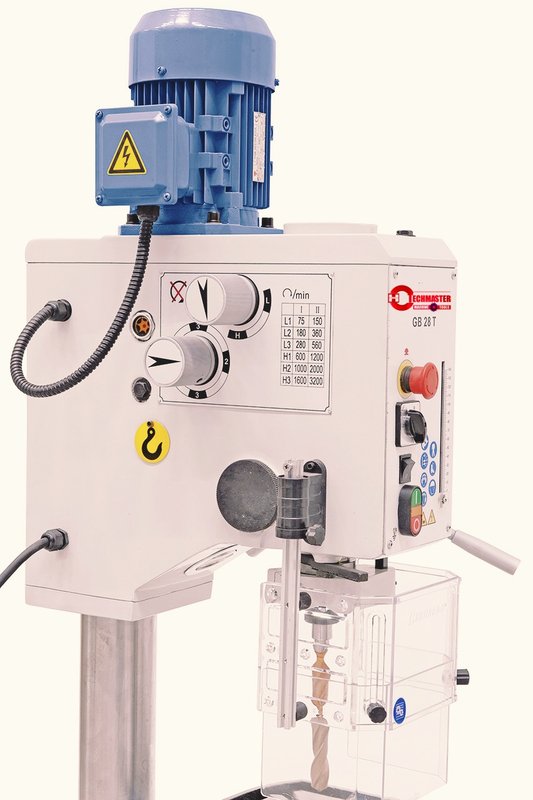

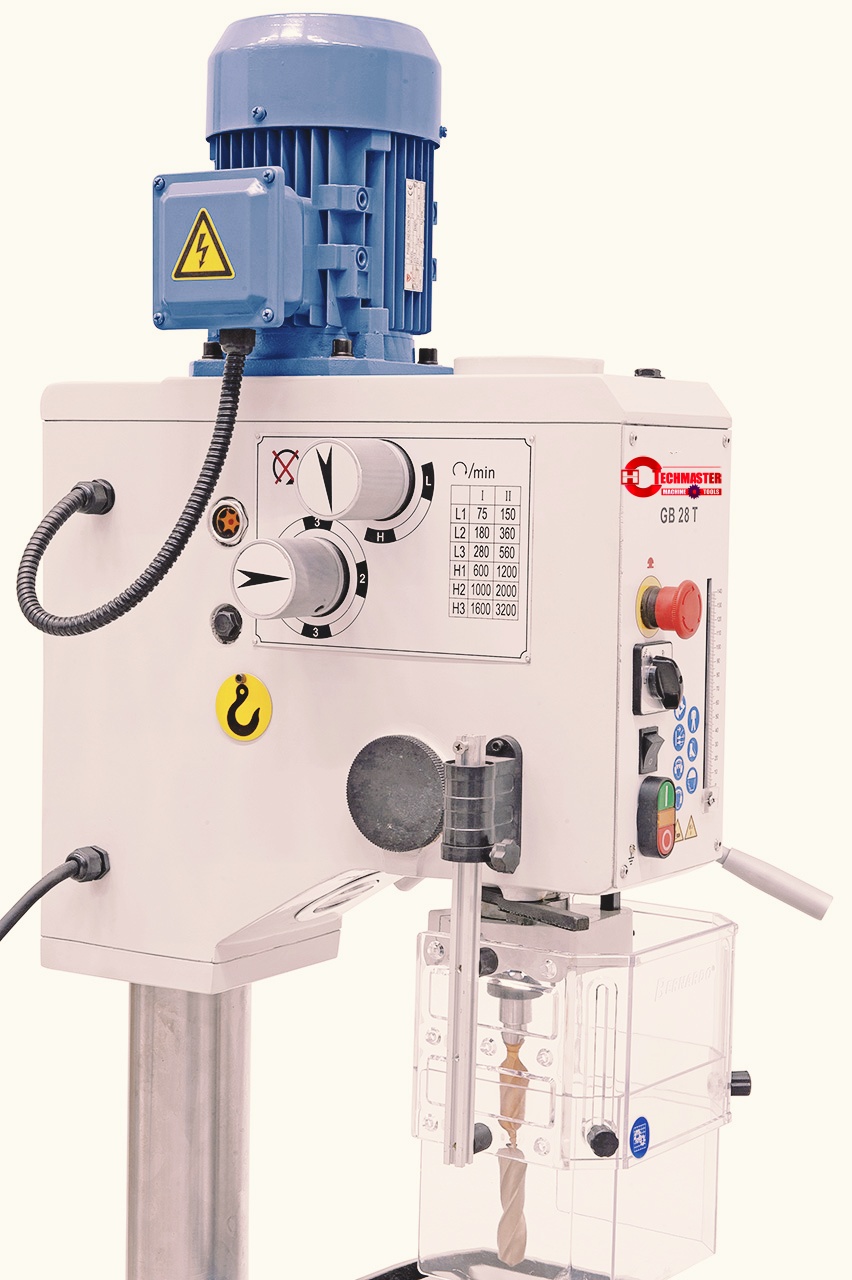

Lever on gear head allows easy speed adjustment
High concentricity - spindle runs on high-quality bearings
Left and right rotation allows thread cutting
Automatic tool release device and LED working light come standard
Hardened, polished gear wheels ensure smooth run
Absolute concentricity ≤ 0,02 mm, measured at spindle
Solid, polished steel column is designed for constant use
Grey, cast-iron table includes T-slots and coolant grooves
Solid work table (360° turnable), tiltable from -45° to +45°
PRODUCT SPECIFICATIONS
Drilling capacity max. 28 mm
Thread cutting max. M12
Drill chuck 1 – 13 mm / B16
Morse taper MT 3
Spindle speeds (12) 75 – 3200 rpm
Distance spindle to column 250 mm
Distance spindle to table max. 355 mm
Distance spindle to base 620 mm
Spindle stroke 140 mm
Column diameter 100 mm
Working surface of base 335 x 335 mm
Table size / T-slot size 375 x 375 mm / 14 mm
Motor power putput S1 100% 0,85 kW / 1,1 kW (400 V)
Motor power input S6 40% 1,1 kW / 1,5 kW (400 V)
Machine dimension (W x D x H)* 375 x 620 x 1430 mm
Weight approx. 200 kg
* without stand
STANDARD
Drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 3 / B 16
Morse taper drill sleeve MT 3 / 2
Automatic tool release device
Left and right turning
Height adjustable protective cover
LED machine light
