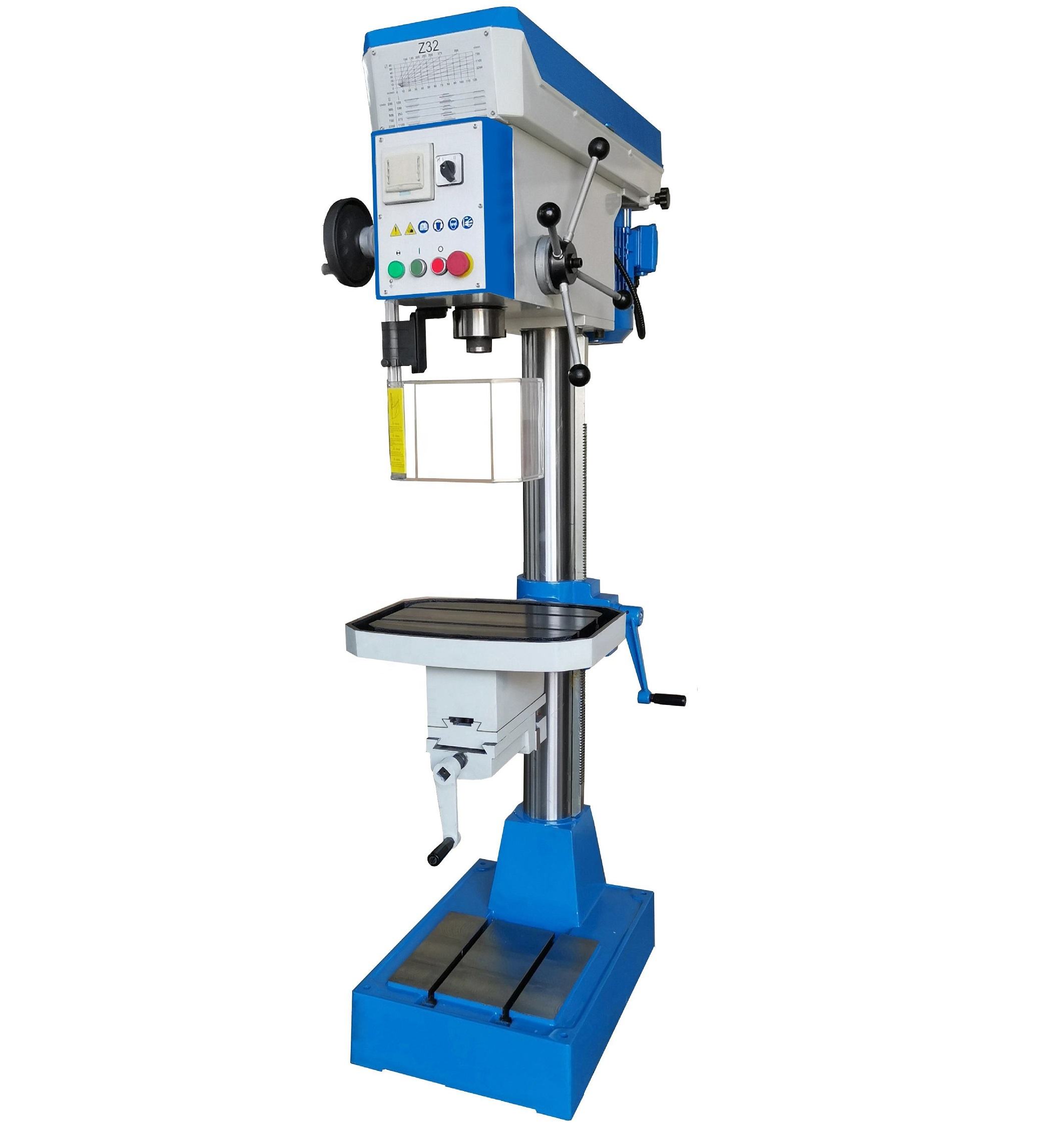

Model | Z32 |
Drilling capacity | 32mm |
Tapping capacity | 24mm |
Spindle taper (option) | MT4 |
Distance from spindle axial to column surface | 300mm |
Working table size | 500mm×380mm |
Dimeter of column | Φ123mm |
Max distance spindle nose to worktable | 50-800mm |
Spindle stroke | 130mm |
Machine motor power | 1.1/1.9kW |
Spindle speed(rpm) | 100-2200 |
Outside dimension | 700×1150×1900mm |
NW | 360kg |
