Feature:

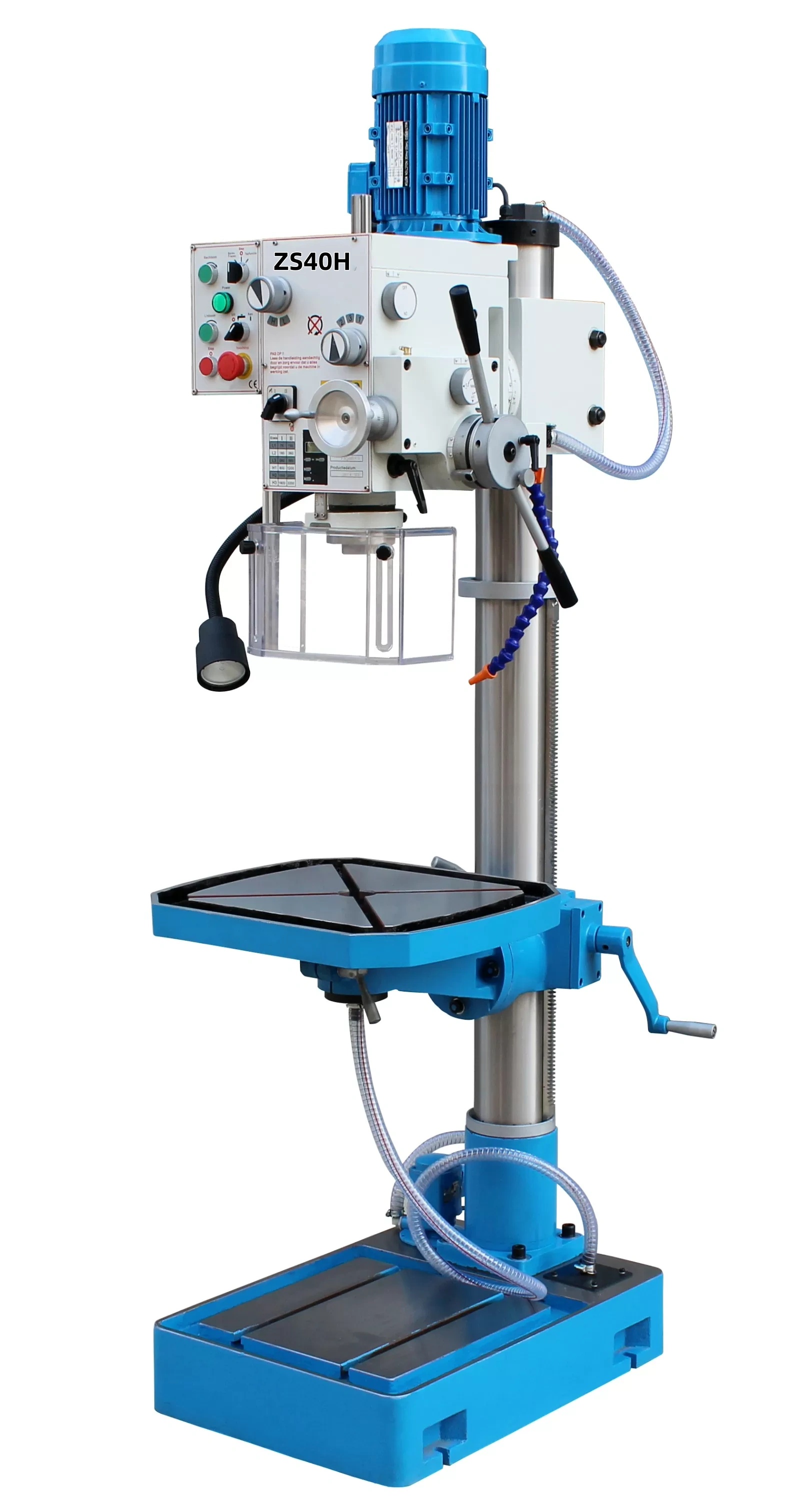

· Industrial gear drive column drilling machine
· Lubrication gear head with quite operation
· Depth ruler easy to read at front panel as standard
· Working table rotate 360° and swivels ±45°
· Rigid constructuion of table and base
· Powerful 2-speed motor
· Mechanical spindle auto-feed, tapping function is available
· 24V controlling wiring
· Rigid construction of base with coolant tank
· Equip with safety spindle guard, LED work lamp, coolant system
| Model No. | ZS40H |
| Drilling capacity | 40mm |
| Tapping capacity | M20 |
| Table capacity | 50kg |
| Spindle taper | MT4 |
| Spindle speeds | 75-3200rpm/12 |
| Spindle feed | 0.10/0.18/0.26 mm/r |
| Dsitance spindle to column | 300mm |
| Dsitance spindle to tabel | 715mm |
| Dsitance spindle to base | 1180mm |
| Spindle stroke | 120mm |
| Column diameter | 115mm |
| Table size | 500×460mm |
| T-slot of table | 14mm |
| Working surface of base | 375×365mm |
| T-slot of base | 14mm |
| Net weigh | 340kg |
| Gross weight | 380kg |
| Feeding motor | ~ |
| Coolant pump | 0.04kw |
| Main motor | 1.1/1.5kw |
| Dimension of machine | 630x700x2050 mm |
| Packing size | 820×760×2250mm |
| Standard accessories | Optional accessories |
| LED work lamp | Keyless drill chuck |
| Spindle cover | BSM 150 vice |
| Coolant system | TQ 100 vice |
| Tapping function | 58pcs clamping kits |
| Automatic spindle feed | |
| Drill chuck | |
| Arbor | |
| Tools |
