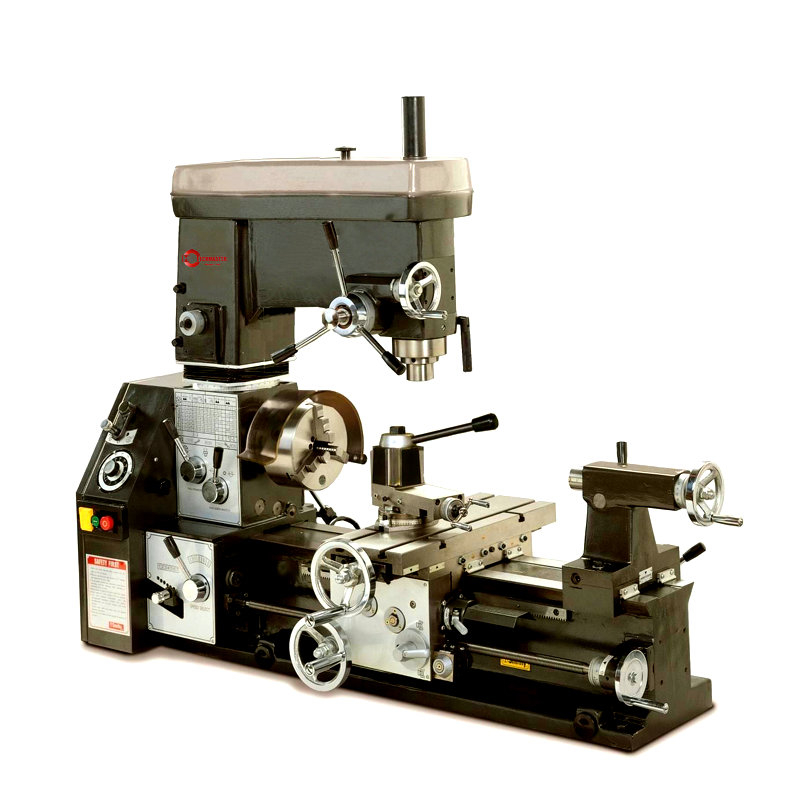

INTRODUCTION:
1.Has the purposes of turning, drilling, milling, boring & thread-cutting
2.DC brushless motor, big torque at low speed, infinitely variable speed
3.Power-driven for table in milling
4.Cam clamping chuck
5.Lengthened table
Features:
1.Has the devices of safety interlock & an overload safety
2.Lengthened drilling/milling box, 360 degree rotation in vertical plane
| SPECIFICATIONS | G1324 | G1340 | ||
| Swing diameter over bed | 330mm | 13″ | 330mm | 13″ |
| Swing diameter over table | 190mm | 7.5″ | 190mm | 7.5″ |
| Distance between centers | 610mm | 24″ | 1000mm | 40″ |
| Spindle bore | 28mm | 1.1″ | 28mm | 1.1″ |
| Spindle speed (infinitely) | 50-3000r/min | 50-3000r/min | ||
| Longitudinal stoke | 510mm | 20″ | 890mm | 35″ |
| Cross stoke | 185mm | 7.3″ | 185mm | 7.3″ |
| Small toolpost stroke | 70mm | 2.75″ | 70mm | 2.75″ |
| Metric pitch/grade | 0.35-6.5mm /24 | 0.35-6.5mm /24 | ||
| Inch pitch/grade | 7-52T.P.I/21 | 7-52T.P.I/21 | ||
| Longitudinal feed/grade | 0.067-0.5mm/r/21 | 0.067-0.5mm/r/21 | ||
| Cross feed/grade | 0.021-0.157mm/r/21 | 0.021-0.157mm/r/21 | ||
| Milling-drilling spindle taper | MT3 | R8 | MT3 | R8 |
| Milling-drilling shaft stroke | 127mm | 5″ | 127mm | 5″ |
| Milling-drilling box stroke | 110mm | 4.33″ | 110mm | 4.33″ |
| Table size | 450x170mm | 17.7″x6.7″ | 450x170mm | 17.7″x6.7″ |
| Drilling dia. | 24mm | 0.95″ | 24mm | 0.95″ |
| Power of motor | 1.1KW | 1.1KW | ||
| N.W./G.W. | 300/350kg | 300/380kg | ||
| Overall Dimensions of machine(L*W*H) | 1325x585x1030mm | 1705x585x1030mm | ||
| Case dimensions of machine(L*W*H) | 1260x570x1100mm | 1640x570x1100mm | ||
| Case dimensions of stand(L*W*H) | left:760x450x410,right:760x 450x350mm | left:760x450x410,right:760x 450x350mm | ||
