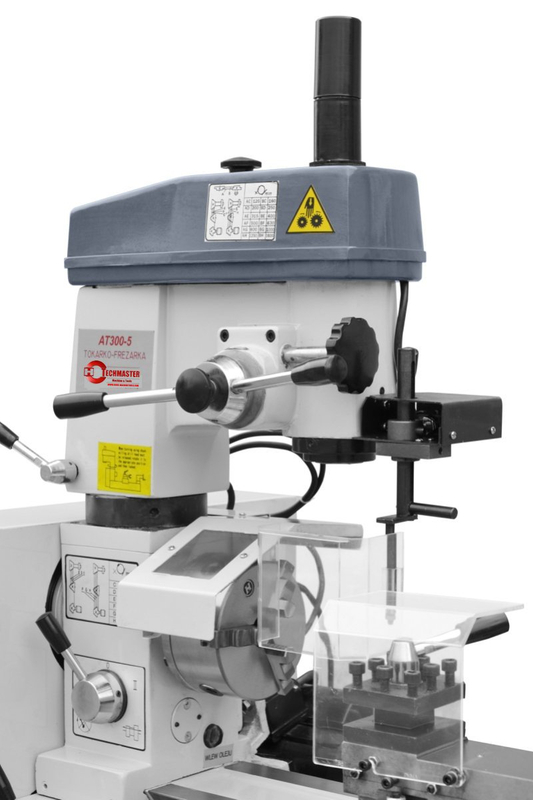

Turning lathe and milling and drilling machin AT300
| Quantity: | |
|---|---|
| SWING CAPACITY OVER BED | 300 mm |
| MAX. WORKING LENGTH | 500 mm |
| SWING CAPACITY AFTER BRIDGE SELECTION | 140 mm |
| SPINDLE BORE | 26 mm |
| SPINDLE TAPER | MT4 |
| METRIC THREAD | 14 |
| PITCH OF TREAD | 0.5-3 mm |
| INCH THREAD | 20 |
| PITCH OF TREAD | 11-40 1/n'' |
| FEED LONGITUDINAL | 0.05-0.5 mm/rotation |
| TAILSTOCK SPINDLE TRAVEL | 50 mm |
| TAILSTOCK SPINDLE TAPER | MT3 |
| NUMBER OF SPINDLE SPEEDS | 6 |
| SPINDLE SPEEDS RANGE | 160-1600 rpm |
| Drilling and milling machine | |
| MAX. DRILLING CAPACITY | 20 mm |
| SPINDLE TAPER DISTANCE FROM TABLE | 240-320 mm |
| SPINDLE DISTANCE FROM COLUMN | 175 mm |
| SWIVEL HEAD | 360° |
| SPINDLE SPEED | (12) 125-1600 rpm |
| MILLING HEAD VERTICAL STROKE | 80 mm |
| MAXIMUM SPINDLE STROKE | 80 mm |
| SPINDLE TAPER | MT3 |
| NET WEIGHT | 200 kg |
| MACHINE DIMENSIONS | 1100x550x740 mm |
| BASE WEIGHT | 75 kg |
| BASE DIMENSIONS | 1050x500x720 mm |
| MOTOR | 550W 220V 50Hz |
