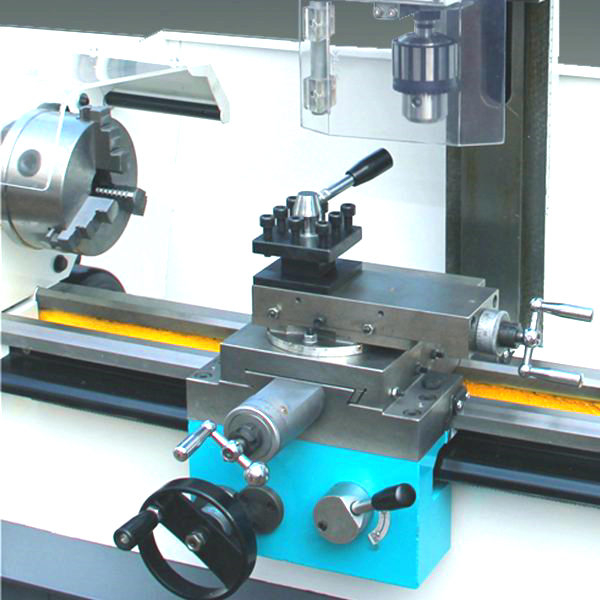

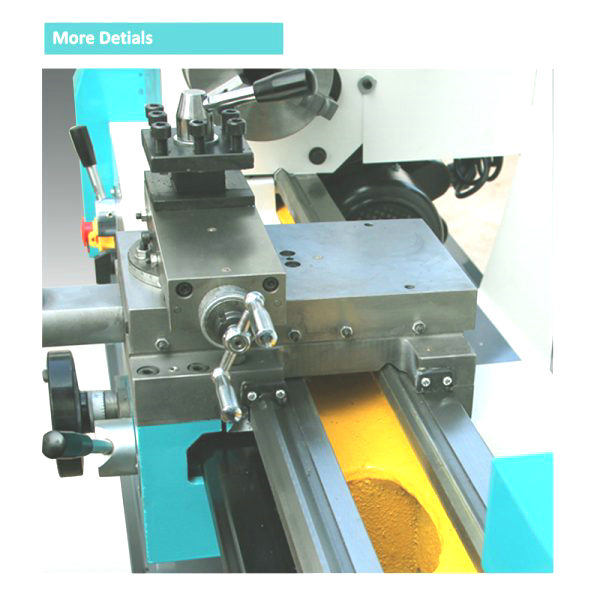

Turning lathe and milling and drilling machin MP250C
| Quantity: | |
|---|---|
Combined lathe-mill-drill in one for samll engineering workshop and hobby
Powered by 2 separate variable speed DC motor for lathe and mill-drill
Low and high range spindle speed from 50-2200rpm
Two “V” precision guideways are hardened and precicison ground
Digital spindle speed read-out for lathe and depth DRO for mill-drill
Mill-drill headstock tilts 45º in left/right
A fine manual downfeed is incorporated for milling operation
Metric or inch thread cutting
Automatic longitudinal feed
2 separate electric motor for lathe and mill-drill
Geared headstock for turning driven by a 550w indution motor
Drilling and milling driven by a variable speed controlled DC motor
Rigid integrated web bed casting construction
| Model | MP250C |
| Swing over bed | 250mm |
| Swing over carriage | 130mm |
| Center distance | 700mm |
| Spindle bore | 26mm |
| Spindle speed | 115-1650rpm |
| Spindle taper | MT 4# |
| Compound slide travel | 50mm |
| Cross slide travel | 120mm |
| Metric thread | 20 / 0.2—3.5 |
| Inch thread | 20 / 56—8TPI |
| Quill of tailstock travel | 50mm |
| Tailstock taper | MT 2# |
| Main motor power | 550w |
| Drilling capacity | 13mm |
| Milling capacity(end/face) | 16/30mm |
| Spindle speed | 100—2500rpm |
| Spindle taper | MT 2# |
| Spindle travel | 180mm |
| Spindle nose to table | 280mm |
| Motor power | 550W |
| Machine weight | 195kg |
| Packing size | 1580x680x880mm |
Standard Accessories
| Self-centering three jaw | 1 set |
| Dead centers MT4 and MT2 | 1 set |
| Metal change gear | 1 set |
| Full size splash guard | 1 set |
| Drilling chuck with taper shanl | 1 sets |
| Drawbar | 1 set |
| Digital deputh ruller | 1 set |
| Necessary tools and tool kit | Numbers |
Specifications
| Model | MP250C |
| Swing over bed | 250mm |
| Swing over carriage | 130mm |
| Center distance | 700mm |
| Spindle bore | 26mm |
| Spindle speed | 115-1650rpm |
| Spindle taper | MT 4# |
| Compound slide travel | 50mm |
| Cross slide travel | 120mm |
| Metric thread | 20 / 0.2—3.5 |
| Inch thread | 20 / 56—8TPI |
| Quill of tailstock travel | 50mm |
| Tailstock taper | MT 2# |
| Main motor power | 550w |
| Drilling capacity | 13mm |
| Milling capacity(end/face) | 16/30mm |
| Spindle speed | 100—2500rpm |
| Spindle taper | MT 2# |
| Spindle travel | 180mm |
| Spindle nose to table | 280mm |
| Motor power | 550W |
| Machine weight | 195kg |
| Packing size | 1580x680x880mm |
Standard Accessories
| Self-centering three jaw | 1 set |
| Dead centers MT4 and MT2 | 1 set |
| Metal change gear | 1 set |
| Full size splash guard | 1 set |
| Drilling chuck with taper shanl | 1 sets |
| Drawbar | 1 set |
| Digital deputh ruller | 1 set |
| Necessary tools and tool kit | Numbers |
Optional Accessories By Extra Cost
