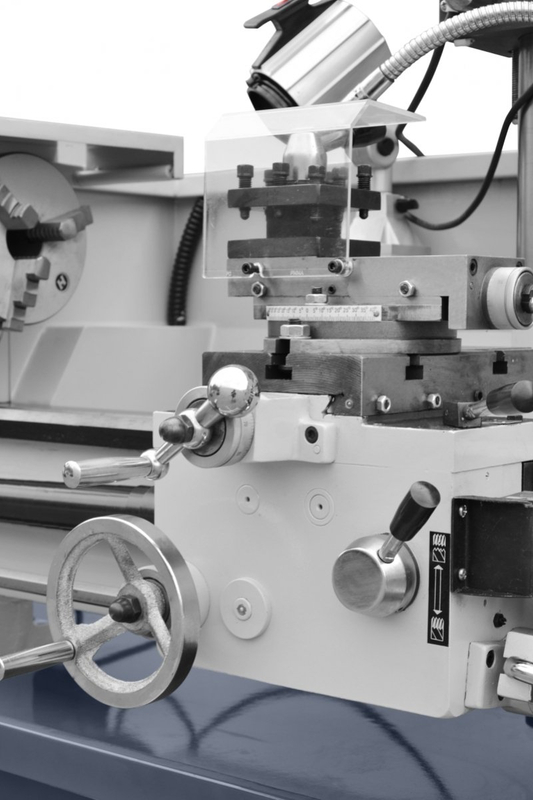

Turning lathe and milling and drilling machin AT320
| Quantity: | |
|---|---|
| SWING CAPACITY OVER BED | 320 mm |
| MAX. WORKING LENGTH | 750 mm |
| SWING CAPACITY AFTER BRIDGE SELECTION | 210 mm |
| SPINDLE BORE | 38 mm |
| SPINDLE TAPER | MT5 |
| CROSS TRAVEL | 160 mm |
| TRAVEL LONGITUDINAL | 100 mm |
| METRIC THREAD | 17 |
| PITCH OF TREAD | 0.5-4 mm |
| INCH THREAD | 20 |
| PITCH OF TREAD | 9-40 1/n'' |
| FEED LONGITUDINAL | 0,135-1,80 mm/rotation |
| FEED CROSS | 0,025-0,34 mm/rotation |
| TAILSTOCK SPINDLE TRAVEL | 70 mm |
| TAILSTOCK SPINDLE TAPER | MT3 |
| NUMBER OF SPINDLE SPEEDS | 6 |
| SPINDLE SPEEDS RANGE | 75-1900 rpm |
| MOTOR POWER | 1.1 kW, 230V 50 Hz |

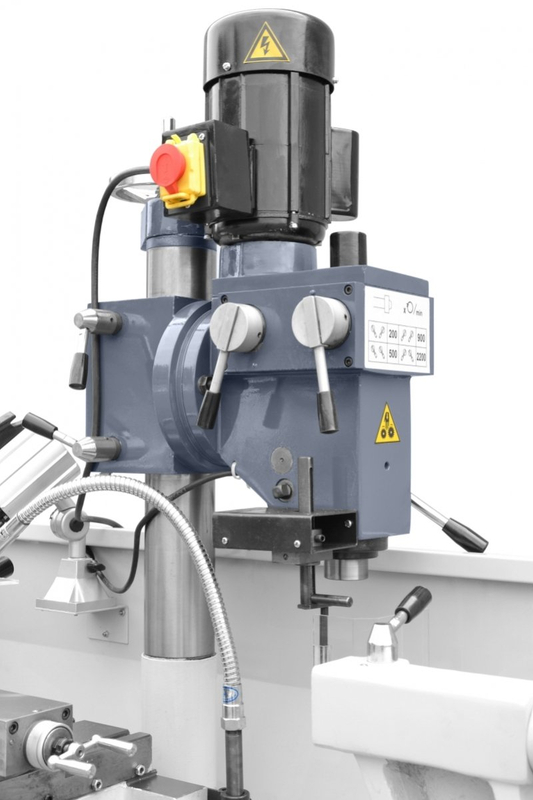

| Drilling and milling machine | |
| SPINDLE BORE | R8 |
| NUMBER OF SPINDLE SPEEDS | 4 |
| SPINDLE SPEEDS RANGE | 240-2700 rpm |
| MAX. DRILLING CAPACITY | 16 mm |
| SWIVEL HEAD | 360° |
| MOTOR POWER | 370 W |
| DIMENSIONS | 1500x635x1200 |
| WEIGHT | 390 kg |
