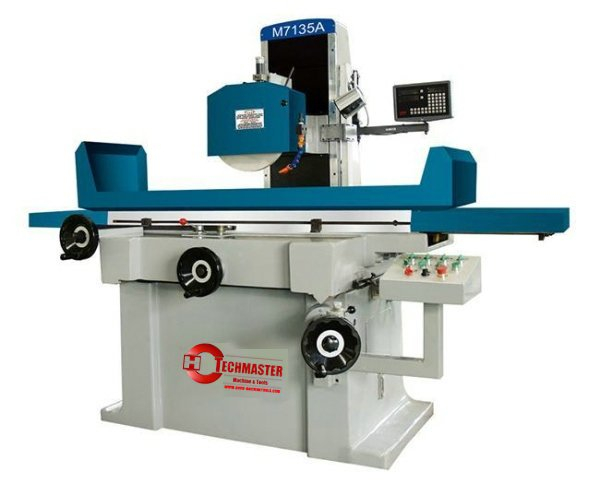

FEATURE:
● Widely useful, grind various surfaces
● Spindle and leadscrew is imported
● Mutiple labyrinth seal is used on spindle quill
● Rolling ball guideway is used on longitudinal direction
● Double V type guideways
● Vertical handwheel is fixed on bed
● Manual oil pump lubricates all moveable parts
MAIN PARAMENTERS
| Related presentations |
| MAIN PARAMENTERS | Description |
| M7135A-3 | M7135A-2 | M7135A-1 | | Size of worktable(L×W×H) | mm | 1000×350×405 | 800×350×405 | 600×350×405 | | Longitudinal table travel | mm | 1020 | 820 | 620 | | Cross table travel | mm | 390 | 390 | 390 | | Max.Distance from the spindle centre to the worktable surface | mm | 580 | 580 | 580 | | Safety load of bench(in max) | kg | 400 | 400 | 360 | | Table size | mm | 1000×350 | 800×350 | 600×350 | | T-slot | mm×n | 18×3 | 18×3 | 18×3 | | Bench speed | m/min | 0-26 | 0-26 | 0-26 | | Cross auto feed | mm | 0.5-20 | 0.5-20 | 0.5-20 | | Cross hadwheel | mm | 0.02/ 4/ | 0.02/ 4/ | 0.02/ 4/ | | Grinding Wheel size(D×W×d) | mm | 350×32×127 | 350×32×127 | 350×32×127 | | Spindle speed | r/min | 1450 | 1450 | 1450 | | Vertical fime adjustment revolution | mm | 0.04 | 0.04 | 0.04 | | Vertical per fine adjustment graduation | mm | 0.001 | 0.001 | 0.001 | | Spindle motor | Kw | 5.5(Y132S-4 B5) | 5.5(Y112M-4 B5) | 5.5(Y112M-4 B5) | | Overall dimensions:(L×W×H) | mm | 2660×1722×1917 | 2260×1722×1917 | 1860×1722×1917 | | Packing size(L×W×H) | mm | 2800×1920×2180 | 2400×1920×2180 | 2000×1920×2180 | | G/N weight | kg | 3900/3500 | 3300/3000 | 2700/2400 | |
