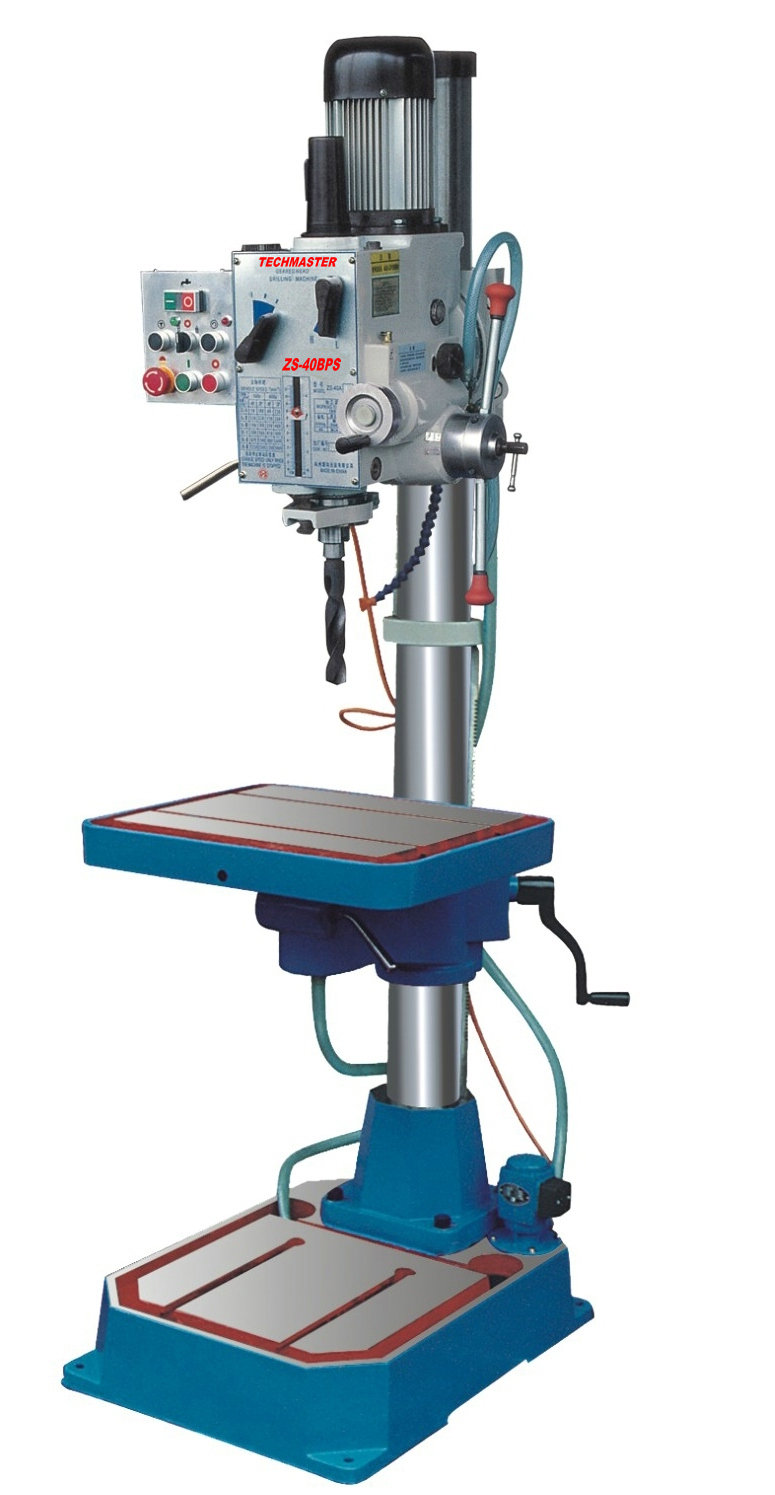

vertical gear head drilling machine ,light type high speed drilling machine ,auto feed drilling machine with CE
Main features :
1. Gear hardened,
2. large driven torque
3. Automatic feeding function
4. With coolant system
Standard Aceessories
Drill chuck, Tap chuck, Taper sleeve, Arbor, Drift, Wrench, Draw bar
Special accessories:
Multi-spindles, Angle vice, Safety guard
Main specifications:
| Model | ZS40BPS | ZS40BPS1 | |
| Max. drilling capacity (mm) | Iron 40 / Steel 32 | ||
| Max. Tapping capacity (mm) | Iron M32/ Steel M24 | ||
| Diameter of column (mm) | 115 | ||
| Spindle travel (mm) | 110 | ||
| Distance spindle axis to column generation line (mm) | 261.5 | ||
| Max. distance spindle nose to table (mm) | 745 | ||
| Max. distance spindle nose to base (mm) | 1245 | ||
| Spindle taper | MT4 or R8 | ||
| Spindle speed range (r/min) | 50～1250 | 50-2500 | |
| Spindle speed steps | 6 | 12 | |
| Spindle feed range (mm/r) | 0.12 0.18 0.25 | ||
| Worktable size (mm) | 540×470 | ||
| Worktable travel (mm) | 515 | ||
| Dimension of base (mm) | 690x520 | ||
| Machine height (mm) | 1760 | ||
| Main motor (KW) | 1.1 (single phase) ; 1.5 ( 3 phase ) | ||
| Coolant motor ( W ) | 40 | ||
| Gross/Net weight (Kg) | 360/320 | ||
| Packing dimension (cm) | 72×74×186 | ||
