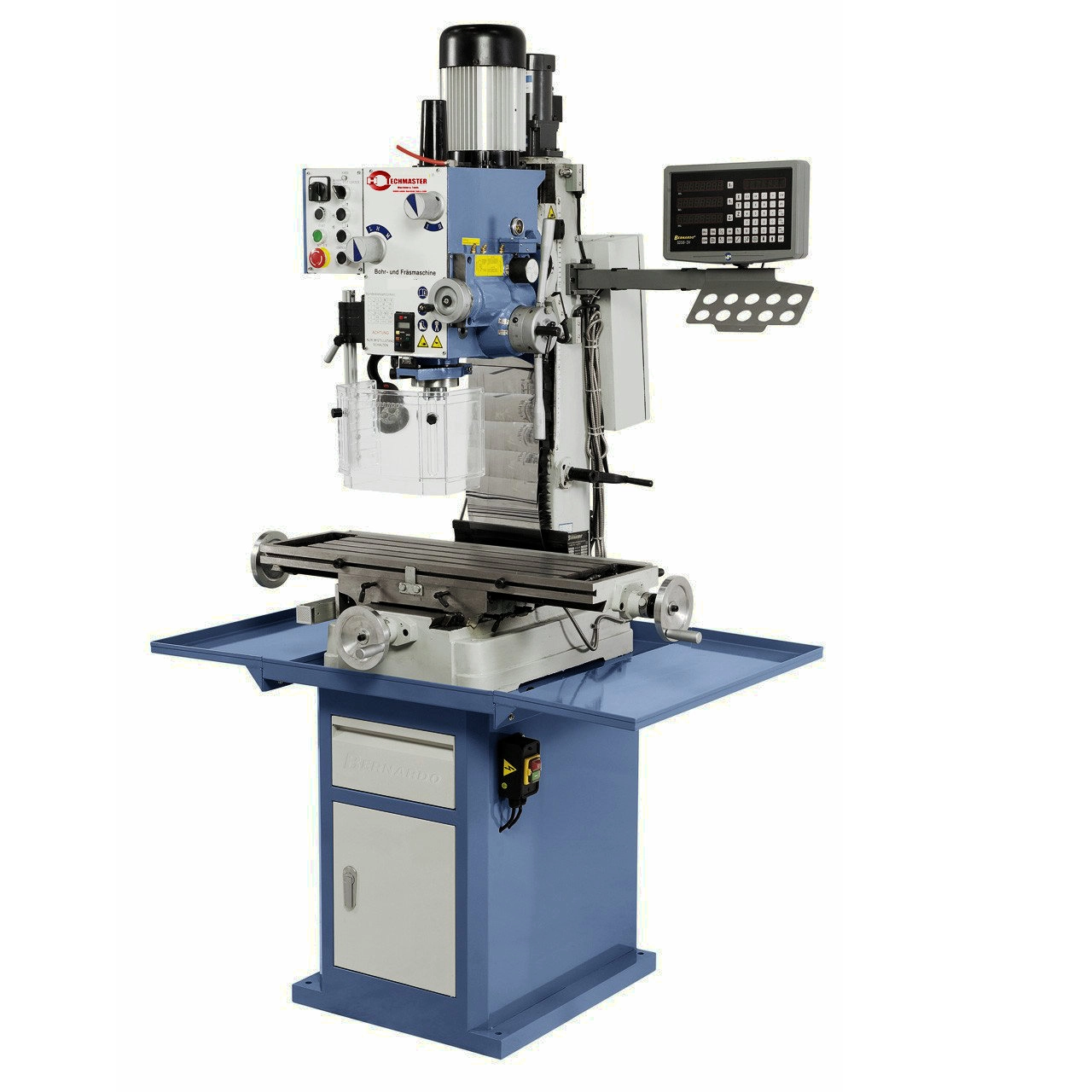

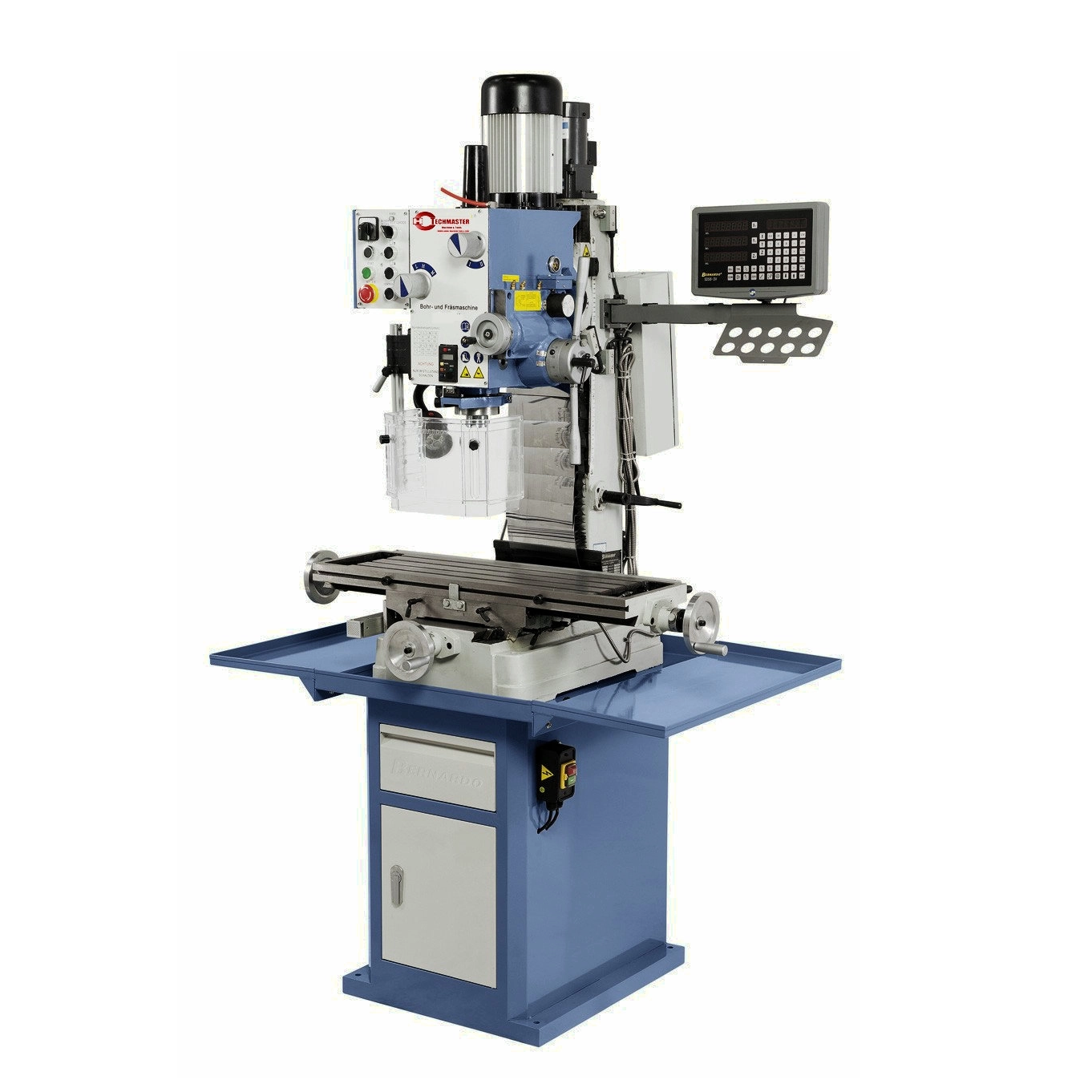

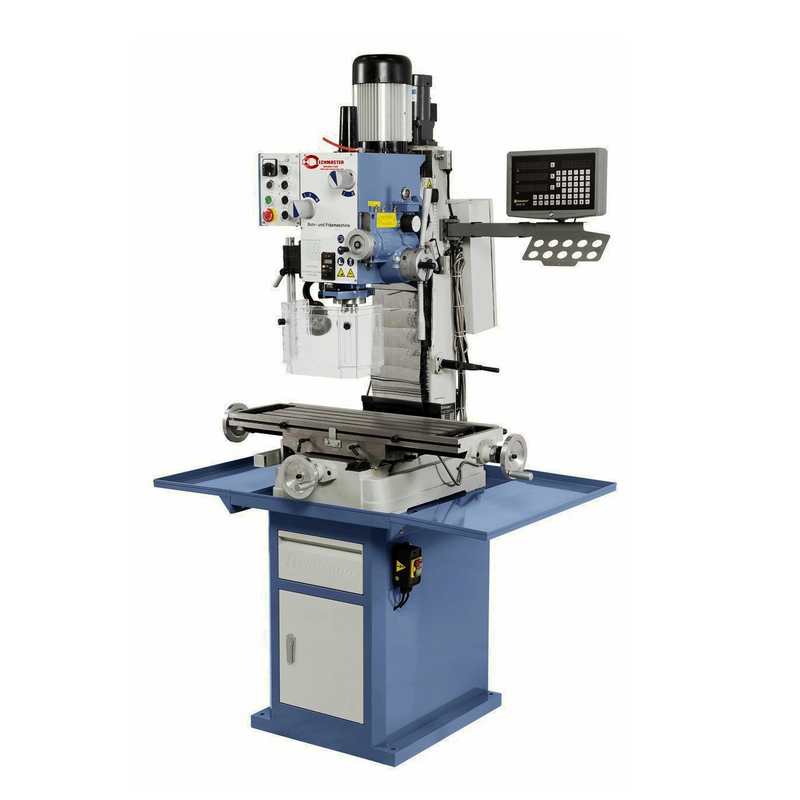

drilling and milling machine is an upgrade of the approved classic J-ZX45AD. Complete with motorized height adjustment of mill head and digital spindle stroke display, this model is very user-friendly. The compact construction and wide range of performance makes this model ideal for model-makers, craftsmen and repair shops.'
Drilling capacity in steel | 32 mm |
Drill capacity in cast iron | 40 mm |
Distance spindle to column | 260 mm |
Spindle speeds | (12) 50 - 2520 rpm |
Spindle taper | MT 4 |
Spindle stroke | 120 mm |
Spindle feed | (3) 0,12 / 0,19 / 0,26 mm/rev. |
Table size / T-slot size | 820 x 240 mm / 14 mm |
Distance spindle to table | 120 - 410 mm |
Travel (x / y) | 540 / 140 mm |
Mill head tiltable | -90° to +90° |
Height adjustment of mill head | 290 mm |
Lifting motor | 90 W |
Motor power output S1 100% | 1,1 / 1,5 kW (400 V) |
Motor power input S6 40% | 1,5 / 2,2 kW (400 V) |
Machine dimension (W x D x H)* | 1150 x 850 x 1450 mm |
Weight approx. | 310 kg |
* without stand
FEATURES
Lifting motor allows convenient height adjustment of mill head
Automatic spindle feed and thread cutting device come standard
Wide range of applications, such as drilling, milling, tapping etc.
Digital display for spindle feed included
Mill head tilts to both sides -90º to +90º
Gear selector switch allows quick and easy speed change
Dovetail guiding in x- and y-axis, adjustable by gibs
Dovetail guiding of gear head maximizes stability
Powerful aluminium 2-speed motor
Solid, large cross table, surface treated
Polished gear wheels, in oil bath, ensure smooth running
Standard accessories:
Automatic spindle feed
Drawbar M 10 with adapter M 16
Drill chuck 1 - 16 mm with MT 4 taper
Morse taper drill sleeve MT 4/3, MT 3/2
Milling head 80 mm with MT 4 taper
Thread cutting device
Lifting motor for mill head
LED machine light
Digital spindle stroke indication
Height adjustable protective cover
Steel cover
Longitudinal scale
Tools
