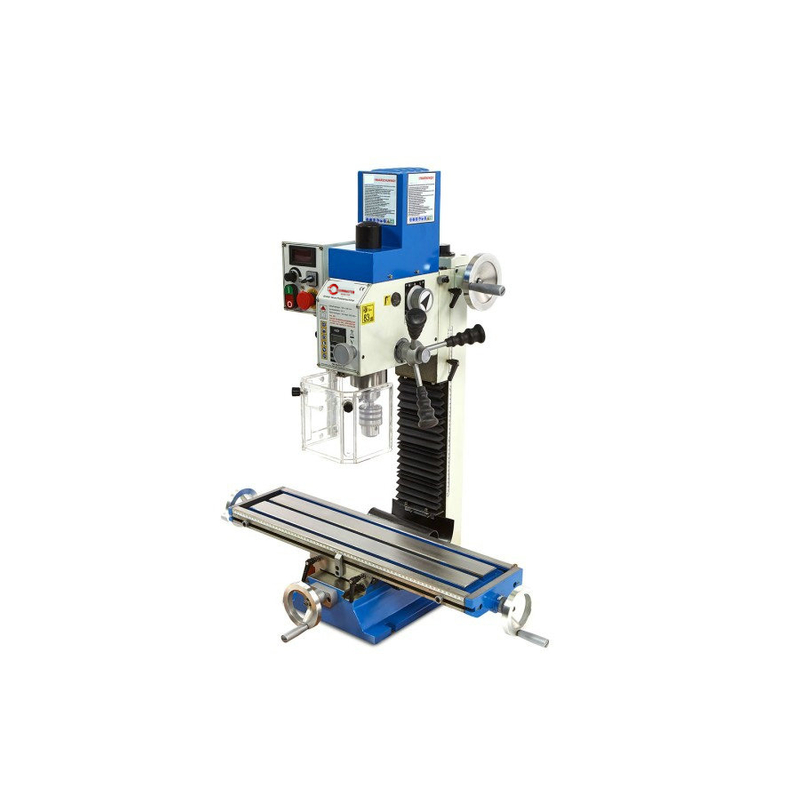

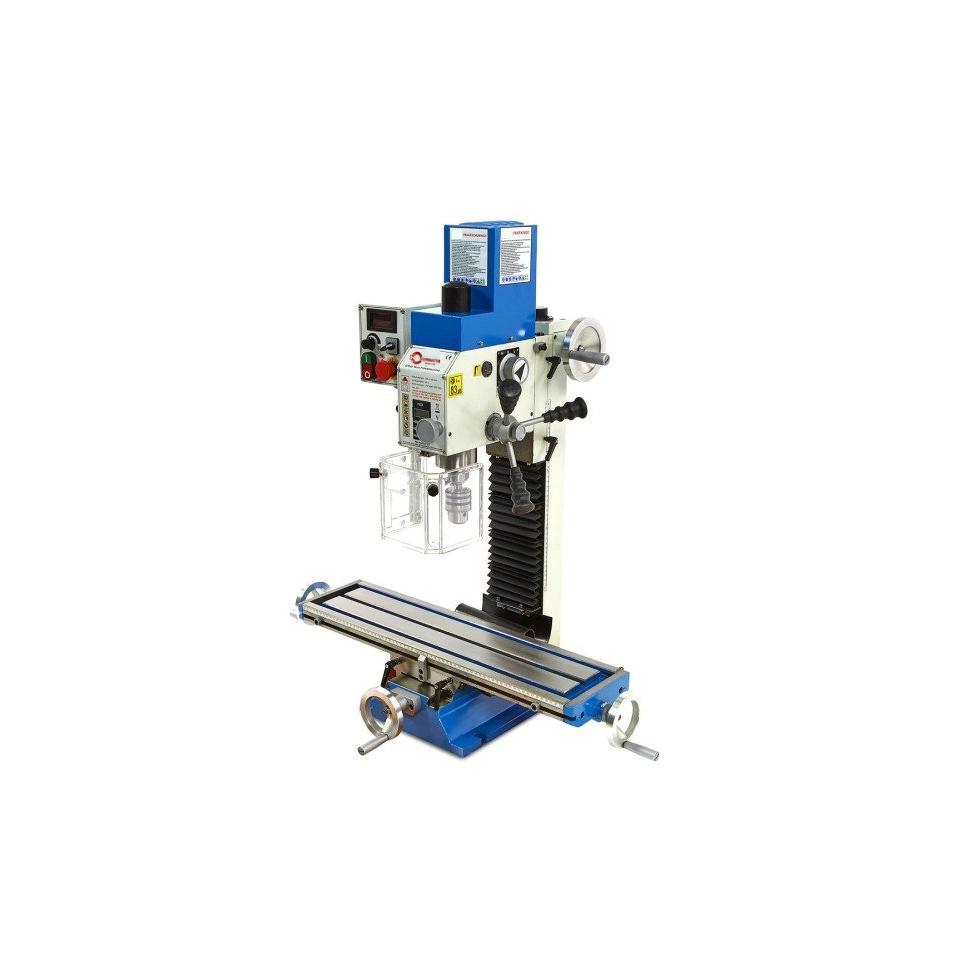

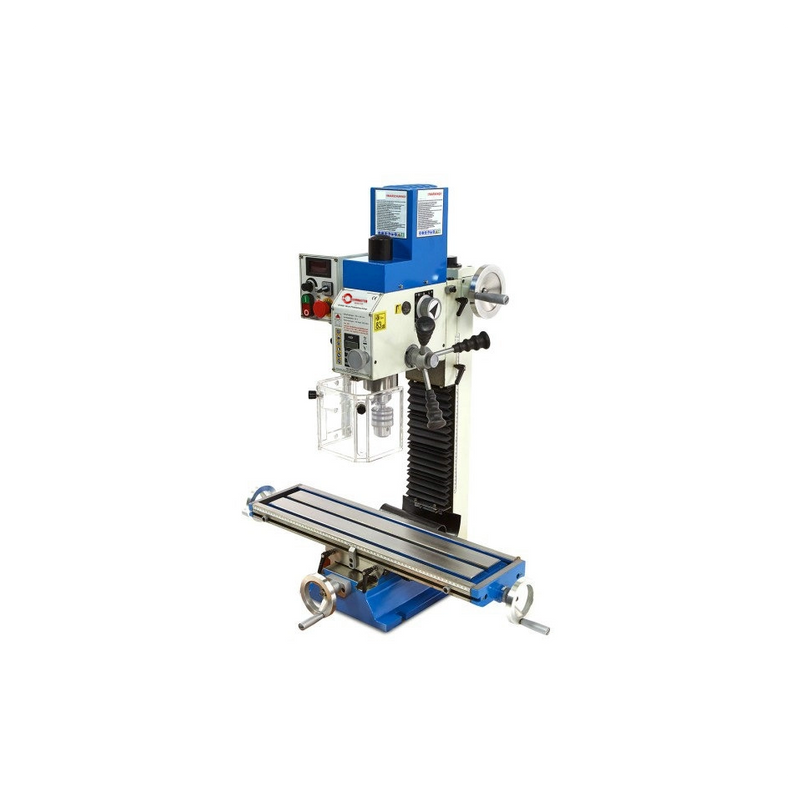

BF 25

  • BF 25

Quantity:
Inquire Add to Basket

CARACTERISTICAS



  • Velocidad variable de 50 – 3.000 rpm
  • Cuenta revoluciones
  • Columna en cola de milano
  • Cabezal inclinable a 90º en ambas direcciones
  • Mandrino de precisión sobre rodamientos de rodillos cónicos
  • Cuñas de ajuste en las guías
  • Motor reversible
  • Visualizador digital de la bajada de la caña
  • Avance rápido de la caña por cremallera y piñón
  • Frenos en el cabezal, columna y guías
  • Cono Morse 3



ACCESORIOS INCLUIDOS



  • Porta-brocas 1-13 mm
  • Caja de herramientas
  • Manual traducido al castellano
  •
Velocidades 50 - 3.000 rpm
Motor 750 W / 230 V
Dimensiones LxAxH 700 x 550 x 910 mm
Peso 150 Kg
Capacidad máxima de taladrado 25 mm
Capacidad máxima de fresado frontal 16 mm
Tamaño de la mesa 500 x 180 mm
Carrera transversal 175 mm
Carrera longitudinal 280 mm
Carrera vertical 320 mm
Carrera de la caña 50 mm
Cono del cabezal MT3
Tamaño de las ranuras en T 12 mm
