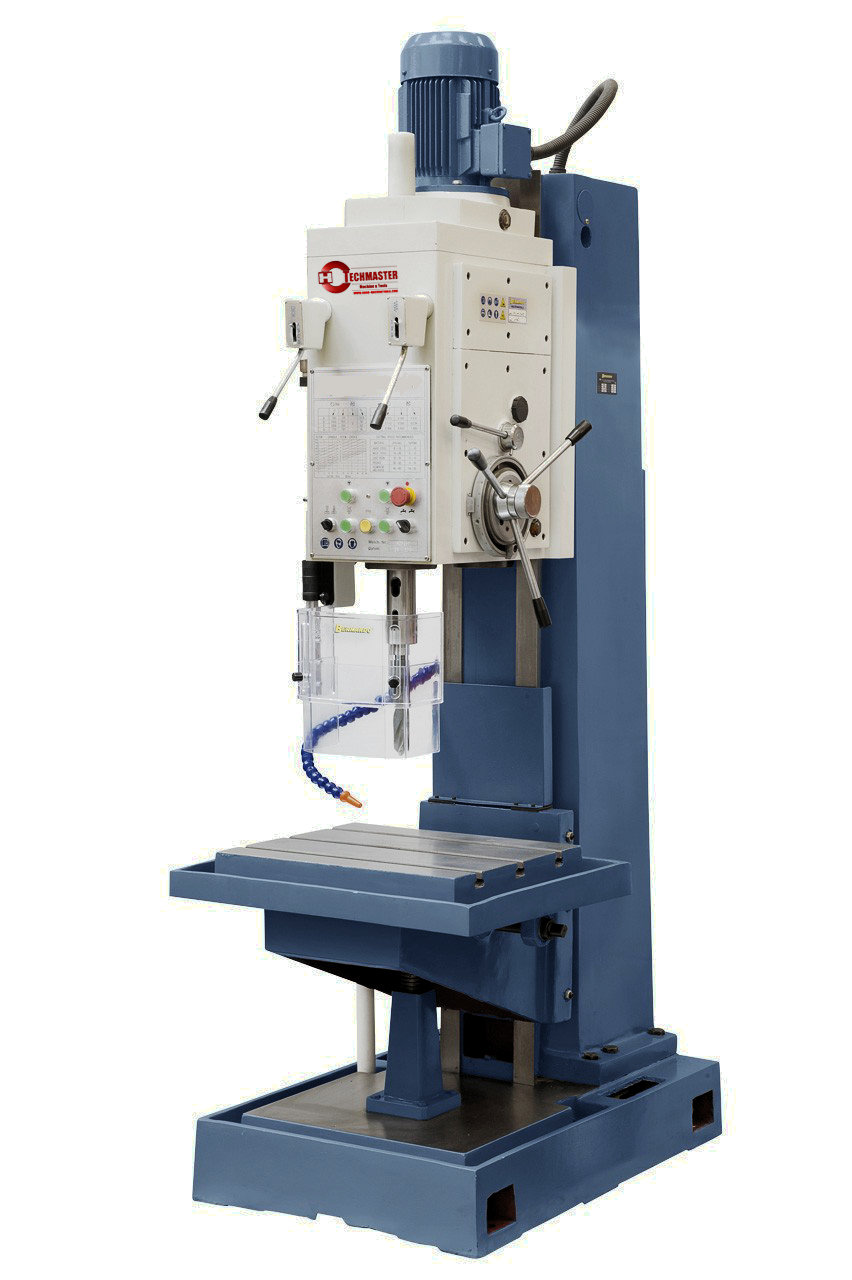

BOX COLUMN DRILL PRESS EUROPE STYLE Z5132A - Buy KEYWORD1 Product on ANHUI FUTURE INTERNATIONAL TRADING CO., LTD

You are here: Home » Products » Drilling Machine » Vertical Drilling Machine » BOX COLUMN DRILL PRESS EUROPE STYLE Z5132A

Product Description

suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.

TECHNISCHE SPEZIFIKATIONEN

Drilling capacity in steel	32 mm
Thread cutting max.	M22
Torque	160 Nm
Travel of drill head	200 mm
Morse taper	MT 4
Spindle speed / steps	50 - 2000 rpm, 9 steps
Feed range	(9) 0,056 - 1,80 mm/rev.
Feeding force	9000 N
Distance spindle to column	280 mm
Distance spindle to table max.	680 mm
Spindle stroke	200 mm
Table size / T-slot size	550 x 400 mm / 14 mm
Table lift	300 mm
Motor power	2,2 kW
Machine dimension (W x D x H)	700 x 960 x 2340 mm
Weight approx.	950 kg

Solid construction of column and base designed for excessive use
Powerful drive motor features high torque and large feed force
Solid grey cast iron construction maximizes table load capacity
Tapping device comes with automatic change of rotation at adjusted drill depth
Convenient control lever allows for quick and easy feed and speed adjustment
Polished gear wheel, in oil bath, ensure smooth operartion
Automatic spindle feed, tapping device and work lamp included in standard equipment
Wide, heavy-duty dovetail guidings feature adjustable gibs
