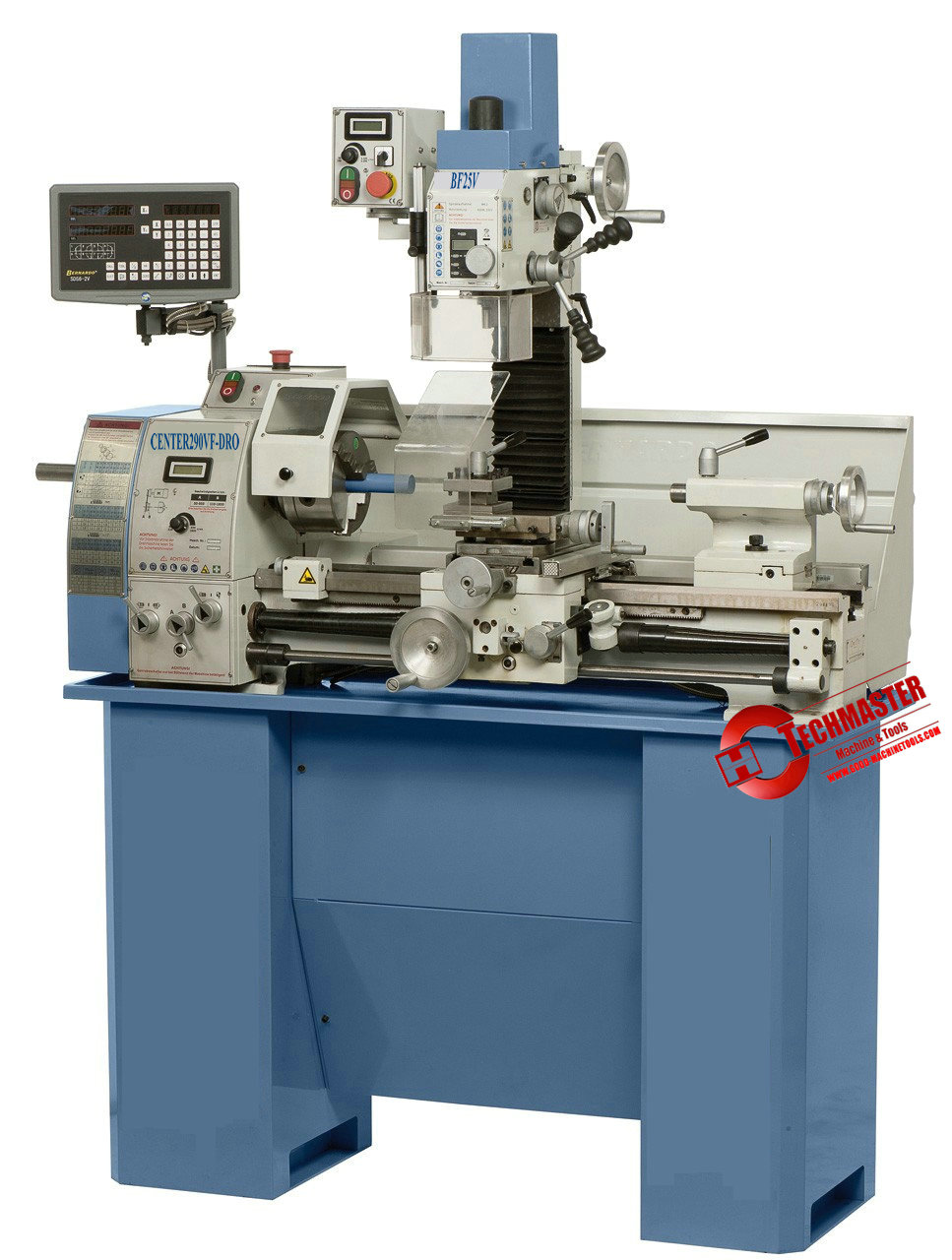

| MODEL | CENTER290VF |
| LATHE | |
| Distance between centers | 700 mm |
| Swing over bed | 280 mm |
| Swing over cross slide | 165 mm |
| Width of bed | 180 mm |
| Taper of spindle bore | MT5 |
| Spindle bore | 38 mm |
| Number of spindle speeds | Variable |
| Range of spindle speeds | 50-2000 rpm |
| Range of longitudinal feeds | 0.07-0.20 mm/r |
| Range of inch threads | 8-56 T.P.I |
| Range of metric threads | 0.4-3.5 mm |
| Top slide travel | 70 mm |
| Cross slide travel | 140 mm |
| Tailstock quill travel | 70 mm |
| Taper of tailstock quill | MT3 |
| Motor | 1.1 kw |
| MILLING/DRILLING | |
| Taper of spindle bore | MT2 |
| Spindle stroke | 50 mm |
| Spindle speed | 50-2250 rpm |
| Max. distance spindle to table | 375 mm |
| Max. distance spindle to column | 185 mm |
| Motor | 600W |
| Packing size | 1400x780x1070 mm |
| Net weight | 230 kg |
