CK6130

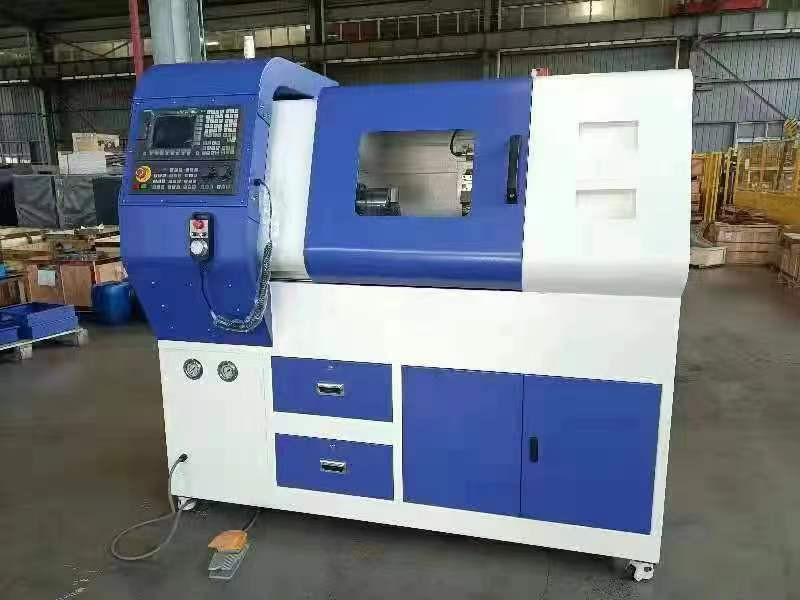

CK6130(Z-axis hard rail, X-axis rail) new CNC lathe

 main specifications and technical parameters

The maximum rotating diameter of workpiece on the bed is 330mm

The maximum rotating diameter of workpiece on the drag plate is 160mm

The distance between the two centers is 550mm

Bed width 150mm

Spindle end type D1-4

Spindle bore taper Morse No. 5

Spindle through hole diameter 38mm

X axis fast moving speed 12000mm/min

Z-axis fast speed 15000mm/min

X-axis feed speed 250mm/min

Z-axis feed speed 500mm/min

X axis maximum torque 1.3N.m

Z-axis maximum torque 2.0N.m

X axis travel 160mm

Z-axis stroke 520mm(4 stations), 490mm(6 stations)

Positioning accuracy ±0.02mm

Repeated positioning accuracy ±0.01mm

Number of tool rest stations 4 stations or 6 stations

The maximum size of the tool bar (width × height) is 16×16mm

Tool rotation accuracy 0.005mm

Tailstock sleeve stroke 95mm (Mohs inner cone No. 2) or 85mm (Mohs inner cone No. 3)

Tail frame sleeve outer diameter 30mm

Tail frame sleeve inner hole taper Morse inner cone No. 2 or Morse inner cone No. 3

Motor power (main motor + Z-axis motor + X-axis motor + pump motor) 1790W

Weight (net/gross) 520/600Kg

Package size (reference) 165×85×160cm
