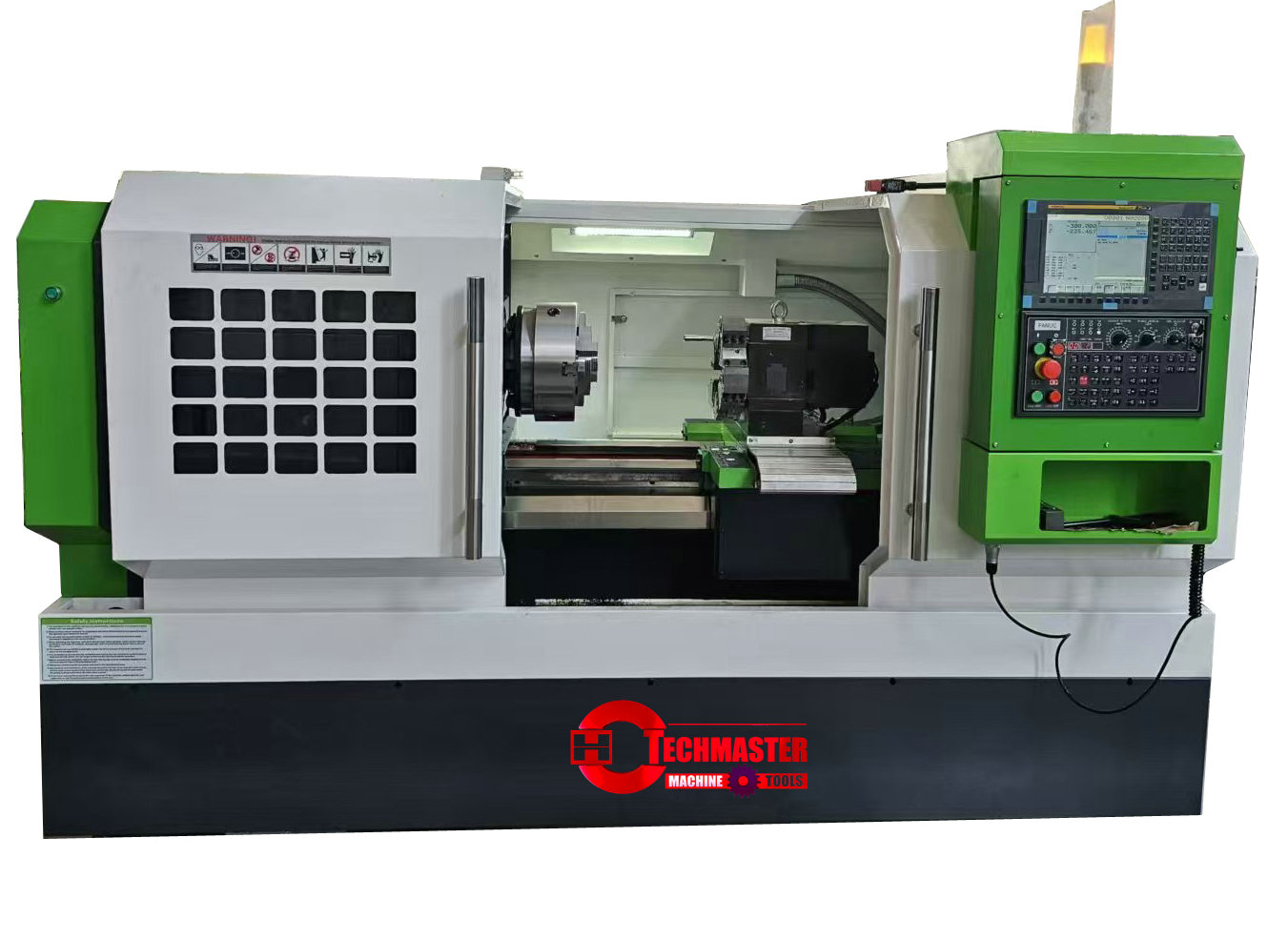

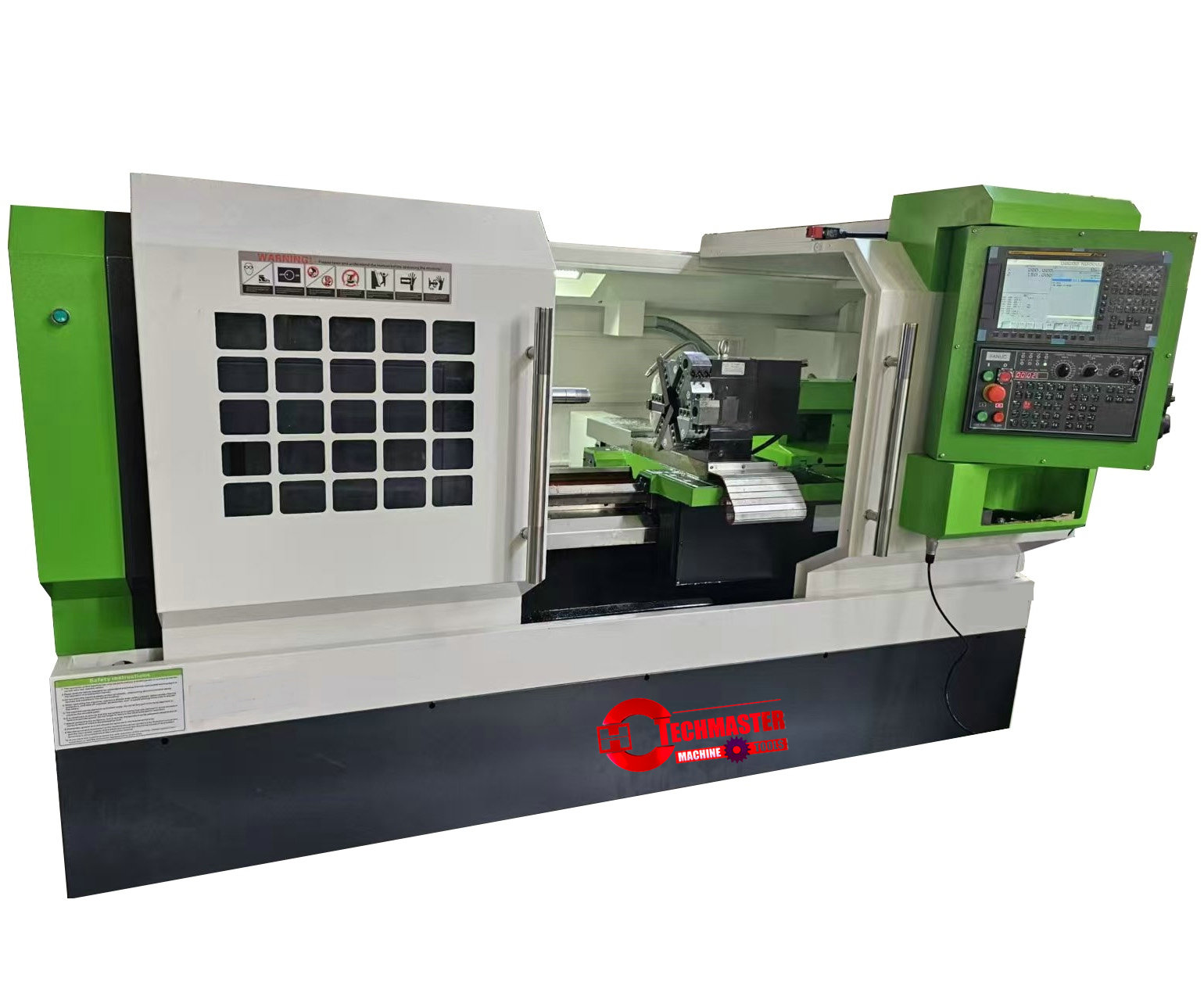

Full enclosure complete, safe and easy operation.
High rigidity casting bed.
High precision spindle bearing.

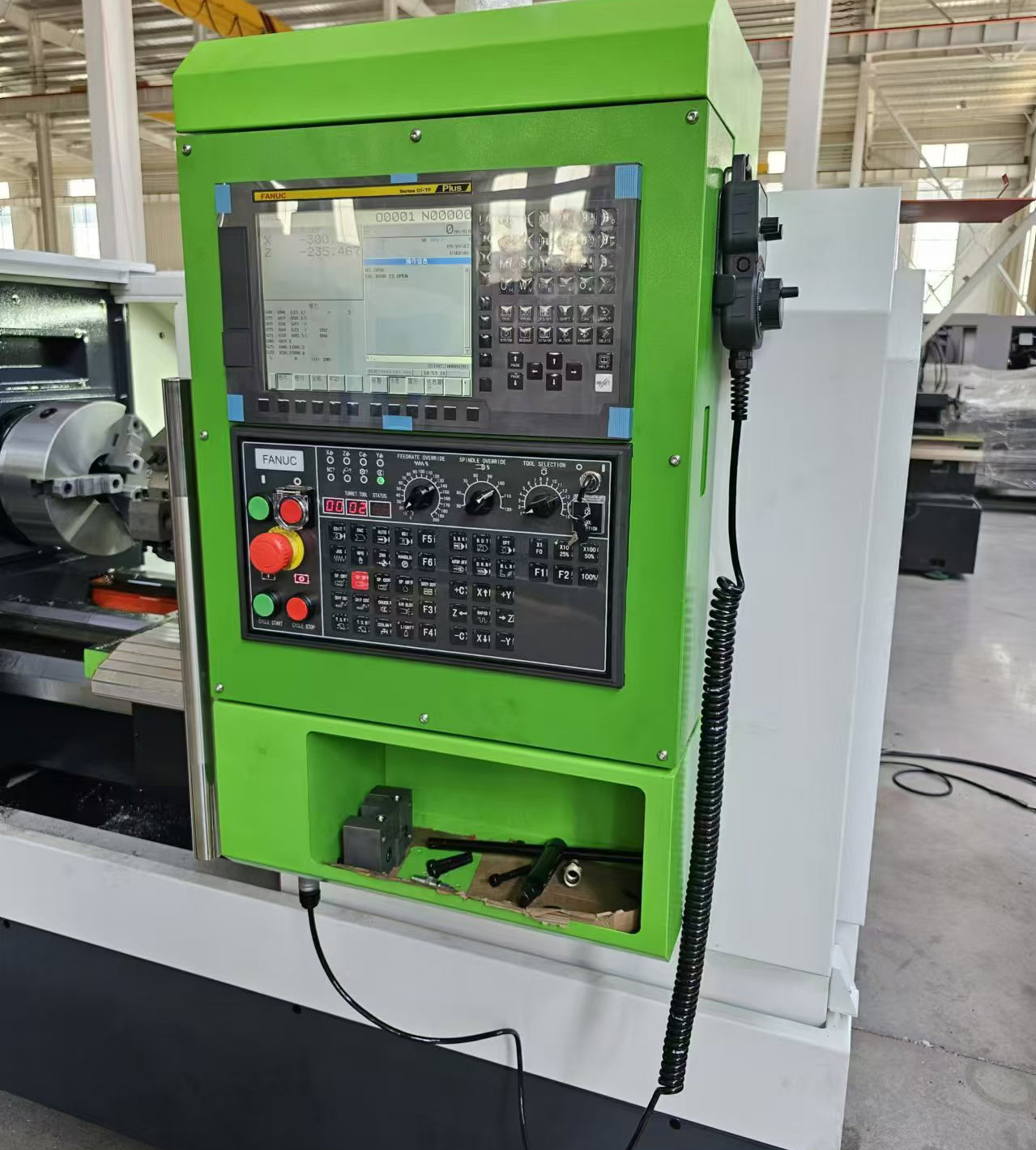

GSK, FANUC ,Siemens system as optional selection.
Metal cnc lathe bed guideways industively hardened.
Specification | CK6150B |
Capacity | |
Chuck size | 10” |
Max. swing dia. over bed | 500mm |
Max. swing dia. over slide | 280mm |
Distance between center | 750/1000/1500/2000mm |
Width of bed | 400mm |
Spindle | |
Spindle speed range | 150-1600rpm |
Spindle bore | Φ82mm |
Max. dia. of through-hole | Φ60mm |
Spindle nose | A2-8(*105mm for A2-11) |
Spindle taper | Φ90mm 1:20,*105mm for 105mm 1:20 |
Axis | |
X axis travel | 350mm |
Z axis travel | 750/1000/1500/2000mm |
X/Z axis rapid traverse | 6/8m/min |

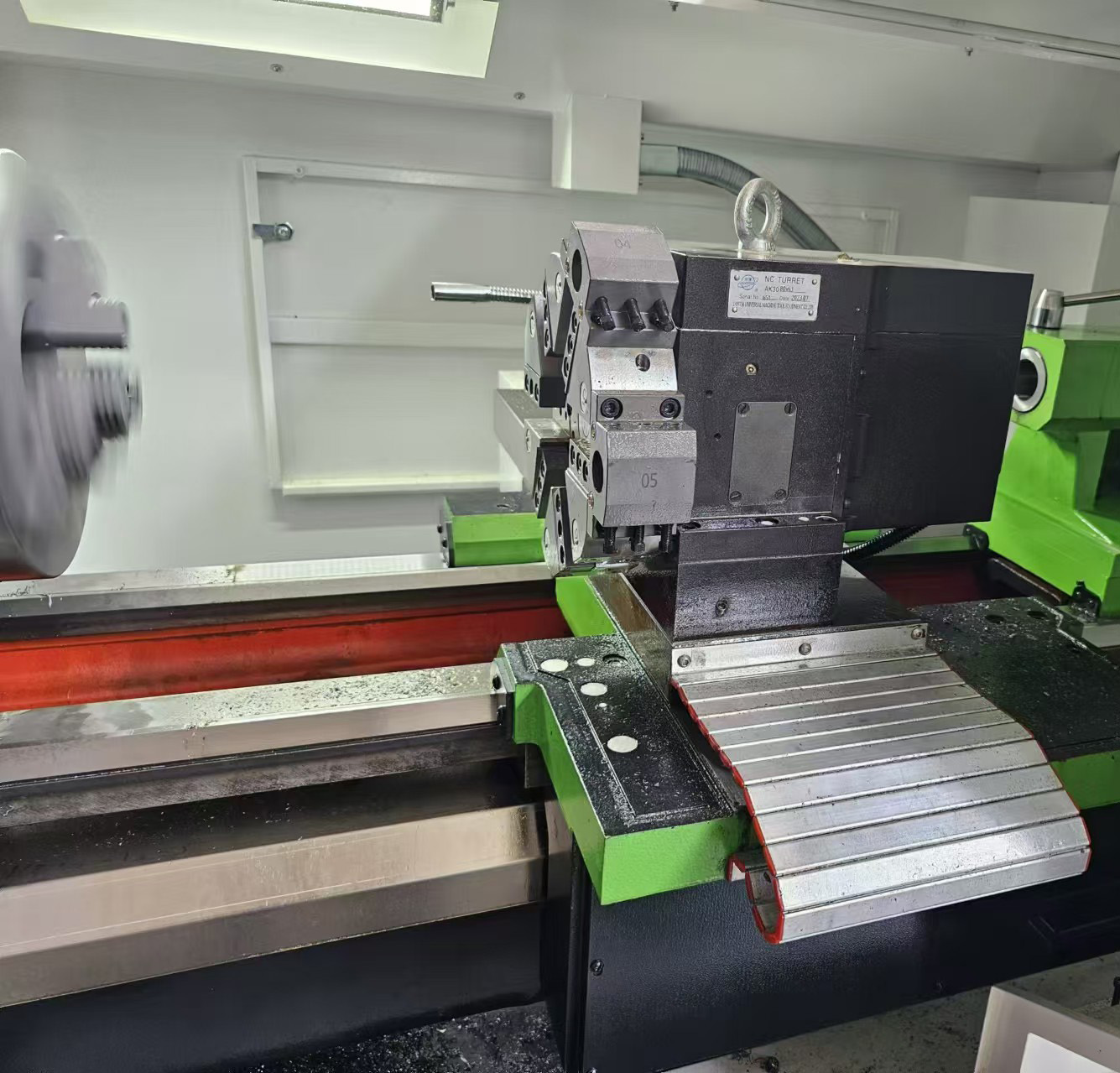

Turret | |
Type | Electrical type |
No. of tool stations | 4,*6,*8 position |
Max. section of tool | 25x25mm |
Tailstock | |
External diameter | Φ80mm |
Travel of tailstock quill | 150mm |
Taper of tailstock quill | MT5 |
Motor | |
Spindle motor power | 7.5kw,*11kw |
Coolant pump power | 180w(120w) |
Machine Dimensions | |
Overal dimension (L×W×H) | 2420/2860/3110/3620x1600x1750mm |
Packing size(L×W×H) | 2600/3050/3350/3850x1800x2220mm |
N.w | 2750/3100/3350/3550kg |
G.w | 3000/3450/3750/3950kg |
Standard accessories
1.3-jaw chuck and wrench
2.Allen wrench
3.Electrical tool post 4 station
4.Cooling system
5.Manual lubricating system
6.Working lamp
7.Siemens CNC controller system
8.Steel stand
Optional accessories
1.6 station toolpost
2.Pneumatic chuck
3.Hydraulic chuck
4.Controller system GSK, Fanuc
5.Auto-lubricating system
