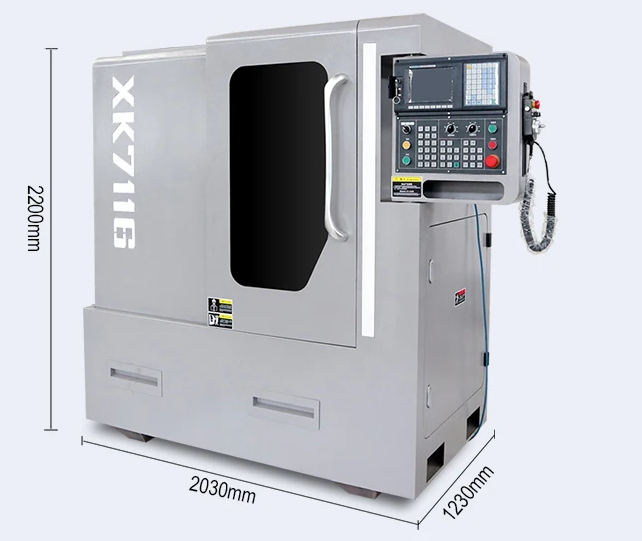

Specification | XK7116 |
X axis travel | 350mm |
Y axis travel | 160mm |
Z axis travel | 400mm |
Spindle nose to table distance | 476.4mm |
Spindle center to column distance | 161mm |

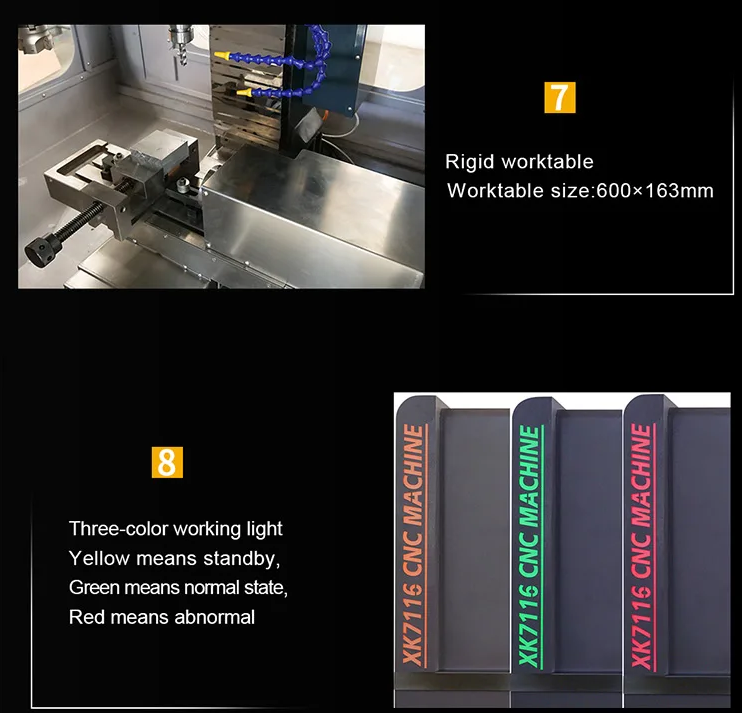

Worktable size | 600X163mm |
Main motor | 3KW |
Spindle speed | 18000r/min |
Coolant system | liuquid cooling |
Change tool way | Pnumetic |

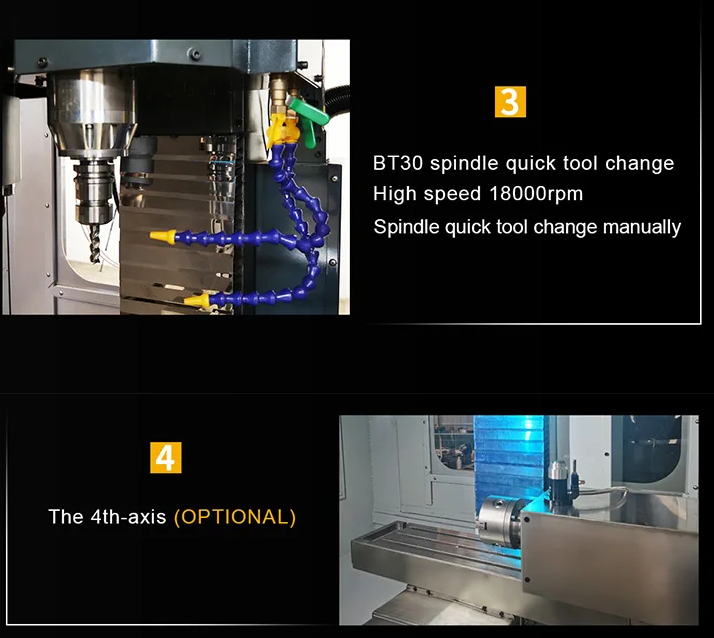

Spindle taper | BT30 |
ATC Type | Umbrella type |

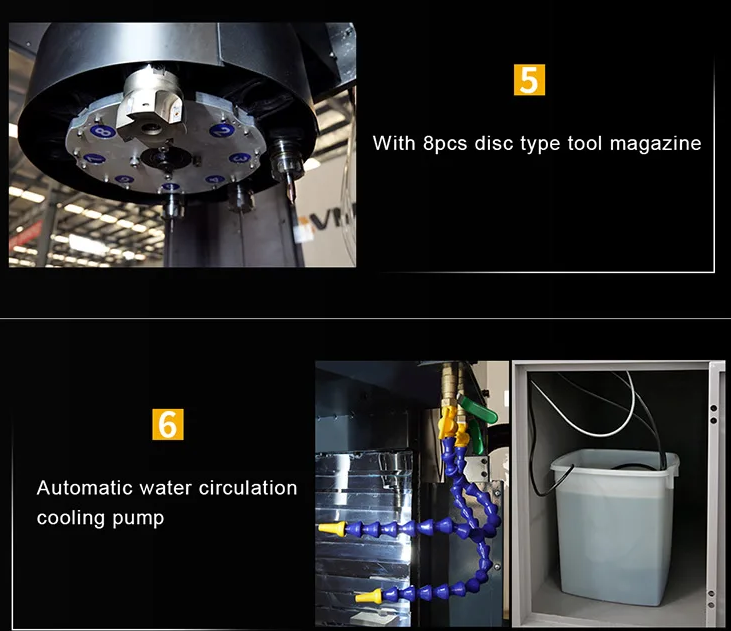

Capacity of ATC | 8T |
Air compressor pressure | 12L |
Lubricating pump capacity | 1L |
Working light | 10W |
Cooling pump | 40W |

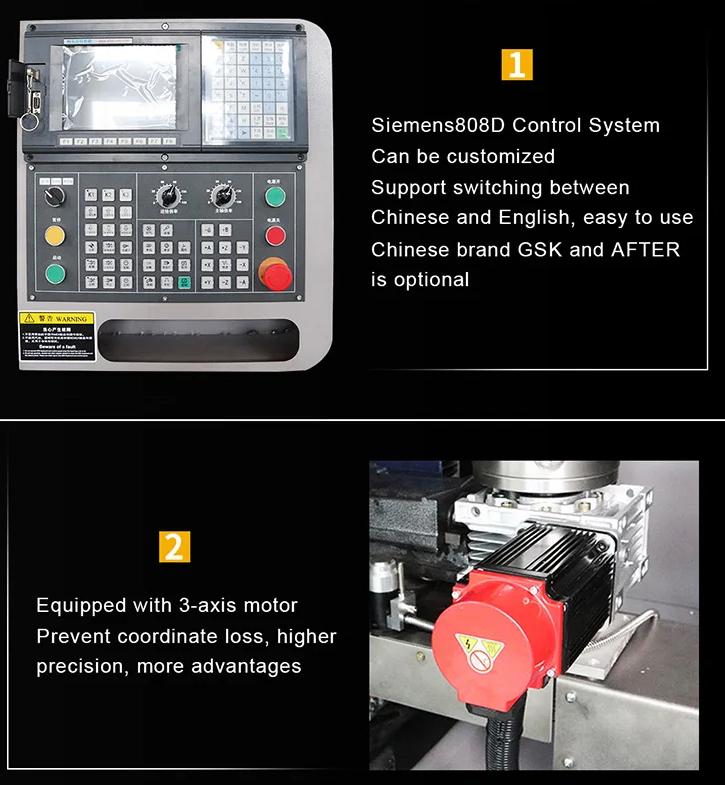

Controller system | after1500MDC-4 |
XY axis servo motor torque | 2.4N.M |
Z axis servo motor torque | 4N.M |
XYZ fast moving speed. | 8 |
XY Linear guideway | （Taiwan HIWIN）15mm |
Z linear guideway | （Taiwan HIWIN）20mm |
X axis ball leadscrew | （Taiwan TBI）1605 |
YZ axis ball leadscrew | （Taiwan TBI）2005 |
