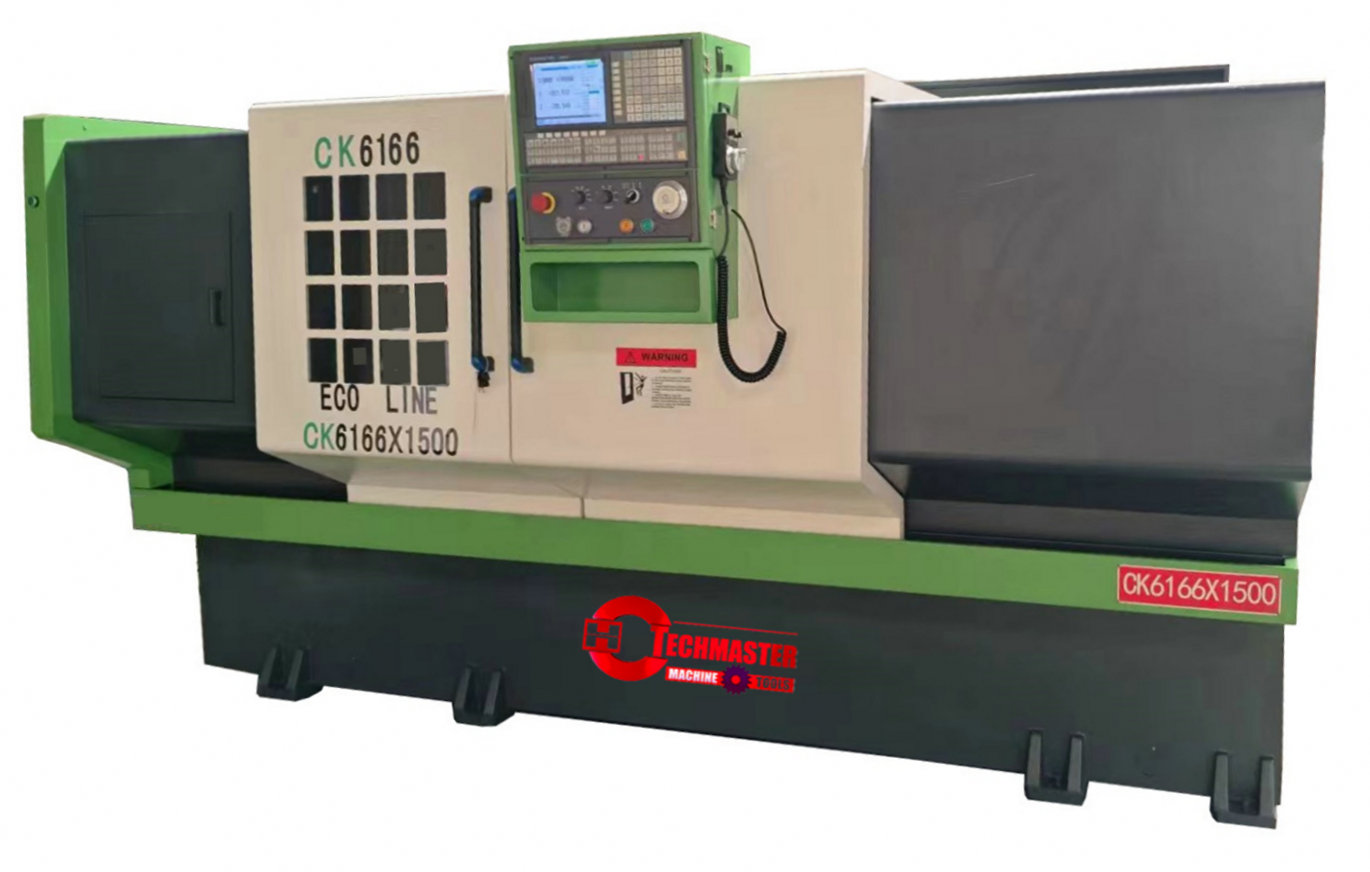

CNC lathe machine CK6166 CK6180
Description
CK6166/CK6180 is a heavy duty cnc lathe that offers the ideal choice for handling heavy machining tasks.
It features a robust and durable structure, making it suitable for various large-scale workpiece machining needs.
With advanced CNC technology and a high-performance drive system,heavy duty cnc lathe CK6166/CK6180 achieves high precision and efficiency in machining operations.
Equipped with a stable and reliable spindle system and a rigid bed, it can withstand high loads and frequent cutting, ensuring consistent machining quality.
Whether in aerospace, energy, automotive manufacturing, or heavy industries,CK6166/CK6180 excels in handling a wide range of heavy machining tasks.
By choosing CK6166/CK6180, you can expect outstanding machining performance and reliable results, enhancing your production capabilities and competitiveness.

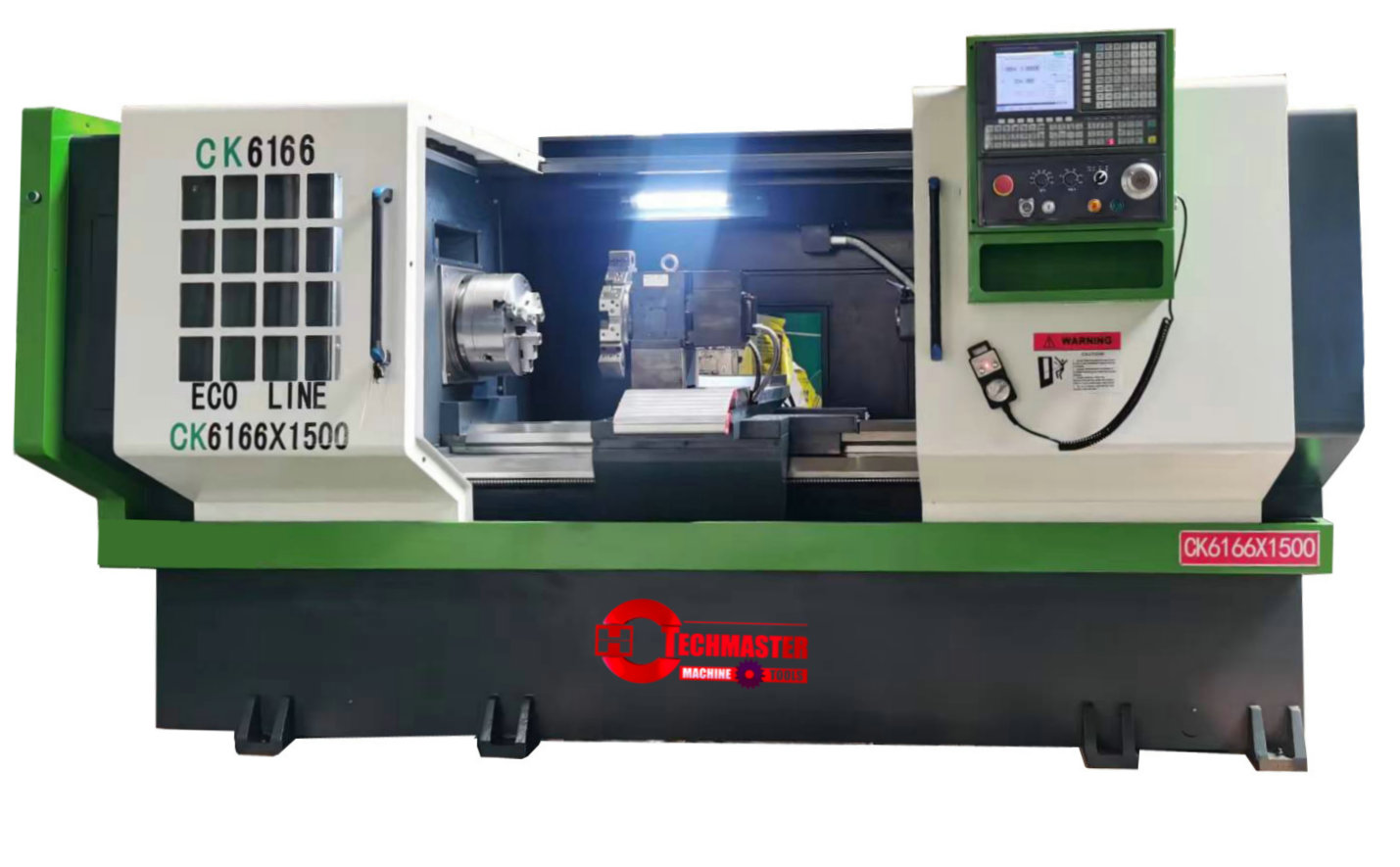

CNC lathe machine CK6166 CK6180
TECHINICAL PARAMETER | UNIT | CK6166 | CK6180 |
|
Capacity | Max. swing over bed | mm | Φ660 | φ400 |
|
Max. swing over carriage | mm | Φ380 | Φ540 |
|
Max. cutting legth | mm | 1500/2000/3000 |
|
Rail width | Rail width | mm | 460 | 460 |
|
Spindle | Spindle nose |
| A2-11 | A2-11 |
|
Spindle bore | mm | Φ105 | Φ105 |
|
Taper of spindle bore |
| 1：20 | 1：20 |
|
Chunk | ” | 12" | 12" |
|
Range of spindle speed | rpm | 3 STeps 30-1000 100-500 150-1000 |
|
Feeds | X a-xis travel | mm | 350 | 405 |
|
Z a-xis travel |
| 1500/2000/3000 |
|
X/Z rapid speed | m/min | 4/7 | 4/7 |
|
Carriage | Station of tool carrir |
| 6 or 8 | 6 or 8 |
|
Max.section of tool | mm | 25*25 | 25*25 |
|
Tailstock | Stroke of tailstock sleeve | mm | 245 | 245 |
|
Diameter of tailstock sleeve |
| Φ102 | Φ102 |
|
Motor | Main motor power | KW | 11 | 11 |
|
Cooling motor power | W | 480 | 480 |
|
Dimension | Overall diemensionsL×W×H | cm | 340 /350/440x200x240 |
Weight | Net weight | KG | 4200/4600/5200 |
Gross weight | KG | 4700 /5200/5800
|
