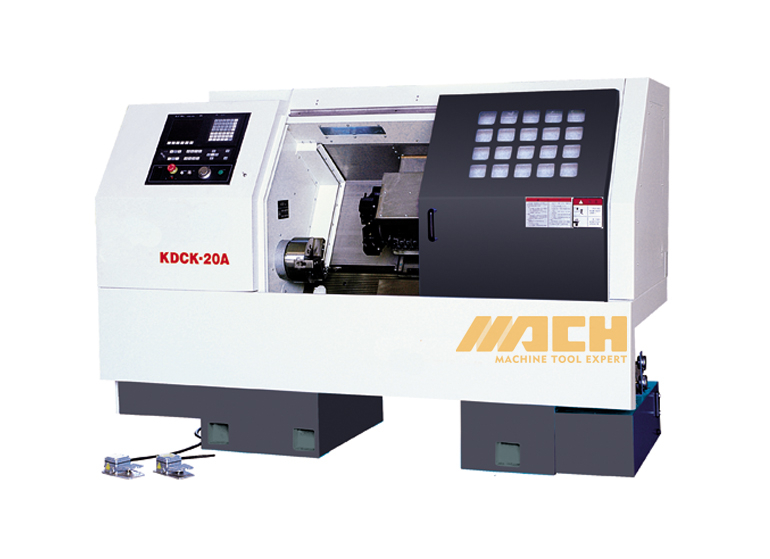

CNC Lathe Machine Model:KDCK-20A/KDCK-20B
| Quantity: | |
|---|---|
2. Spindle Bore Diameter: 63mm
3. Max. turned length:350mm
| ITEM | KDCK-20A | KDCK-20B |
| Max. swing over bed | 410 mm | 410 mm |
| Max. cutting dia. for disc parts | 360 mm | 360 mm |
| Max. cutting dia. for axle parts | 200 mm | 200 mm |
| Max. cross travel (X) | 180 mm | 180 mm |
| Max. longitudinal ravel (Z) | 420 mm | 420 mm |
| Spindle bore | 63 mm | 56 mm |
| Spindle nose | A2-5 | A2-5 |
| Chuck dia. | 8″ | 6″ |
| Spindle speed | 3000 r/min（Both chuck:200） | 6000 r/min |
| 4000 r/min （Both chuck:160） | ||
| Rapid feed for X axis | 9 m/min | 9 m/min |
| Rapid feed for Z axis | 15 m/min | 15 m/min |
| Number of tool post | 8 | 8 |
| Outside dia. Cutting tool shank | 20×20 mm | 25×25 mm |
| Max. inner dia. Cutting tool shank | 25 mm | 32 mm |
| Guide ways X & Z | Precision linear ball rail | Precision linear ball rail |
| Servo motor for x axis | 7Nm | 7Nm |
| Servo motor for z axis | 7Nm | 7Nm |
| Tailstock sleeve dia. | 63mm | 63mm |
| Tailstock sleeve travel | 100mm | 100mm |
| Taper hole of tailstock quill | M.T.No.4 | M.T.No.4 |
| Type of spindle motor | 变频 | Servo |
| Spindle motor power | 5.5KW | 5.5KW/7.5 KW |
| Bed structure | 60° slant bed | 60° slant bed |
| Max. Input | 0.001 mm | 0.001 mm |
| Repeatability | 0.005/0.006 mm | 0.005/0.006 mm |
| Capacity for coolant | 100L | 100L |
| Surface roughness | ≤Ra0.8μm(Nonferrous) | ≤Ra0.8μm(Nonferrous) |
| ≤Ra1.6μm(Steel part) | ≤Ra1.6μm(Steel part) | |
| Overall dimensions(L×W×H) | 2435×1270×1660 mm | 2435×1270×1660 mm |
| Net weight | 2700㎏ | 2700㎏ |
2. Spindle Bore Diameter: 63mm
3. Max. turned length:350mm
| ITEM | KDCK-20A | KDCK-20B |
| Max. swing over bed | 410 mm | 410 mm |
| Max. cutting dia. for disc parts | 360 mm | 360 mm |
| Max. cutting dia. for axle parts | 200 mm | 200 mm |
| Max. cross travel (X) | 180 mm | 180 mm |
| Max. longitudinal ravel (Z) | 420 mm | 420 mm |
| Spindle bore | 63 mm | 56 mm |
| Spindle nose | A2-5 | A2-5 |
| Chuck dia. | 8″ | 6″ |
| Spindle speed | 3000 r/min（Both chuck:200） | 6000 r/min |
| 4000 r/min （Both chuck:160） | ||
| Rapid feed for X axis | 9 m/min | 9 m/min |
| Rapid feed for Z axis | 15 m/min | 15 m/min |
| Number of tool post | 8 | 8 |
| Outside dia. Cutting tool shank | 20×20 mm | 25×25 mm |
| Max. inner dia. Cutting tool shank | 25 mm | 32 mm |
| Guide ways X & Z | Precision linear ball rail | Precision linear ball rail |
| Servo motor for x axis | 7Nm | 7Nm |
| Servo motor for z axis | 7Nm | 7Nm |
| Tailstock sleeve dia. | 63mm | 63mm |
| Tailstock sleeve travel | 100mm | 100mm |
| Taper hole of tailstock quill | M.T.No.4 | M.T.No.4 |
| Type of spindle motor | 变频 | Servo |
| Spindle motor power | 5.5KW | 5.5KW/7.5 KW |
| Bed structure | 60° slant bed | 60° slant bed |
| Max. Input | 0.001 mm | 0.001 mm |
| Repeatability | 0.005/0.006 mm | 0.005/0.006 mm |
| Capacity for coolant | 100L | 100L |
| Surface roughness | ≤Ra0.8μm(Nonferrous) | ≤Ra0.8μm(Nonferrous) |
| ≤Ra1.6μm(Steel part) | ≤Ra1.6μm(Steel part) | |
| Overall dimensions(L×W×H) | 2435×1270×1660 mm | 2435×1270×1660 mm |
| Net weight | 2700㎏ | 2700㎏ |
