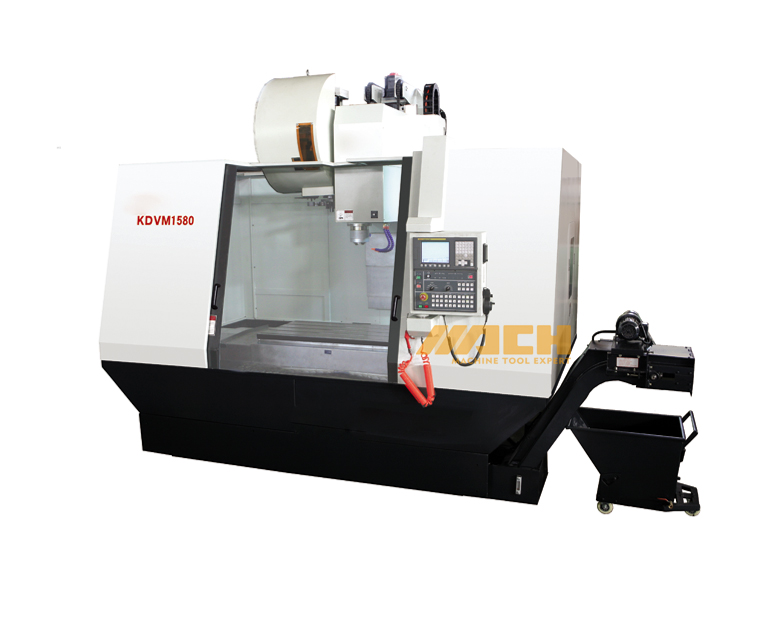

CNC Lathe Machine Model:KDVM1370/KDVM1580
| Quantity: | |
|---|---|
1.Longitudinal and cross feeds are effected by servo motor drive through ball screws.
2.Either vertical or horizontal 3-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3.Both chuck and tailstock are supplied with hydraulic or manual type.
4.The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
5.Variable spindle speed can be programmed as two rangs, that is high one and low one.
| ITEMS | KDVM1370 | KDVM1580 |
| Travel | | |
| X travel | 1300 mm | 1500 mm |
| Y travel | 700 mm | 800 mm |
| Z travel | 650 mm | 700 mm |
| Distance between spindle center and column guide way | 785 mm | 800 mm |
| Distance between spindle end and table | 150~800 mm | 170~870 mm |
| Table | | |
| Tablesize | 1400×710 mm | 1700×800 mm |
| Max. table load | 1000㎏ | 1500㎏ |
| T-slot （width×number×space） | 18×5×152.5 mm | 22×5×135 mm |
| Spindle | | |
| Taper bore of spindle | BT50 | |
| Spindle speed | 50~6000 rpm | |
| Main motor power | 15/18.5KW | |
| Cutter removal from spindle | Pneumatic | |
| Feel | | |
| X、Y travel speed | 16m/min | |
| Z travel speed | 16m/min | |
| X、Y、Z Motor torque | 22Nm（β motor） | |
| Repeataqbility(X/Y/Z) | ±0.003 mm | |
| Tool chinging system | | |
| Tool number | (horizontal type):24 | |
| Max. tool size(with adjacent tool) | ?127 mm | |
| Max. tool size(Without adjacent tool) | ?150 mm | |
| Max. tool length | 300 mm | |
| Max. tool weight | 15kg | |
| Tool changing time(cut to cut) | 3s | |
| Other | | |
| Min. Input(X/Y/Z) | 0.001 mm | |
| Overall dimensilns(L×W×H) | 3500×3390×2865 mm | 4286×3110×3059 mm |
| Net weight | 12000㎏ | 15000㎏ |
