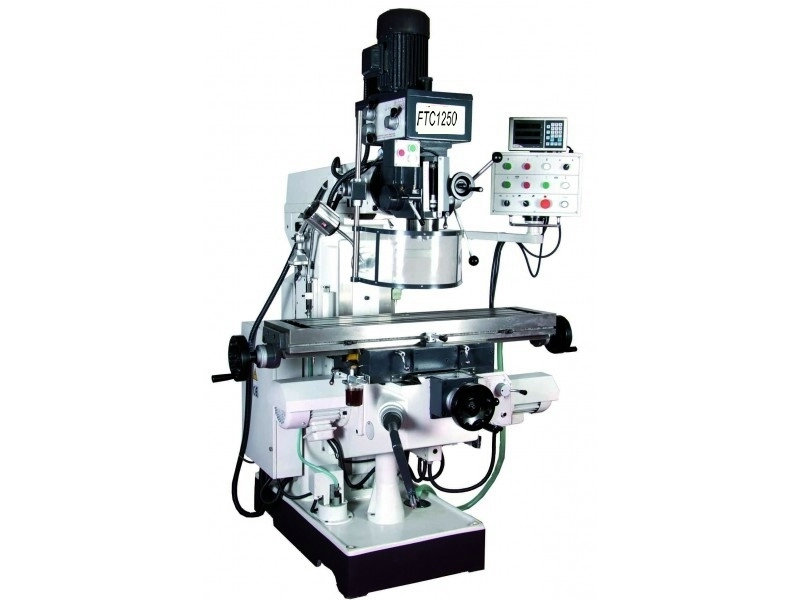

COMBINED VERTICAL TURRET MILLING MACHINE FTC 1250
| Quantity: | |
|---|---|
| Number of boring speeds | 12 |
| Rapid vertical movement (mm/min) | 560 |
| Range of speeds (r.p.m) | 40-1300 |
| Ram movement | MANUAL |
| Longitudinal travel (mm) | 800 |
| Distance between the vertical spindle to the table (mm) | 90-400 |
| Cross feed (mm/min) | 22-555 |
| Taper of ram headstock | ISO40 |
| Quill travel (mm) | 130 |
| Max. weight over table (Kg) | 150 |
| Ram power (Kw) | 2,2 |
| Dimensions (mm) (length - width - high) | 1500x1700x2200 |
| Ram headstock speed range (r.p.m) | 90-2000 |
| Boring taper | ISO40 |
| Worktable surface (mm) | 1320x320 |
| Ram travel (mm) | 550 |
| Cross travel (mm) | 254 |
| Number of ram headstock speeds | 8 |
| Distance spindle/ machine mirror | 160-700 |
| Longitudinal feed (mm/min) | 22-555 |
| Net weight (Kg) | 2000 |
| Longitudinal and cross rapid movement (mm/min) | 810 |
| Quill diameter (mm) | 90 |
| T-slot (mm) | 3x14 |
| Power ram headstock (Kw) | 2,8 |
| Ram travel (mm) | 300 |
| Number of boring speeds | 12 |
| Rapid vertical movement (mm/min) | 560 |
| Range of speeds (r.p.m) | 40-1300 |
| Ram movement | MANUAL |
| Longitudinal travel (mm) | 800 |
| Distance between the vertical spindle to the table (mm) | 90-400 |
| Cross feed (mm/min) | 22-555 |
| Taper of ram headstock | ISO40 |
| Quill travel (mm) | 130 |
| Max. weight over table (Kg) | 150 |
| Ram power (Kw) | 2,2 |
| Dimensions (mm) (length - width - high) | 1500x1700x2200 |
| Ram headstock speed range (r.p.m) | 90-2000 |
| Boring taper | ISO40 |
| Worktable surface (mm) | 1320x320 |
| Ram travel (mm) | 550 |
| Cross travel (mm) | 254 |
| Number of ram headstock speeds | 8 |
| Distance spindle/ machine mirror | 160-700 |
| Longitudinal feed (mm/min) | 22-555 |
| Net weight (Kg) | 2000 |
| Longitudinal and cross rapid movement (mm/min) | 810 |
| Quill diameter (mm) | 90 |
| T-slot (mm) | 3x14 |
| Power ram headstock (Kw) | 2,8 |
| Ram travel (mm) | 300 |
