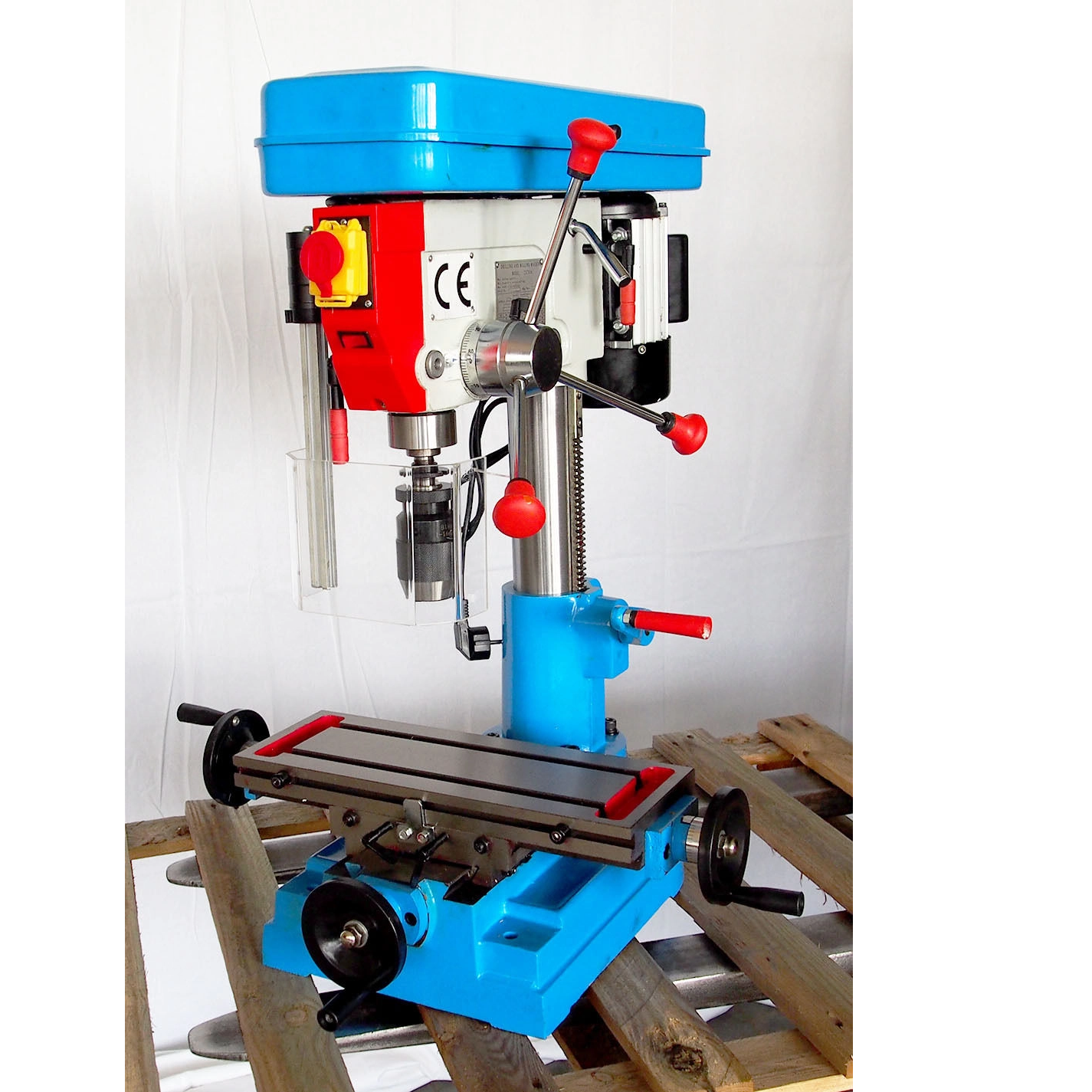

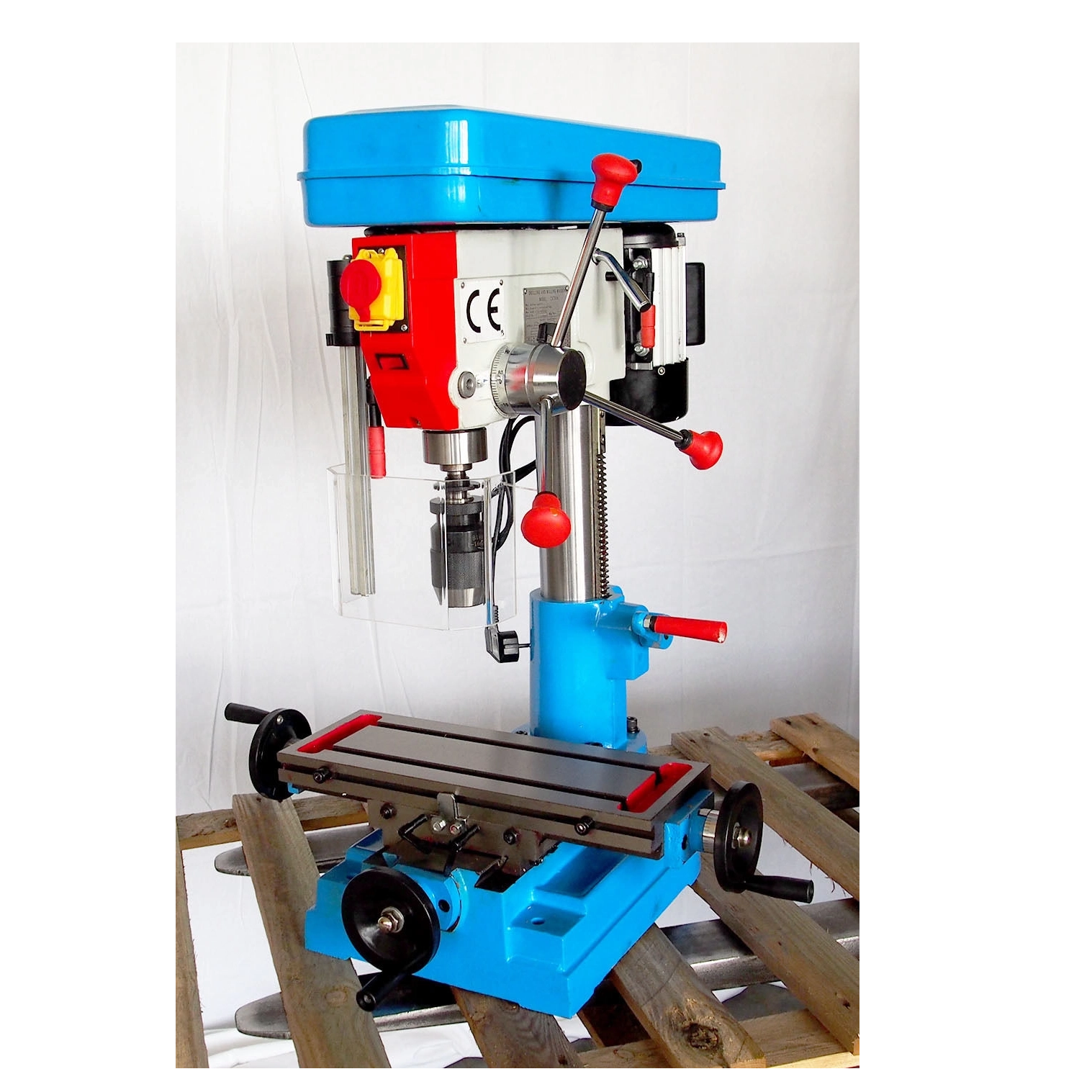

Product main technical Specifications:
| Specifications | ZX7016 |
| Max. Drilling capacity (mm) | 16 |
| Max. face mill capacity (mm) | 40 |
| Diameter of vertical milling (mm) | 10 |
| Spindle travel (mm) | 80 |
| Distance spindle axis to column generating line(mm) | 182 |
| Max. Distance spindle nose to table (mm) | 360 |
| Spindle taper | MT2 |
| Spindle speeds range (r/min) | 320~3300 |
| Spindle speeds series | 12 |
| Dimension of worktable surface (mm) | 420×152 |
| Table travel (mm) | 230×120 |
| Overall height (mm) | 900 |
| Main motor (W) | 550 |
| G.W/N.W(Kg) | 100/75 |
| Packing dimension (cm) | 65×58×77 |
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
