1,000W brushless DC high torque motor, quiet and reliable

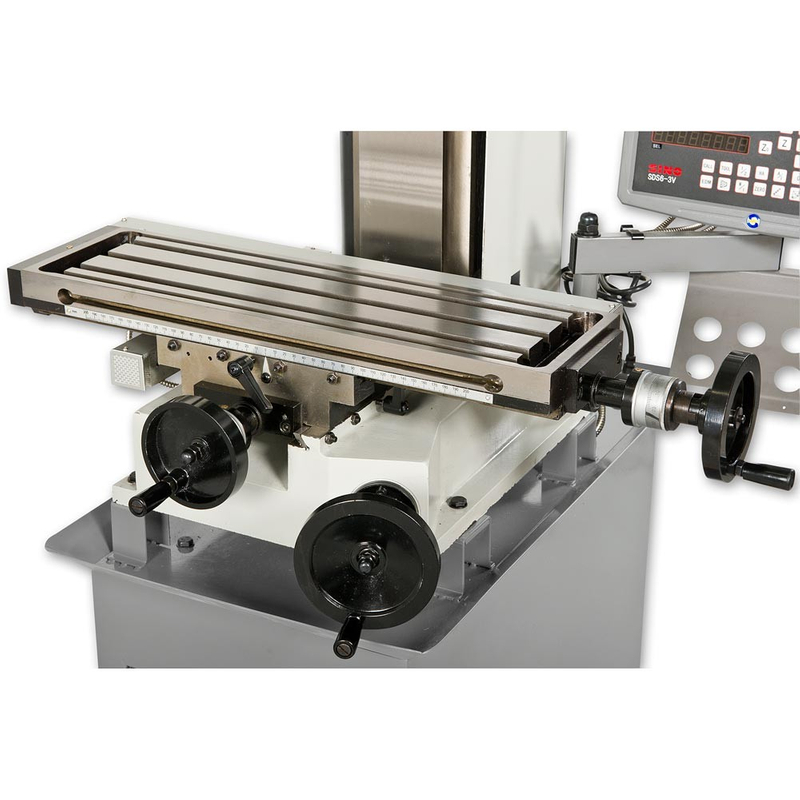

3 axis digital read-out of the table position (X & Y),and head stock height (Z)
Digital downfeed and spindle speed indicators for precise control

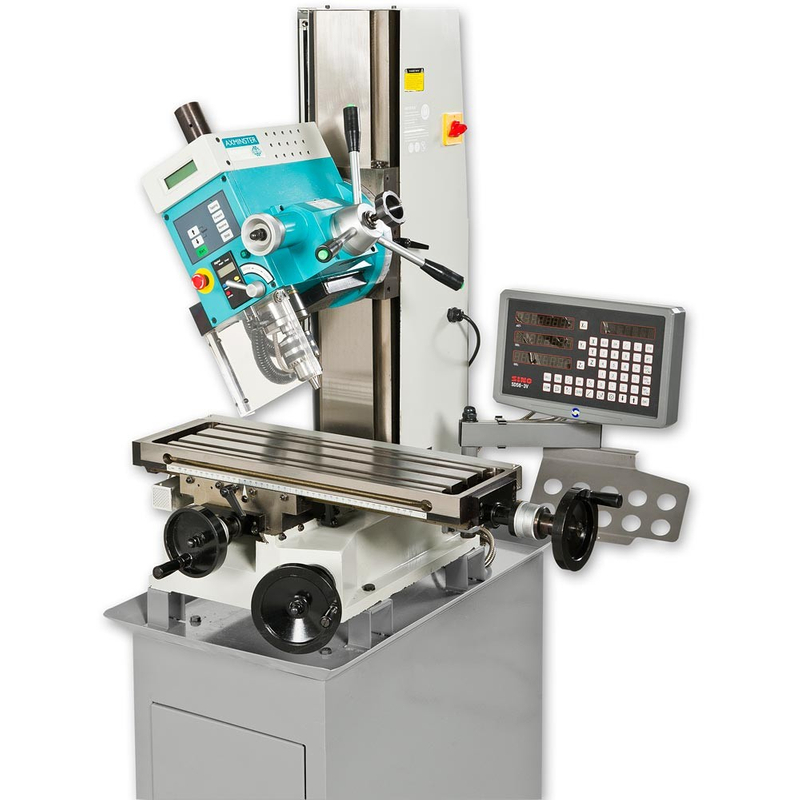

Head tilts up to 90° for angled and horizontal drilling/milling

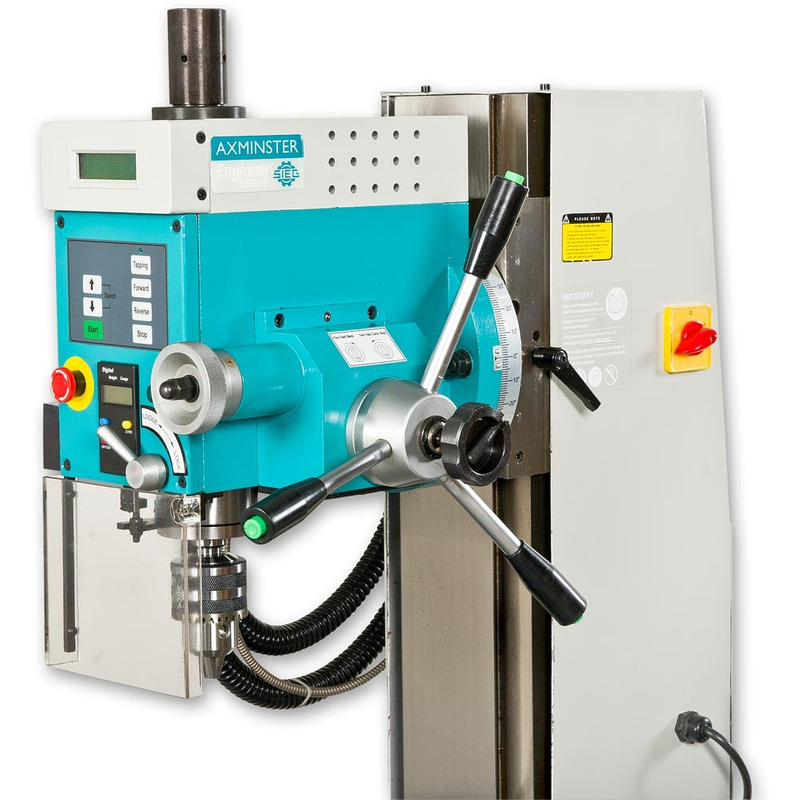

Dual downfeed controls, coarse for drilling, fine for milling
Rectangular cast iron column gives stability and accuracy

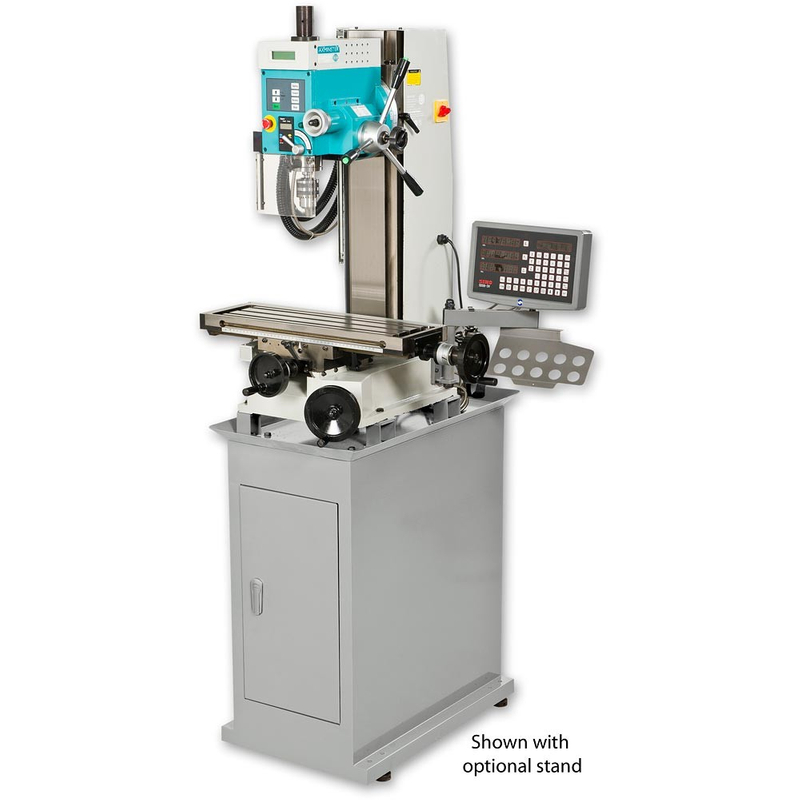

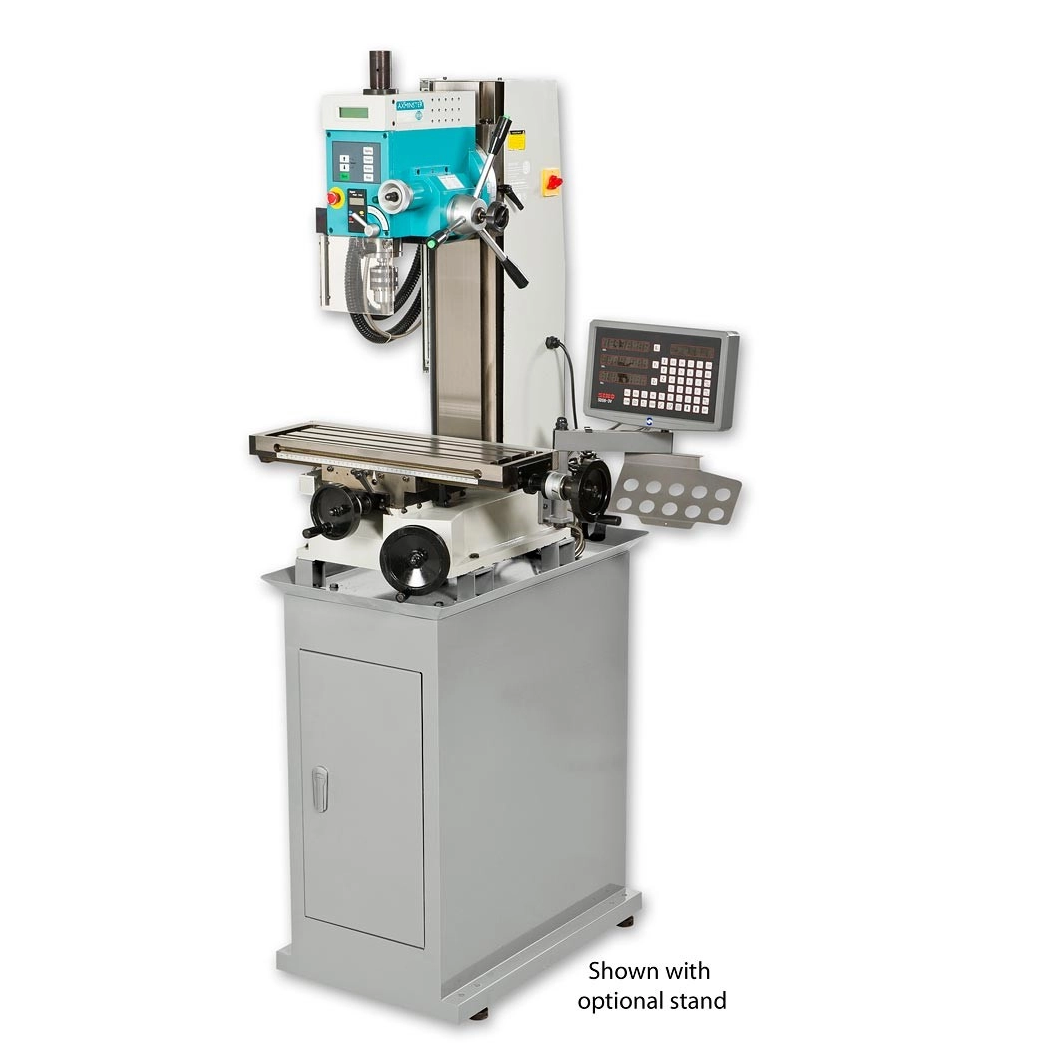

Cabinet stand and many other accessories available as extras

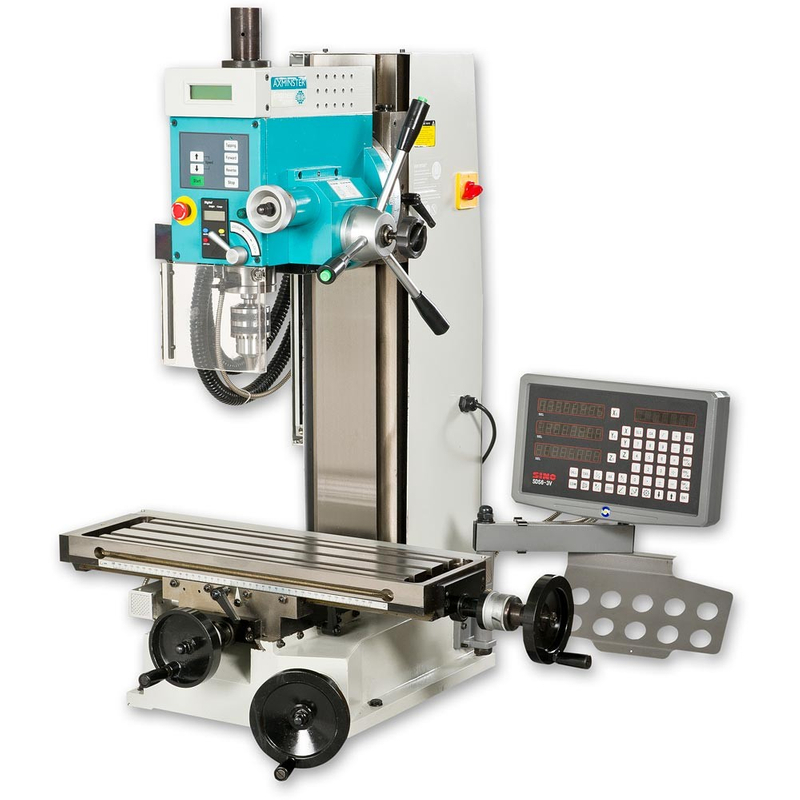

The SX3 DIGI is an even more advanced mill/drill with the added benefits of a 3 axis digital read-out (DRO) system for the table position (X & Y) and headstock height (Z). All the other standard features of the SX3 are here including a tilting head, digital spindle speed, and downfeed read-outs and a thread tapping facility. It is a compact and well made machine which is ideal for the experienced model engineer or a small engineering workshop, and is used for courses in our Skill Centre. The rectangular cast iron column, equipped with dovetail guides for the milling head, is a very substantial section and does guarantee accurate, chatter-free performance. One excellent feature of this mill is the positioning of the vertical feed control wheel - on the base where it is easily to hand. On the SX3-DIGI the coarse adjustment is made with this control wheel whilst the fine feed is carried out via a wheel on the head itself. The control wheels are smooth in operation and the scales are graduated in steps of 0.02mm, allowing for some very precise machining. The machine is supplied with a 1-13mm drill chuck, ER32 collet holder and there is a 3MT in the quill for fitting milling chucks or other items of tooling. Accessories available are a cabinet stand with shelves and lockable door, and a kit of clamps, nuts, studs and spacers for clamping the work to the table.
Base Size
340 x 430 mm
Diameter of Column
N/A
Drilling Capacity
25mm
End Milling Capacity
16mm
Face Milling Capacity
50mm
Head Tilt
0° 90°R
Lateral Table Movement
145mm
Longitudinal Table Movement
400mm
Model
SIEG SX3
Nett Weight
165kg
Nose of Spindle to Table [Max]
380mm
Overall L x W x H
685 x 560 x 830mm
Power
1,000W (230V)
Rating
Engineer
Spindle Speed
100-1,750rpm
Spindle Taper
3MT
Spindle Travel
70mm
Table Size
550 x 160mm
Table Travel
400 x 145mm
Throat
230mm
T Slot Size
12mm
