For the larger engineering workshop or small scale production facility

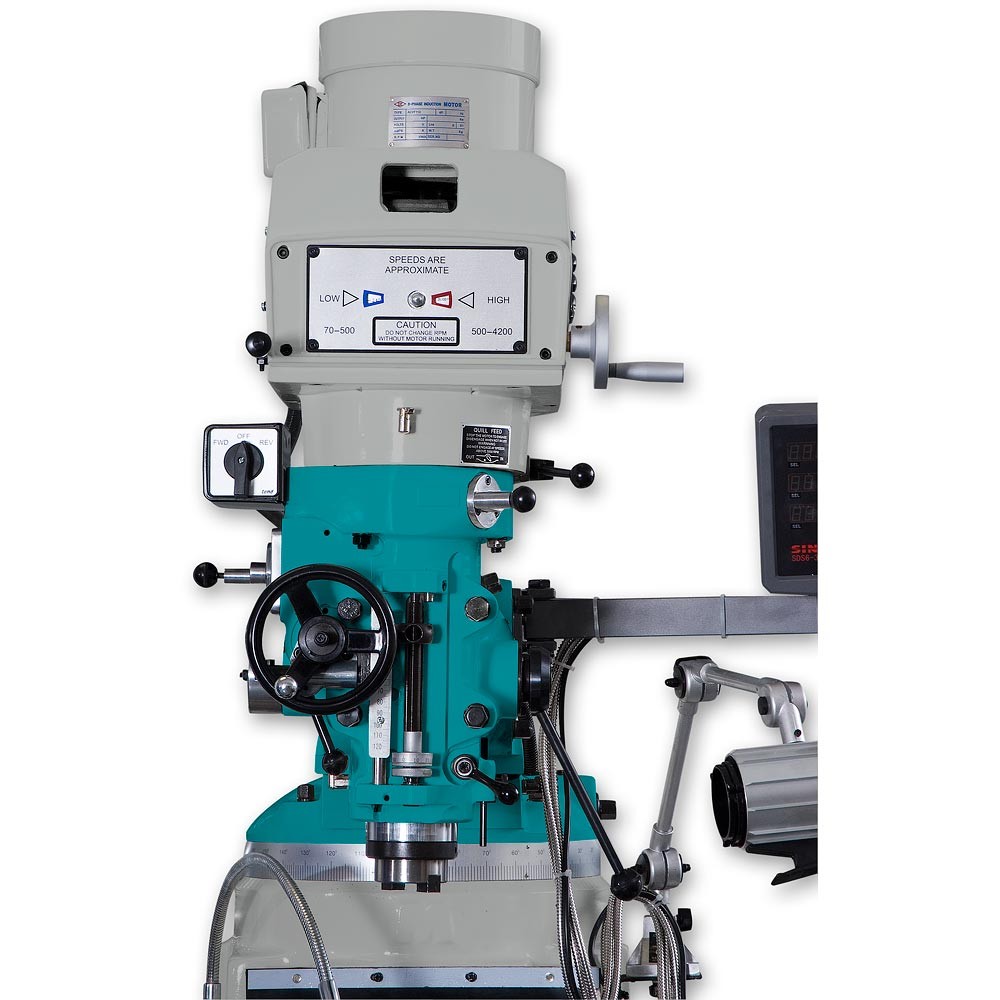

Variable speed spindle drive
Choice of either ISO30, ISO40 or R8 spindles (choose when purchasing)
Auto quill feeds - 0.40, 0.08 & 0.15mm/rev

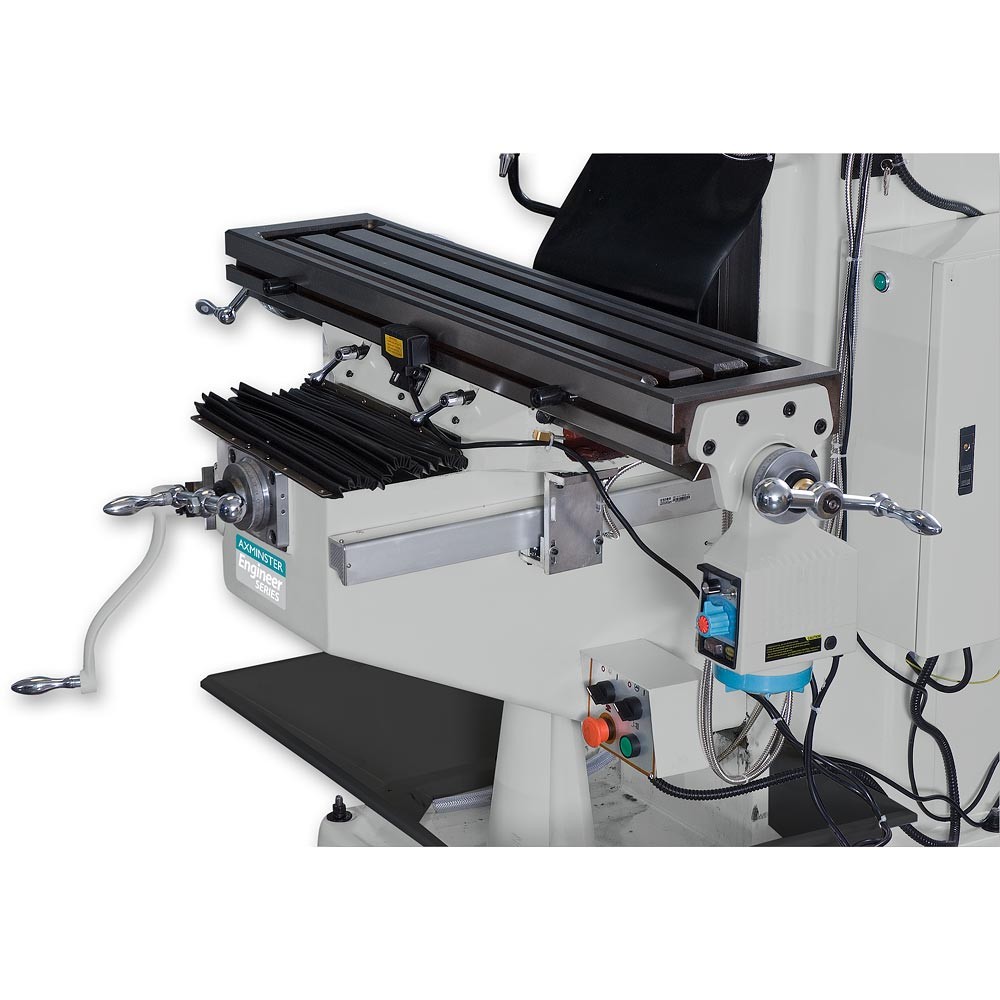

X axis powerfeed
Spindle ram travel - 312mm
Vertical travel - 400mm

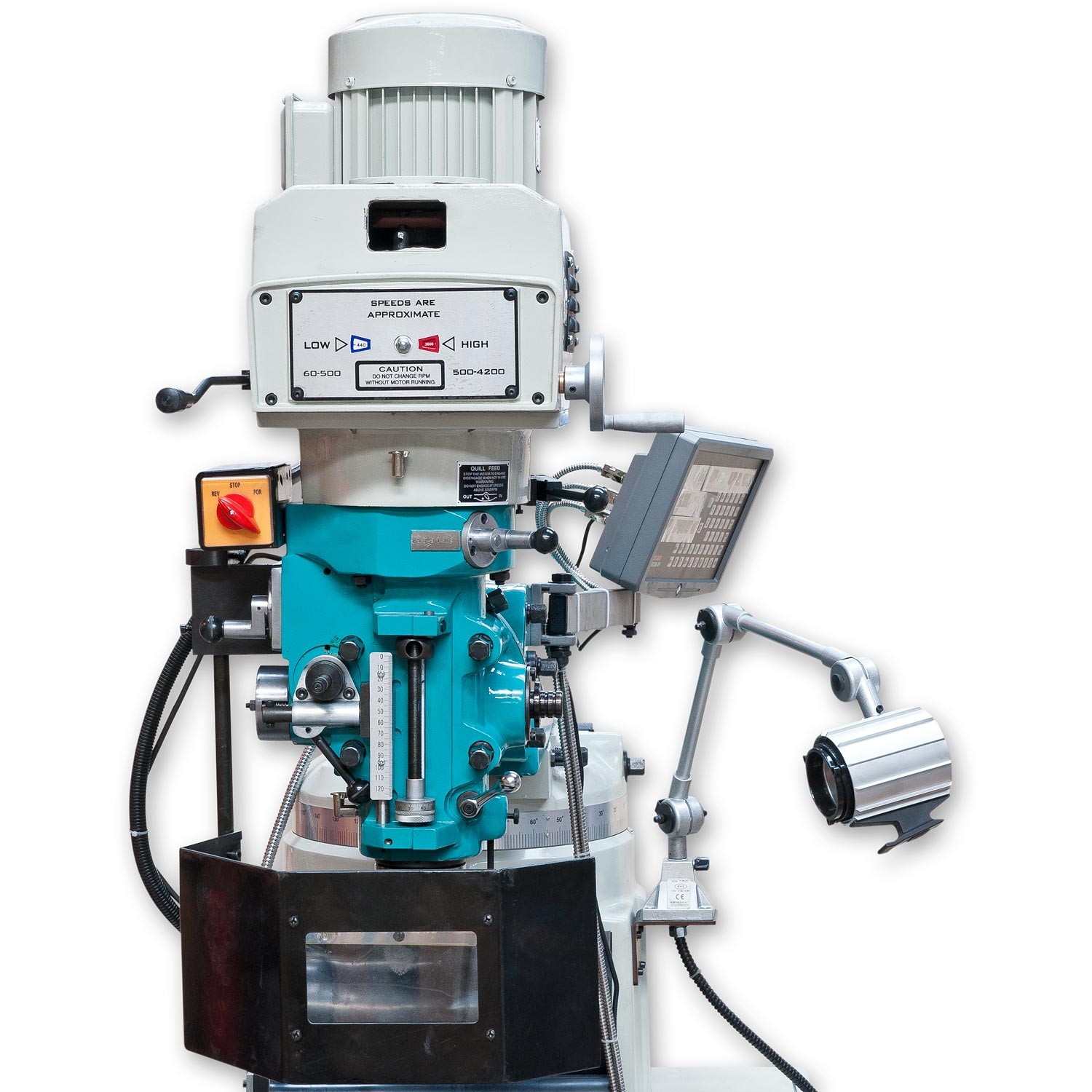

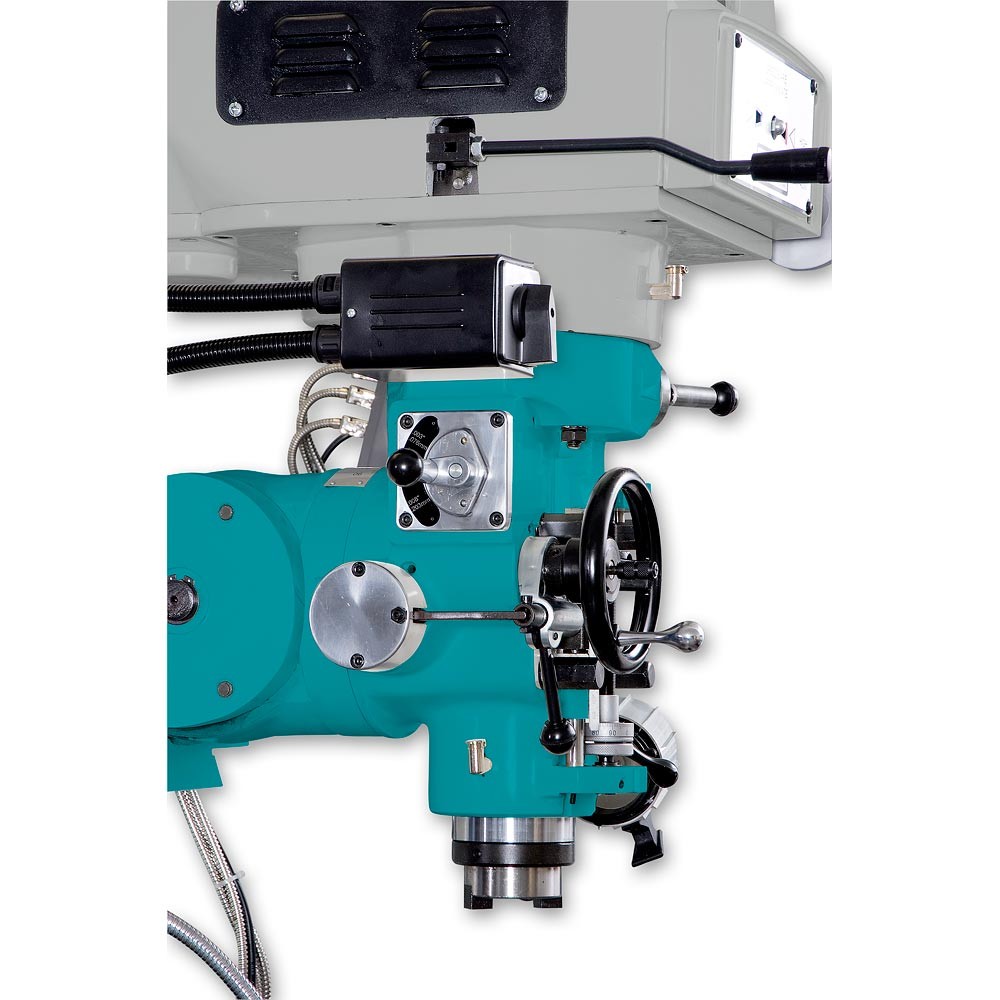

Fully universal pivoting and swivelling head

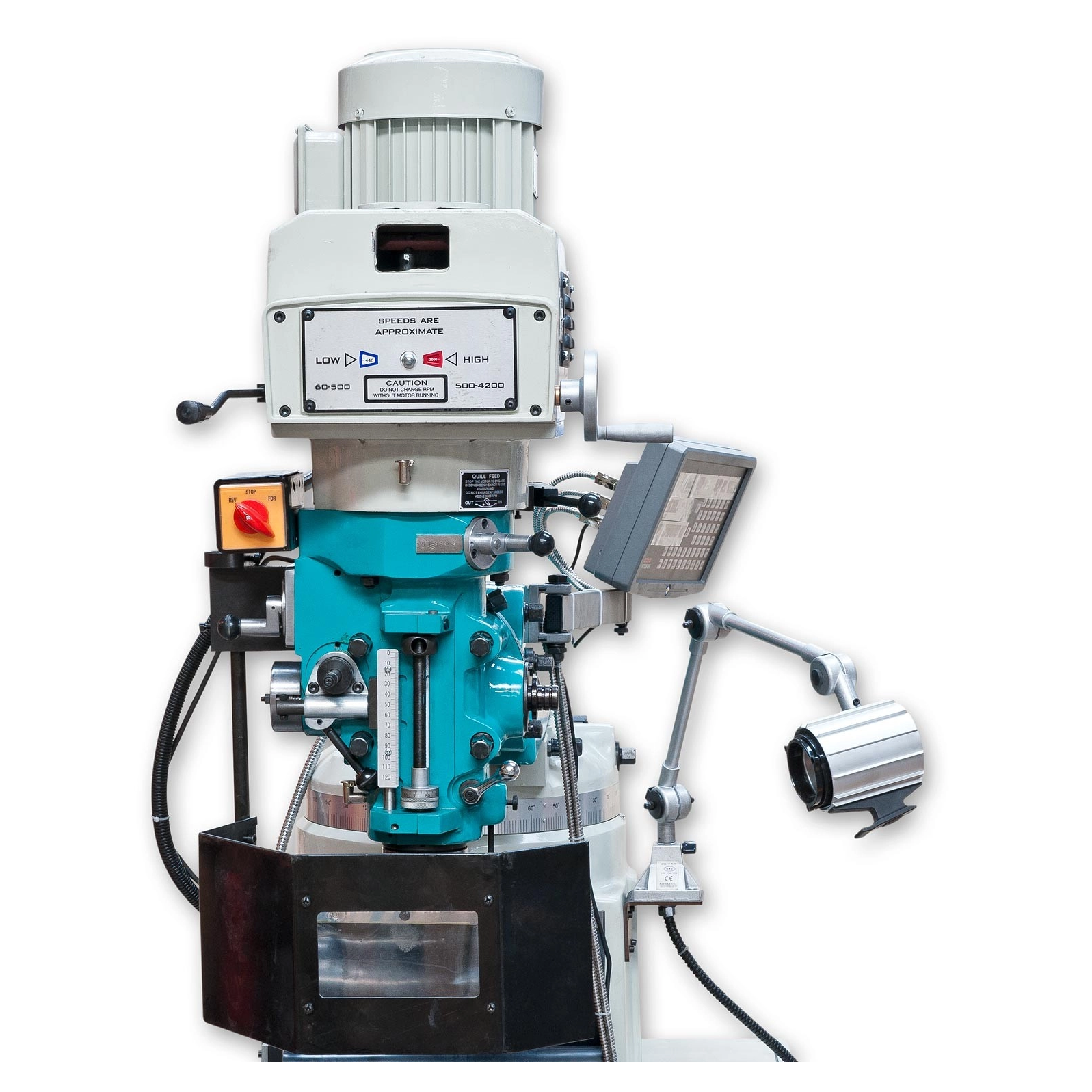

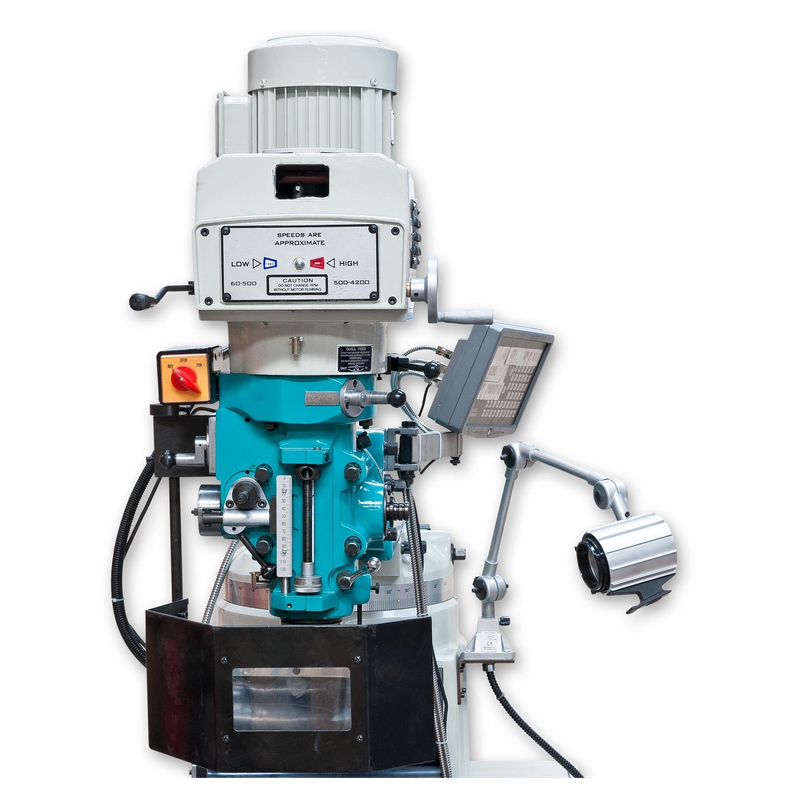

Electrically interlocked chuck guard
Central slide oiling system
Optional Y Axis Powerfeed available (fitting charge will apply)

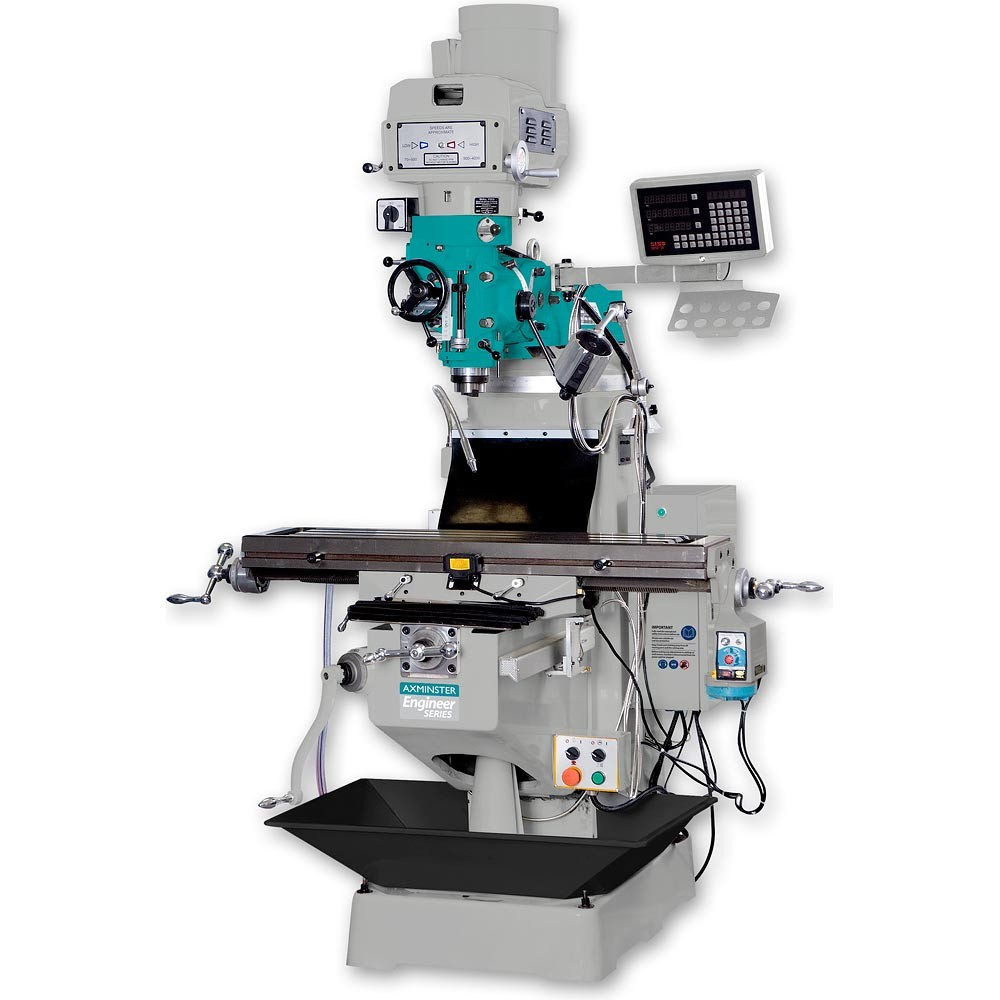

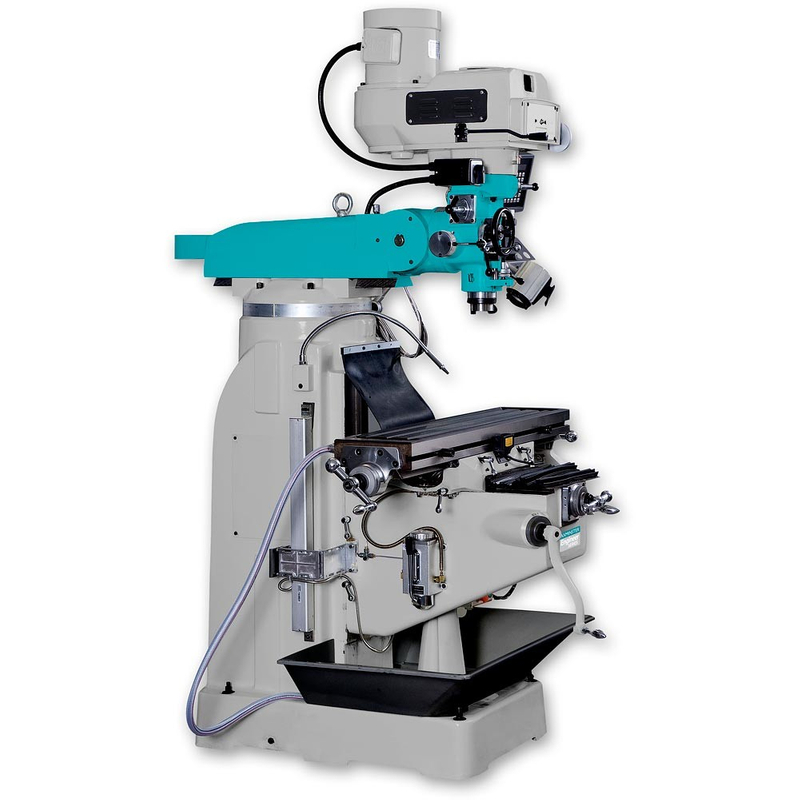

This is a well specified turret milling machine suited to the small production workshop or engineering facility. It features variable spindle speeds, 3-axis digital read-out (DRO), X axis powerfeed, 3-stage auto quill feed, electrically interlocked chuck guard and a choice of ISO30, ISO40 or R8 spindle. This machine is mainly manufactured from cast iron which provides great rigidity and stability under maximum loads. Ground and hardened slideways guarantee accuracy and are adjustable to accommodate any settling in or wear. The ability to swivel the headstock over 90° and pivot it through 45° gives great flexibility in use. The standard 3-axis DRO makes it much easier to machine to a high level of accuracy. This coupled with the variable spindle speed and a choice of ISO30 , ISO40 or traditional R8 tooling all adds up to a very comprehensive machine, great value for the engineering tuition environment or small production workshop. Optional Y-Axis Powerfeed (211935) is available to purchase, if you would like to have this fitted please call (0800 371822) to have one of our experienced engineers do this for you. N.B. Fitting charge will apply. N.B. Requires a 16A 415V 3ph Supply
Specification
Arm Travel
150mm
Head Swivel
90°
Head Tilt
45°
Lateral Table Movement
305mm
Longitudinal Table Movement
650mm
Model
X6323A
Nett Weight
1,000kg
Nose of Spindle to Table [Max]
415mm
Overall L x W x H
1,600 x 2,156 x 2,060
Power
2.2KW (415V, 3ph)
Ram Swiveling Angle
-90°-+90°
Rating
Engineer
Spindle Speed
65-4,500 rpm variable
Spindle Taper
ISO30,ISO40
Spindle Travel
127mm
Table Size
1,067 x 230mm
T Slot Size
16mm x 3
Vertical Head Tilt Angle, R&L
-45°-+45°
