| Max. Drilling Capacity | 13mm |
| Max Face Milling Capacity | 16mm |
| Max Surface Milling Capacity | 30mm |
| Travel of Spindle Box(Z) | 180mm |
| Transverse Travel (X) | 130mm |
| Longitudinal Travel(Y) | 300mm |
| Distance of Spindle Axis to Column | 165 |
| Angle of Inclination of Column | 45right/left |
| Max Distance Spindle to Table | 270mm |
| Spindle Taper | MT3 |
| Motor Power | 350W |
| Spindle Speed Variable | High Speed 100-2500rpm/min10% |
| Spindle Speed Variable | Low Speed 100-1100rpm/min10% |
| Worktable Size | 460 X 120mm |
| Size of T Slot | 12mm |
| Dimensions(LxWxH) | 570X550X530mm |
| Net Weight | 56kgs |

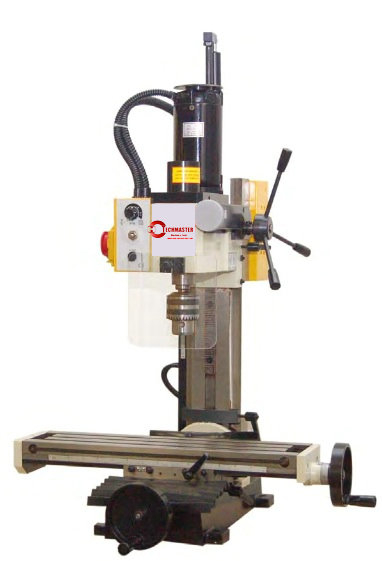

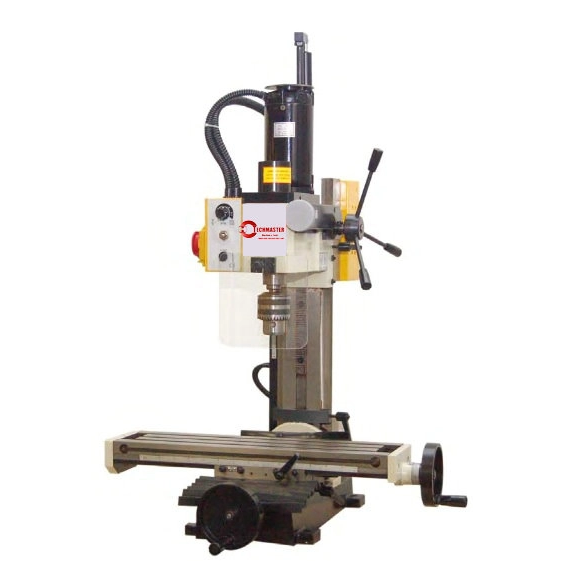

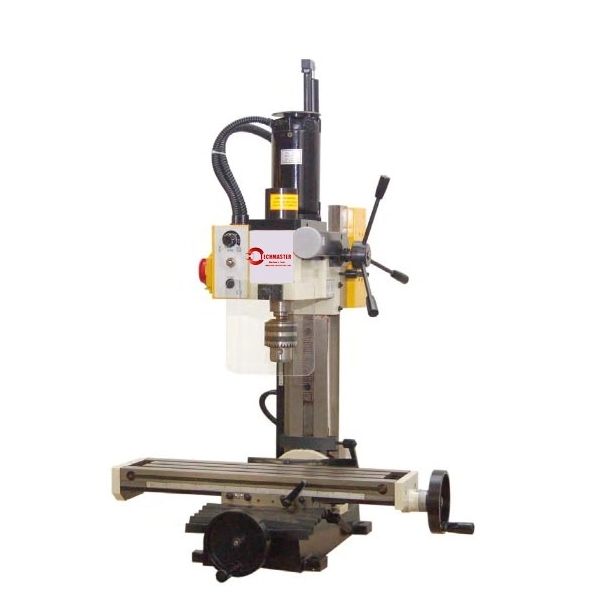

This little mill will handle any kind of job up to 12mm drilling and milling, with no belt changes necessary. The variable speed control and gear drive saves you timeand hassle. Built with a heavy-duty column and base for better stability; qualities not found in other small machines; this mill/drill is truly a remarkable machine.
FEATURES:
Dovetail Column
Adjustable Depth Stop
Fine Feed Head Control
Geared Drive
Variable Speed
Slideway Covers
Zero Setting Dials
Metric or Imperial Machines
Large Table
STANDARD ACCESSORIES:
1-13mm Drill chuck
MT3 Drill Chuck Arbor
Milling Drawbar
Variable Speed
Spanners
Allen Keys
Manual & Parts list
