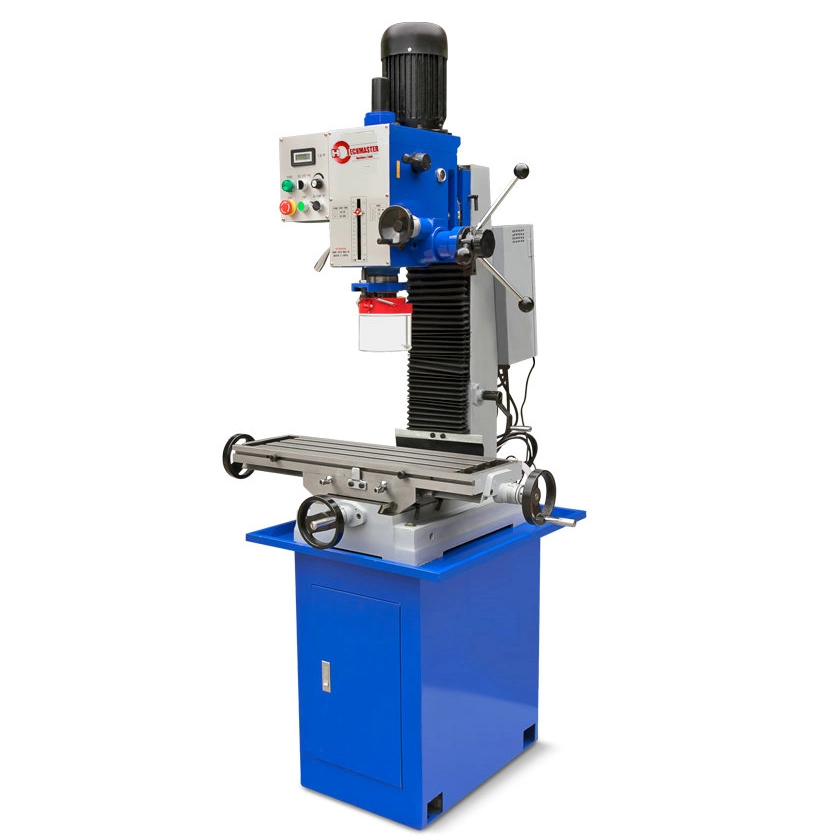

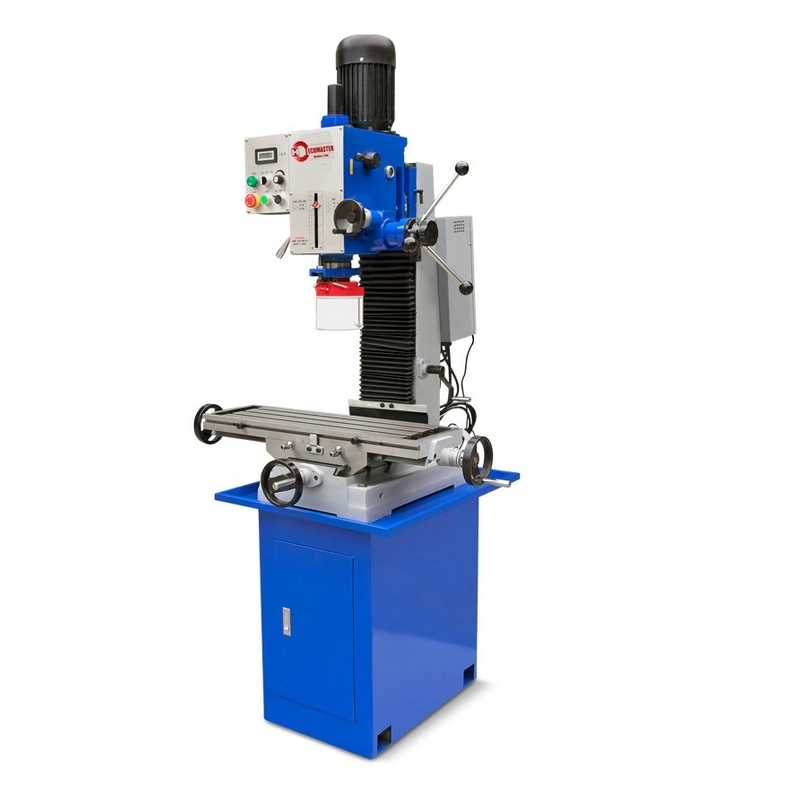

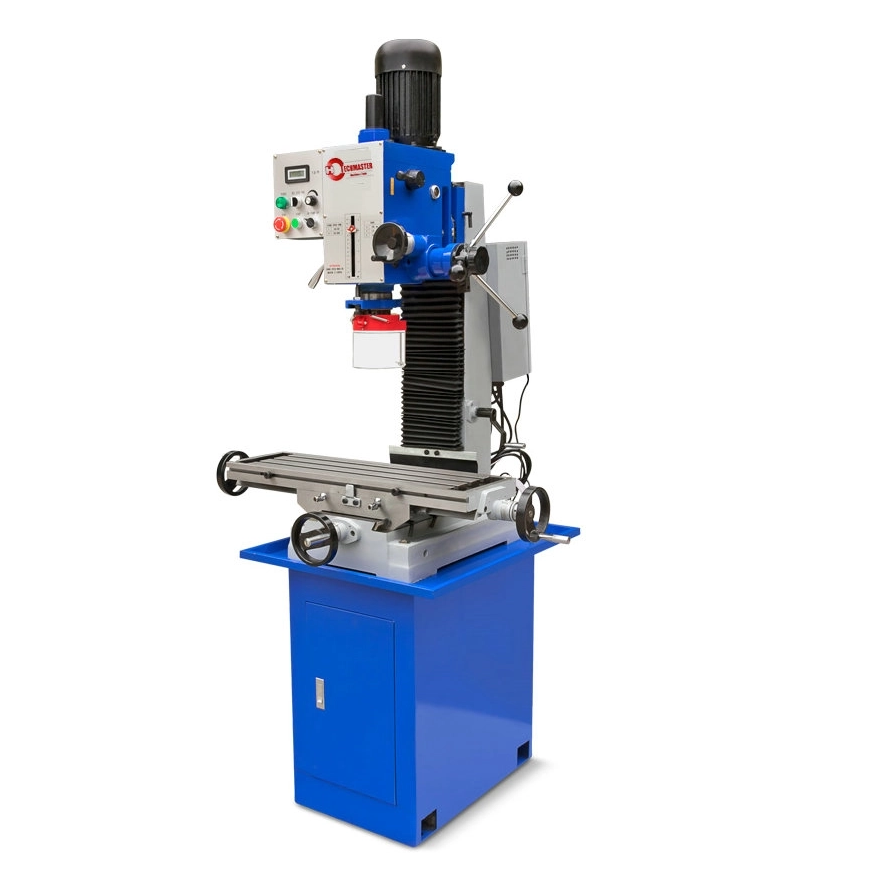

FULLY INDUSTRIAL DRILLING AND MILLING MACHINE VARIO SPEED ZAY7045V

 drilling,- & milling machine with 90° pivoting gear head and variable speed for the commercial demand.
With halogenlamp and coolant system.

Technical data:
Spindle cone MT 4
Motor output power S1 1,5 kW, 400 V
Weight 310 kg
Table dimensions 800 x 240 mm
max. workpiece height 400 mm
Speeds 50 - 530 and 530 - 2600 rpm
Max. drilling capacity in steel 45 mm
Worktable travel x=500mm, Y= 175 mm


Optional equipment:
Underframe with coolant tub
