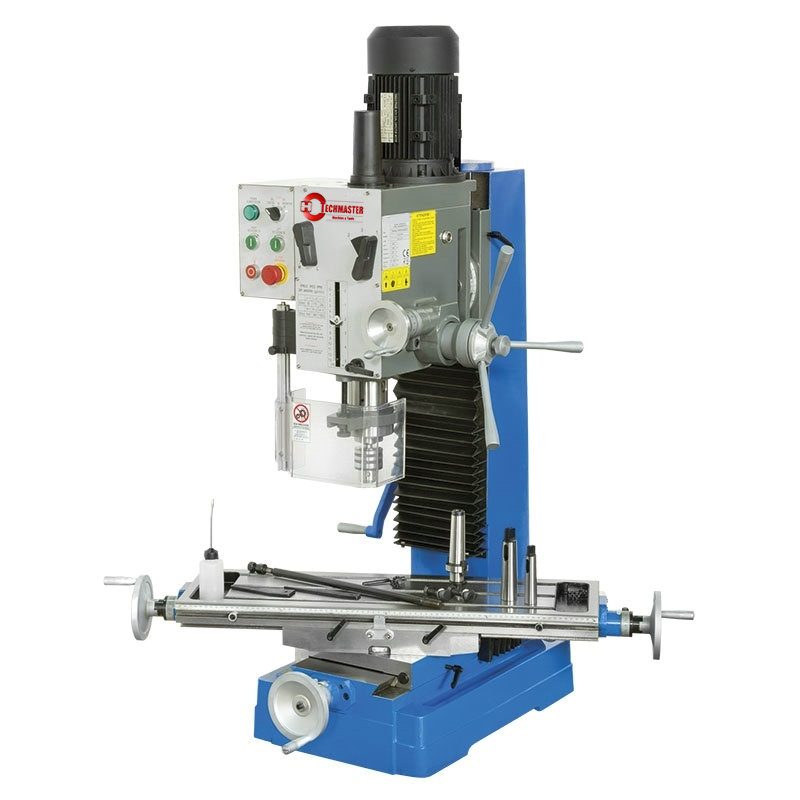

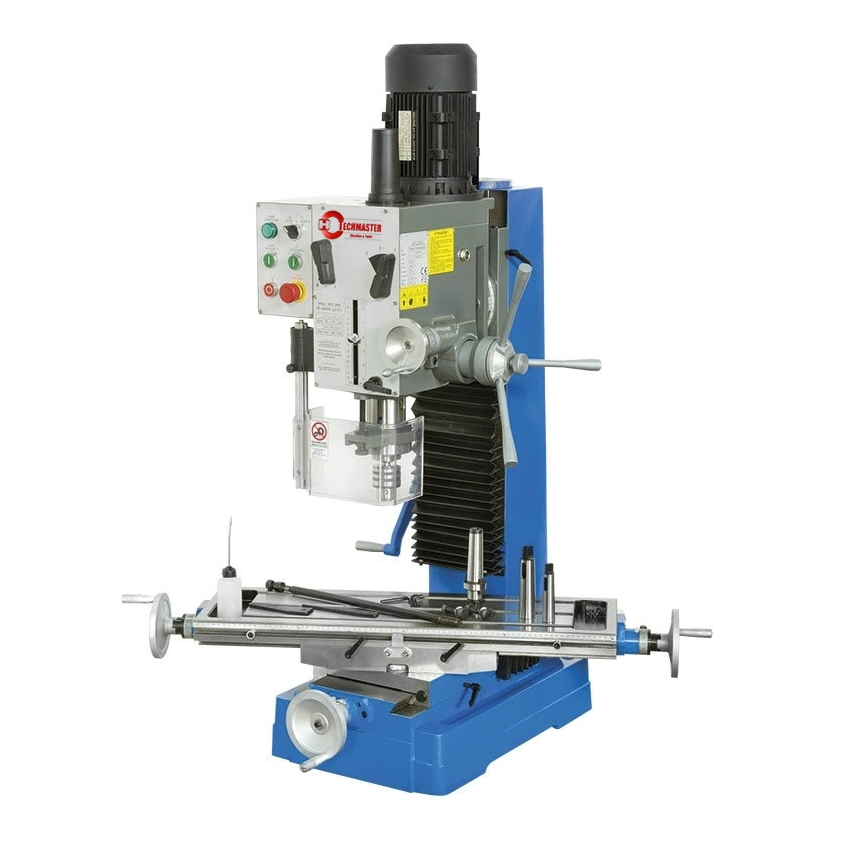

BF45 BASIC
| Quantity: | |
|---|---|
Features of BF45 BASIC

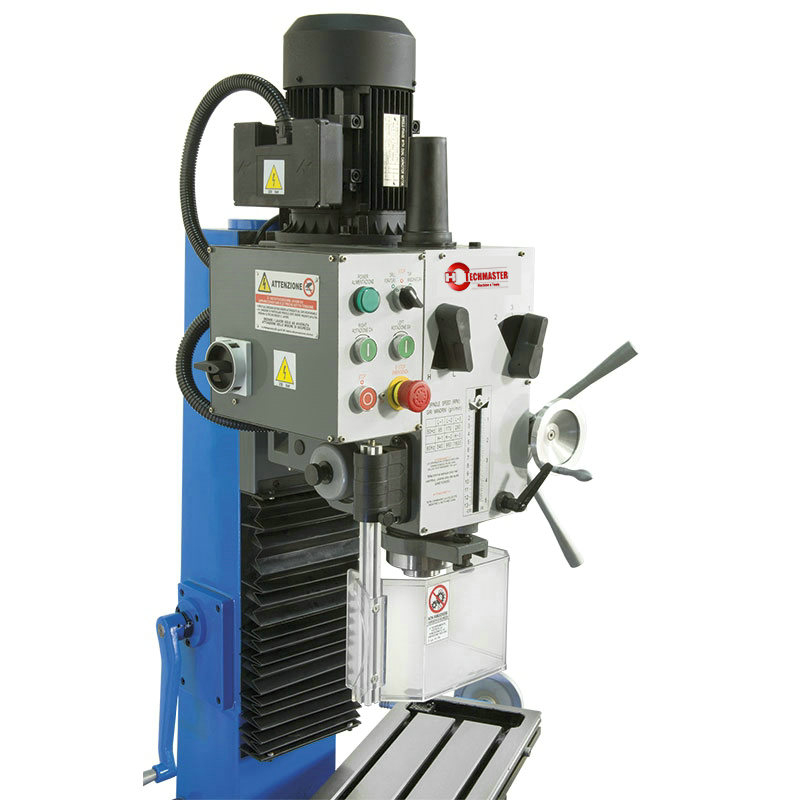

Precision metal gear driven drilling and milling machine:
1.Milling drilling, tapping, boring, reaming.

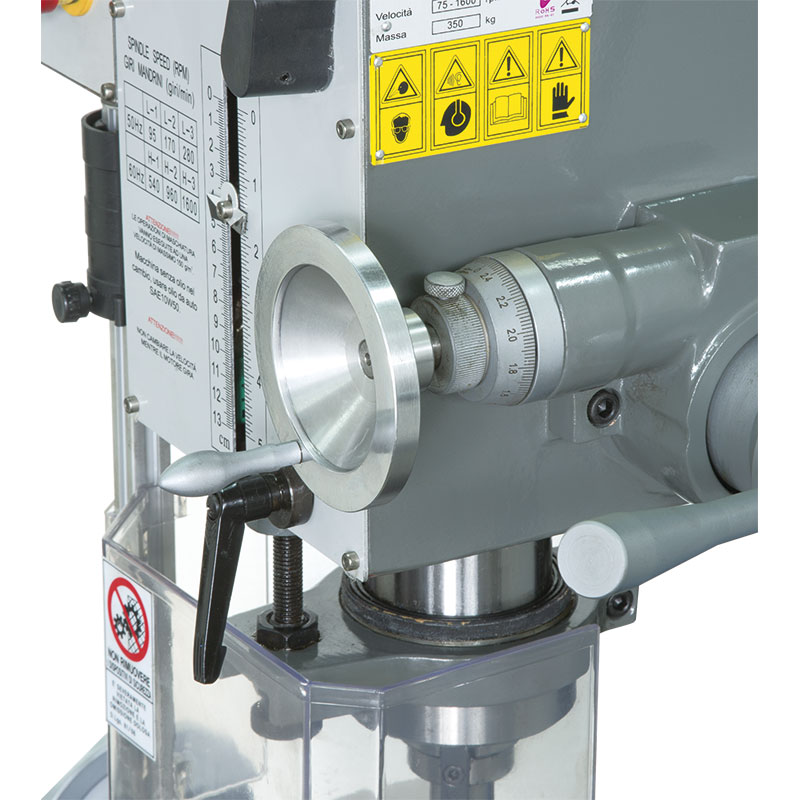

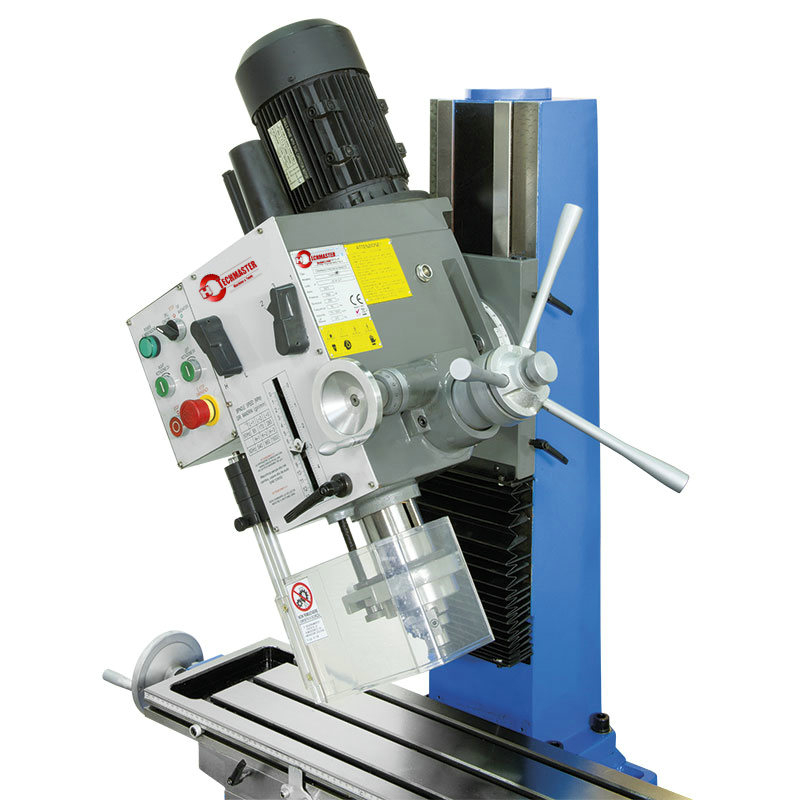

2.Head swivels 360,Micro feed precision.
3.Super high column,Wide and big table,Gear drive, lower noise.

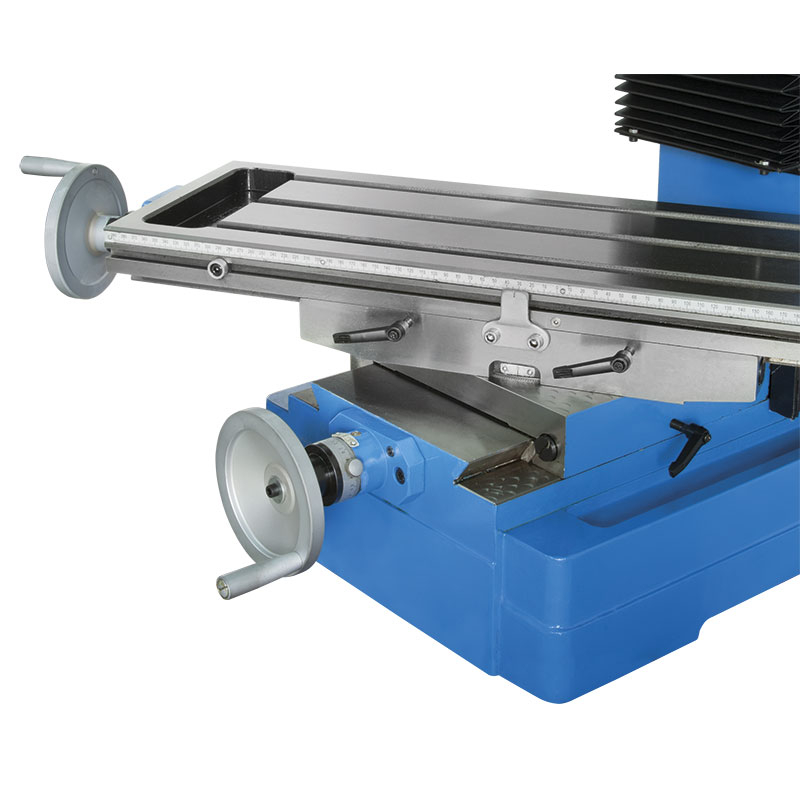

4.Heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table.
Specifications of Precision metal gear driven drilling and milling machine:
| Item | BF45 BASIC |
| Max.drilling capacity(iron/steel) | 31.5/45mm |
| Max.mill capacity(face/end) | 80/32mm |
| Spindle taper | MT3/MT4/R8/ISO30 |
| Worktable size | 800×240mm |
| Worktable travelX/Y | 570/230mm |
| Head tilt left right | 90° |
| Spindle travel | 130mm |
| Spindle nose to worktable | 470mm |
| Spindle center to column surface | 285mm |
| Spindle speeds range(2 steps) | 6steps:60Hz 90~1970rmp 50Hz 75~1600rmp |
| motor | 1.1kw |
| N.W/G.W | 300/350KG |
| Packing size(L×W×H) | 850x760x1150mm |
| 20’Container | 30 sets |
Standard accessories:
1.Draw bar,
2.Adapter,
3.Taper shank for drilling chuck ,
4.Drilling chuck,
5.Arbor,
6.T slot bolt,
7.Washer
8.Nut
9.Tilted wedge
10.Spanner
11.Oil gun
Optional accessories:
Foot stand +oil pan ,
Cooling system ,
Working light,
Auto Spindle power down feeder ,
Lifting motor+Electrical box ,
table power feed system ,
DRO ,
depth indicator ,
2 speed motor ,
spring collet ,
vices ,
milling collet ,
milling clamp,
Big Electrical box
