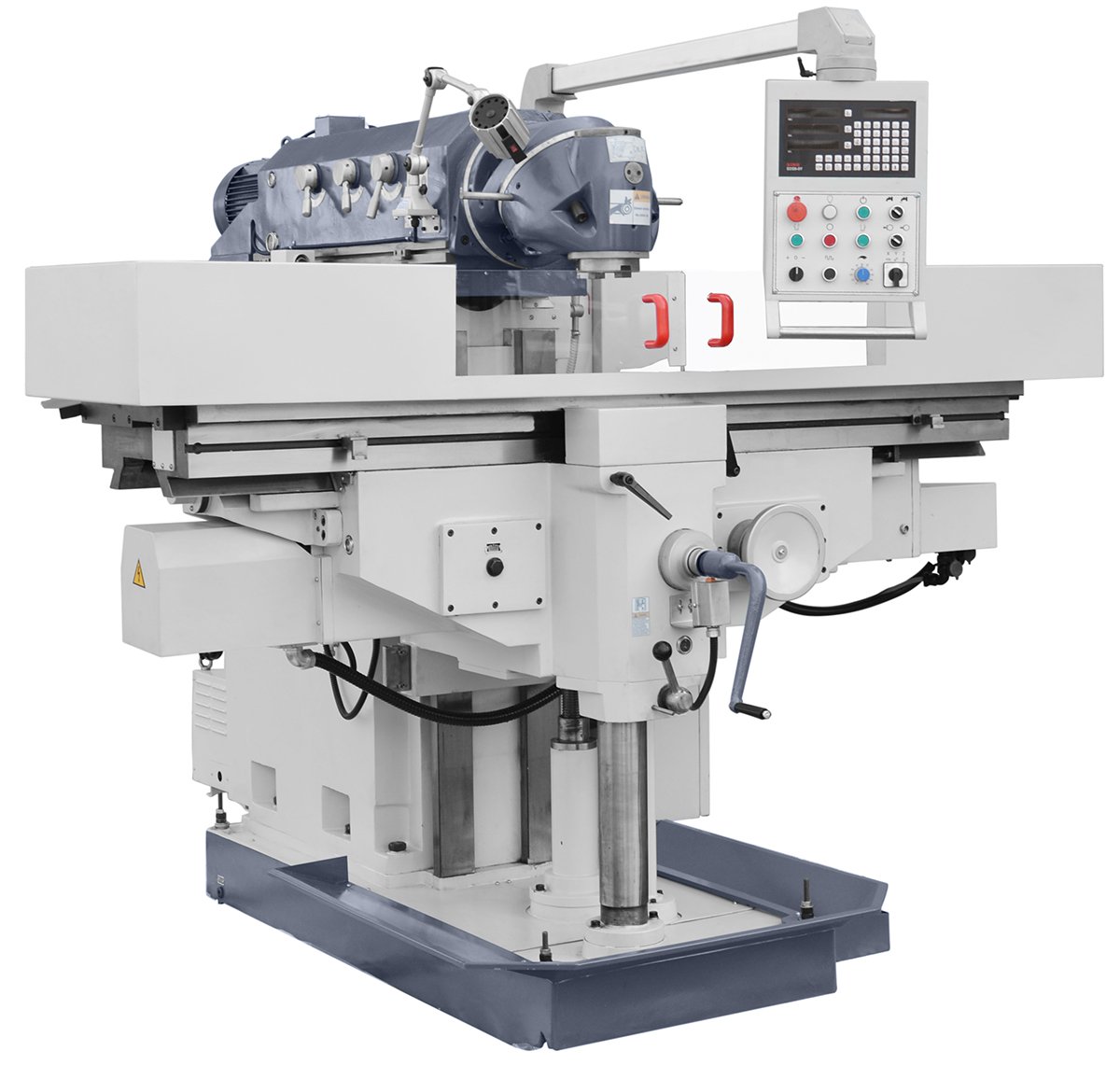

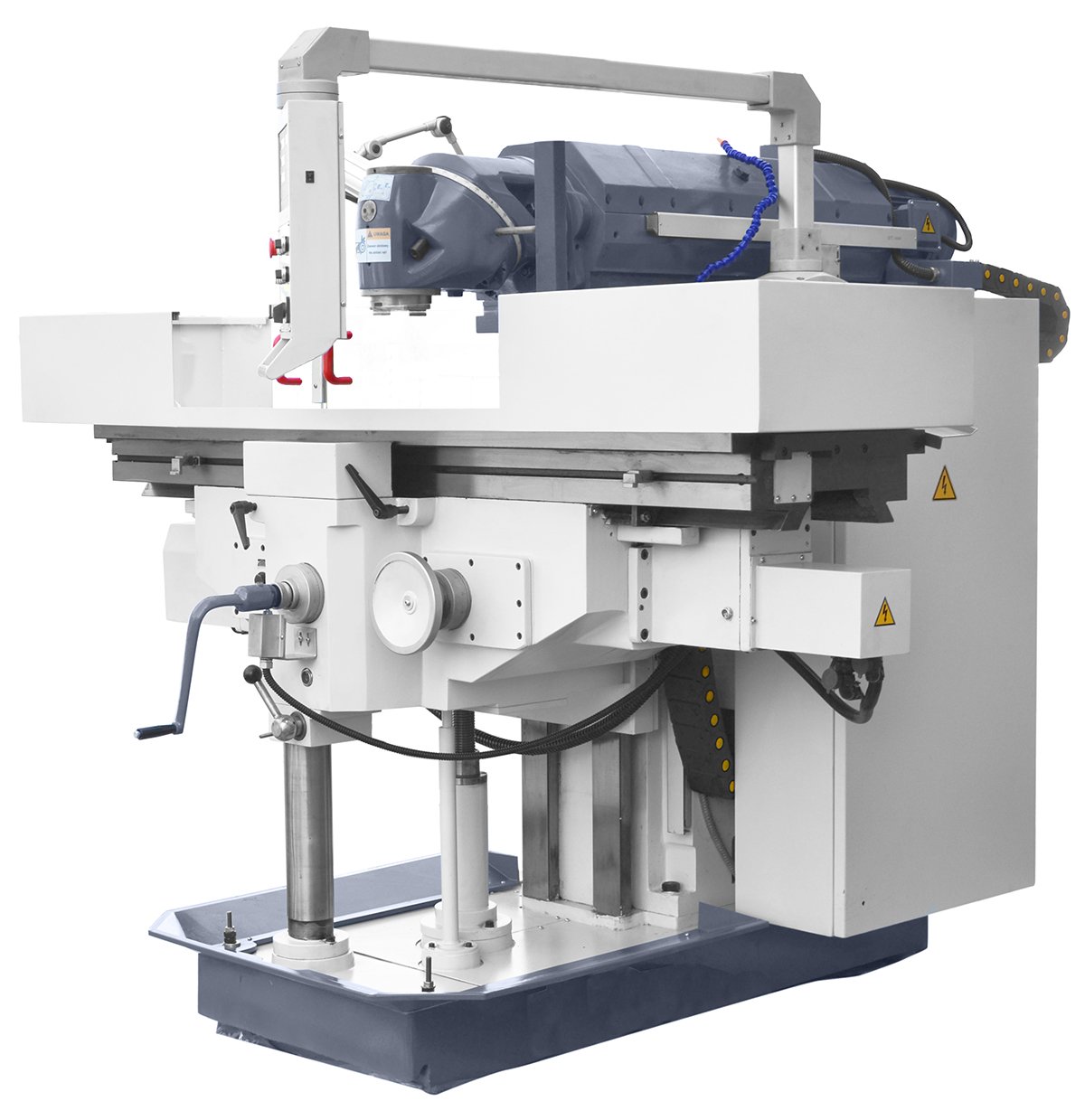

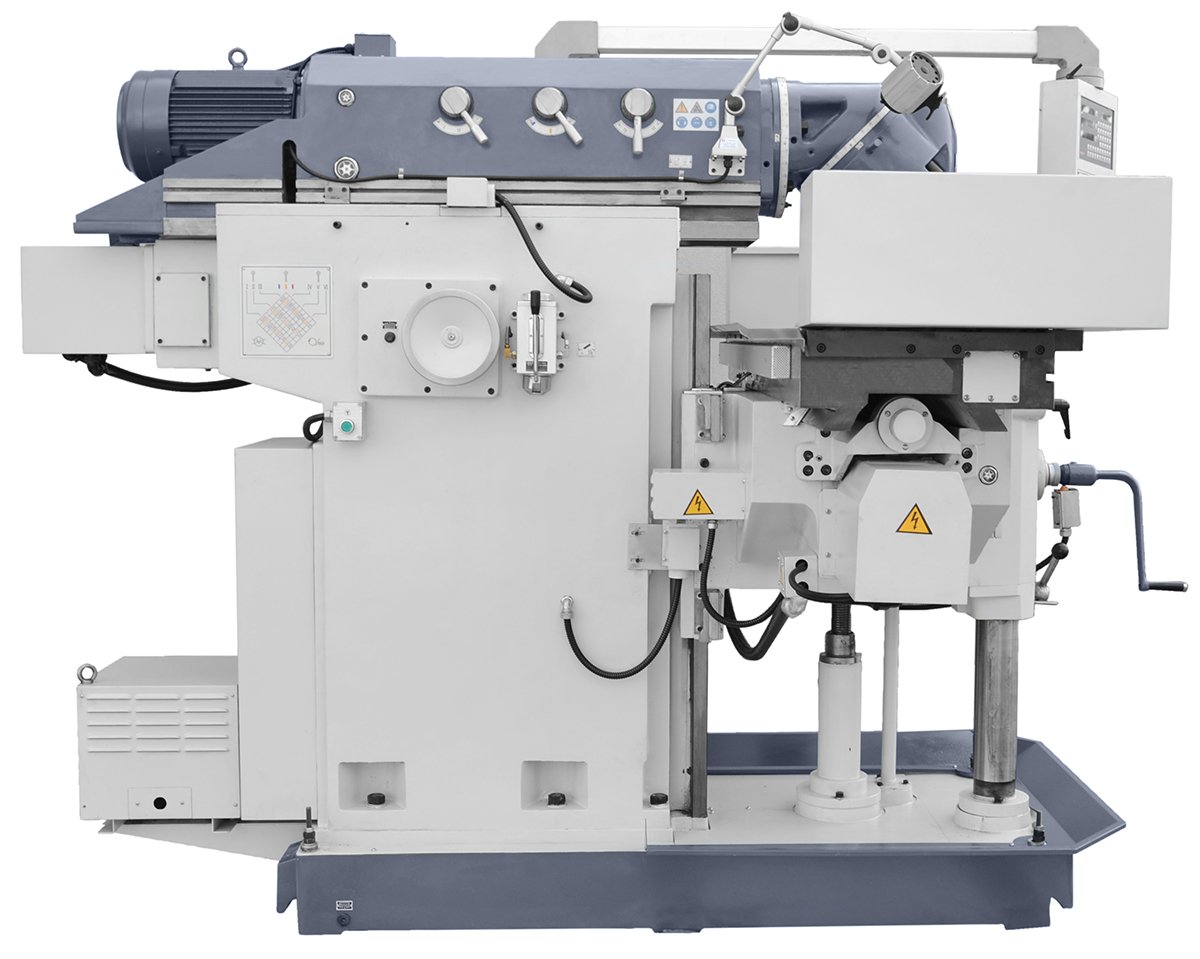

High-quality milling machines with a sturdy construction.

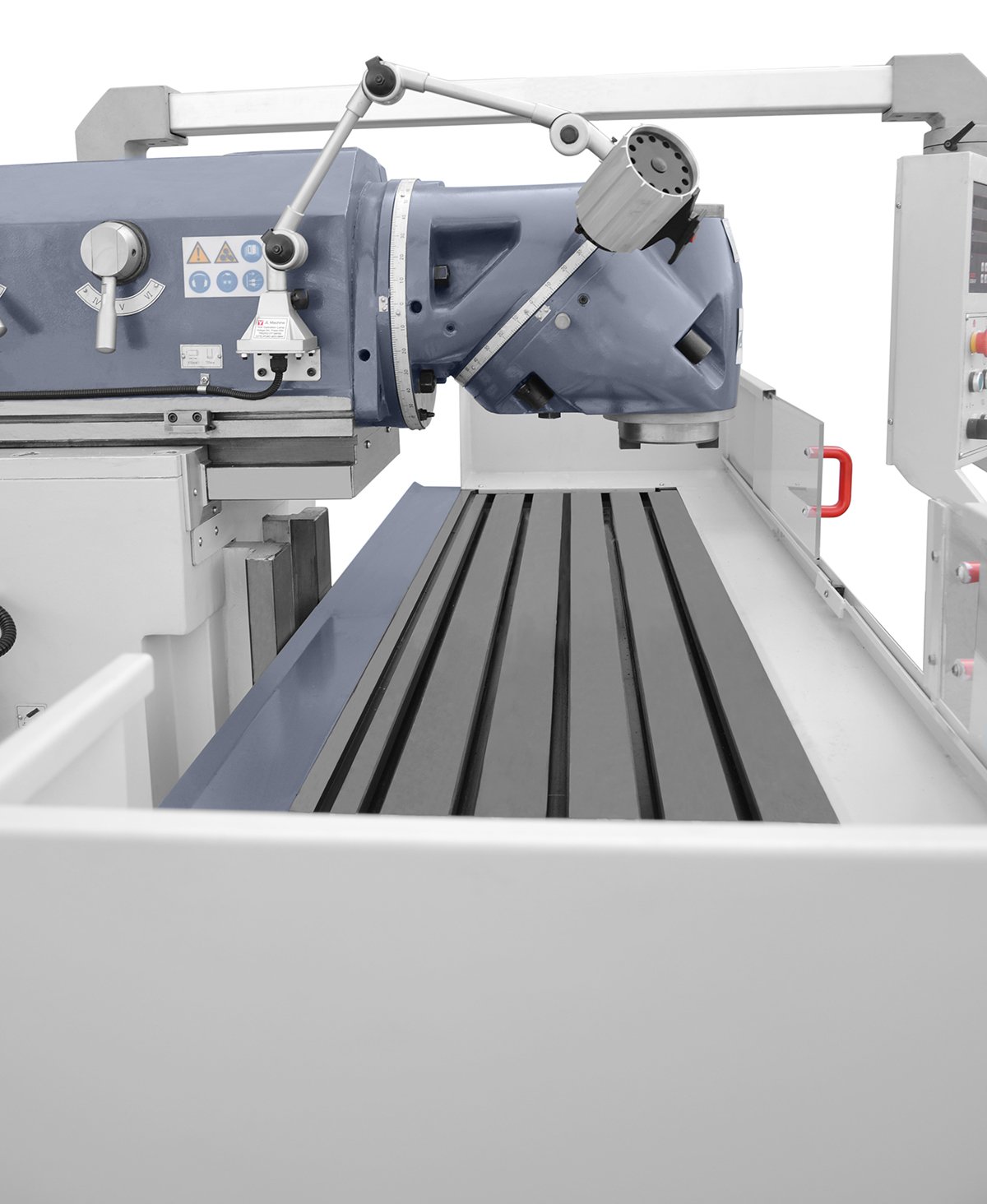

The large table allows the machining of parts with high weight to 1800 kg.
As drives in all axes used servo-motors and ball bolts.
Table dimensions | 500x2000 mm |
Table load capacity | 1800 kg |
Travel X-axis | 1400 mm |
Travel Y-axis | 700 mm |
Travel Z-axis | 500 mm |
Speed range | (27) 30 - 2050 min-1 |
Distance from spindle taper to table surface | 50 - 550 mm |
Swivel head | 360° |
Rapid feed X- axis | 2540 mm/min |
Rapid feed Y-axis | 2540 mm/min |
Rapid feed Z-axis | 1700 mm/min |
Rapid feed X-axis | 10 - 1000 mm/min |
Rapid feed Y-axis | 10 - 1000 mm/min |
Rapid feed Z-axis | 5 - 500 mm/min |
Power, main drive | 7.5 kW |
Overall dimensions | 2986x2260x2180 mm |
Weight | 6000 kg |

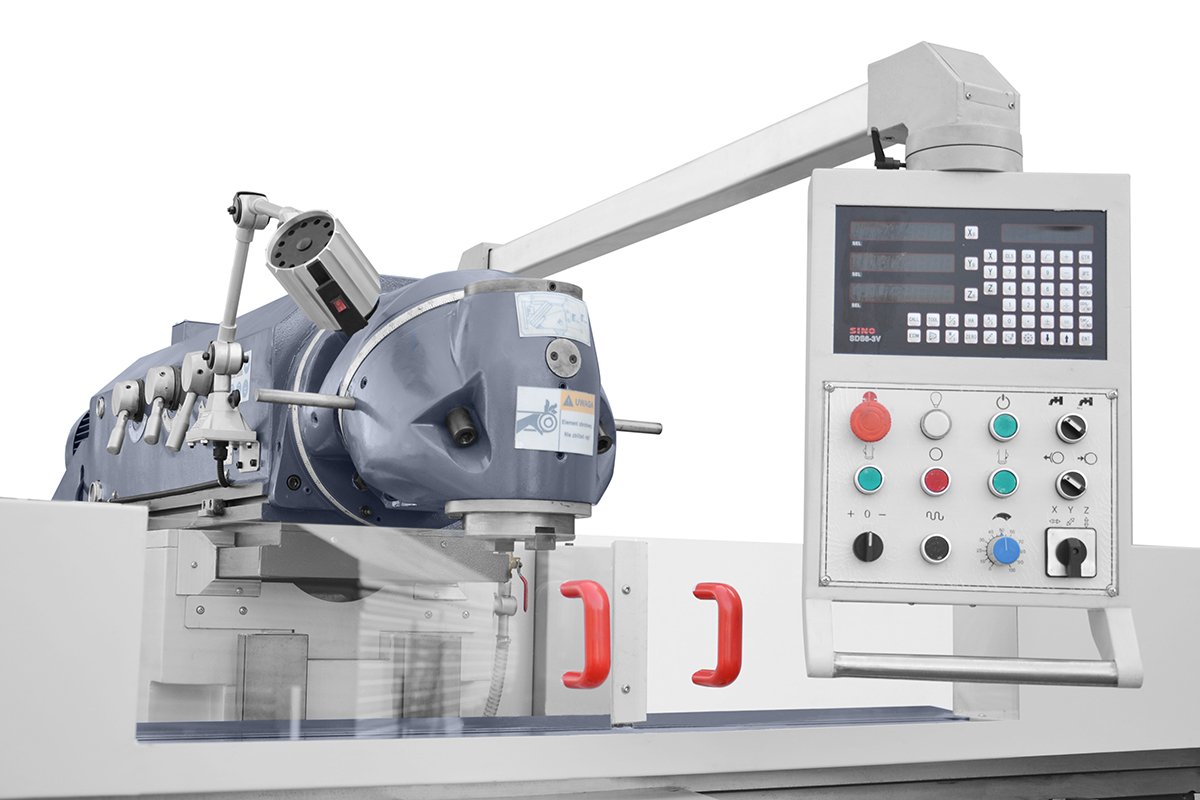

Digital readout for 3 axes

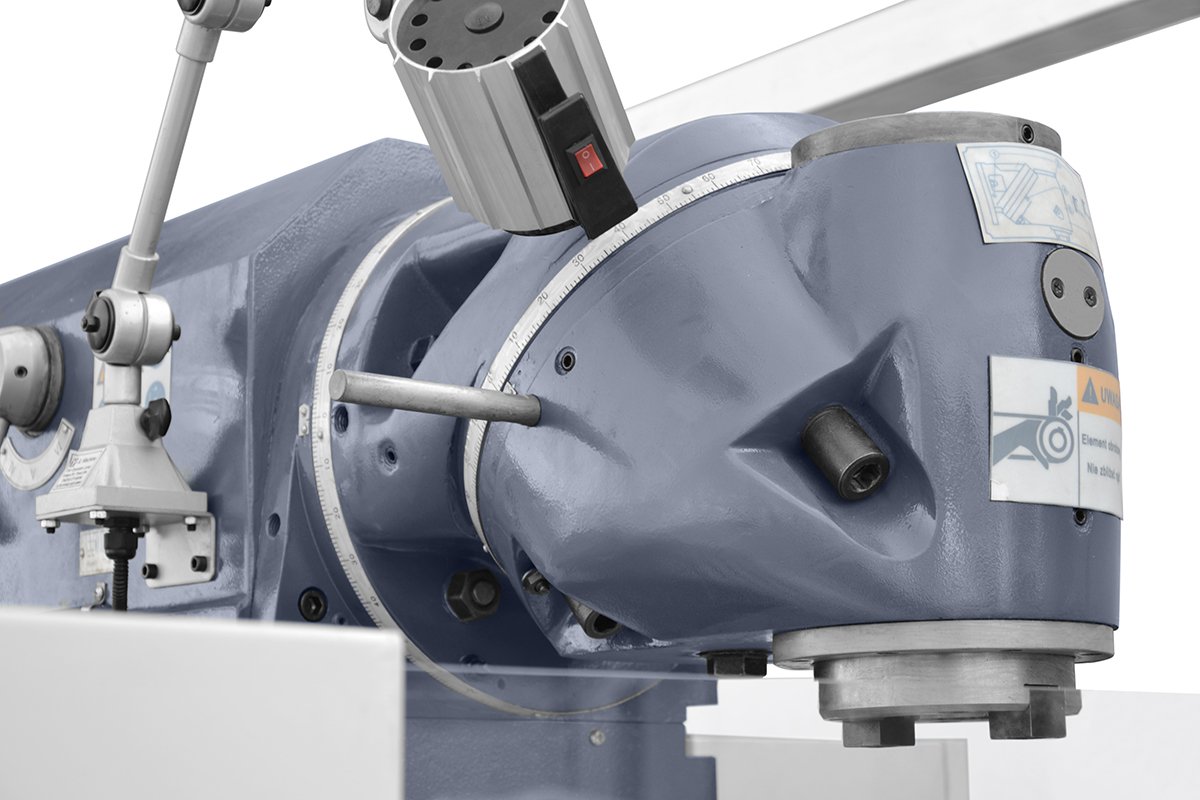

Universal swivel head
Milling fixture with clamps (Ø 5, 6, 8, 10, 12, 14, 16 mm)
Central lubrication
Cooling system
LED lamp
Tools
Instructions for use
