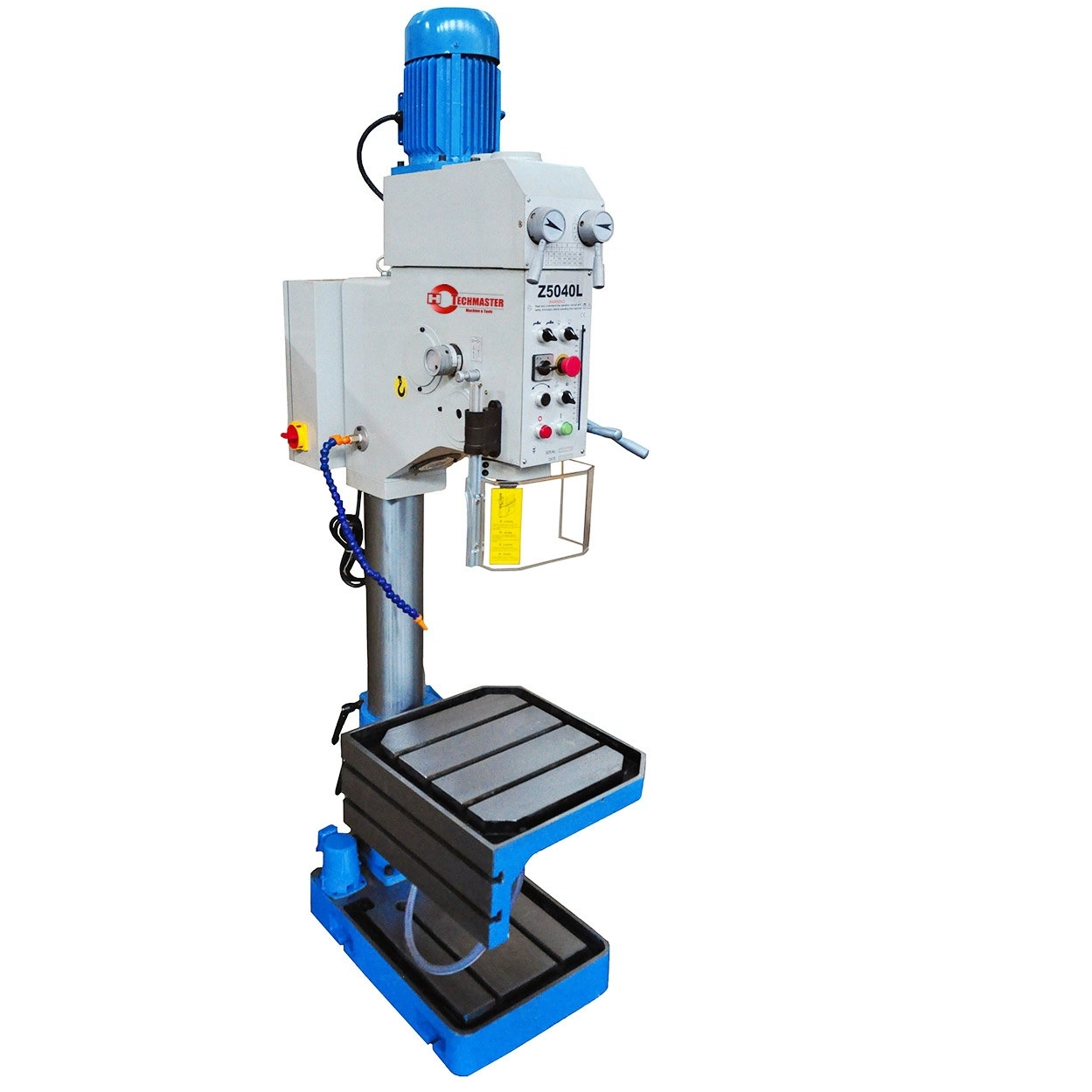

| Model | Unit | Z5040L |
| Max. Drilling dia. | mm | 40 |
| Max. Tapping dia. | mm | M27 |
| Column dia | mm | 160 |
| Max. Spindle shaft travel | mm | 180 |
| The spindle axis distance to column | no | 360 |
| Max.distance spindle nose up to table | R/min | 590 |
| Max.distance spindle nose up to base | mm | 1175 |
| Spindle morse | MT4 | |
| Spindle speed | R/min | 50-1450 |
| Spindle speed steps | 12 | |
| Table size | mm | 560X560 |
| Overall height | mm | 2330 |
| Main motor | w | 2200 |
| The gross | kg | 470 |
