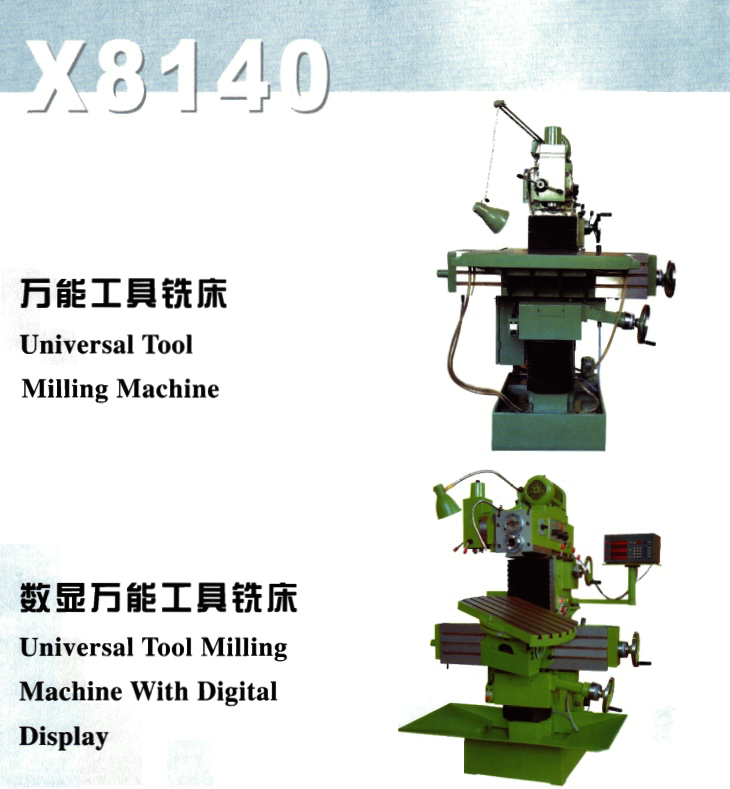

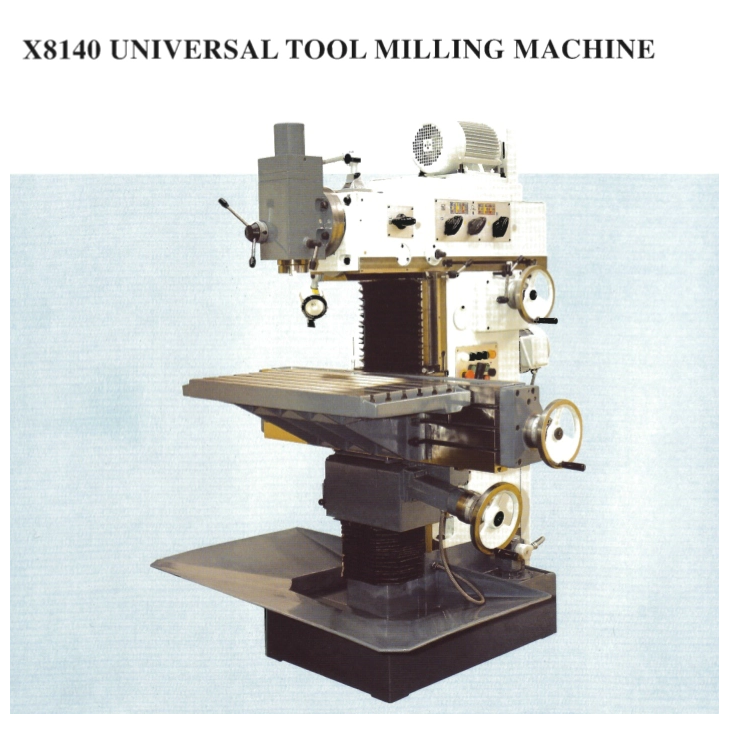

Industrial milling machine for mechanical construction. The controls are easily accessed on the right hand side of the machine. By turning the head away, the machine can be converted into a horizontal milling machine in no time. The table can be removed through 6 T bolts. Equipped with a heavy drill spindle. The ram can be moved. The head can be tilted to the left and right and has a graduation. Compact machine but very stable construction.
hardened guide ways
cooling system
central lubrication
halogen machine light
chip tray

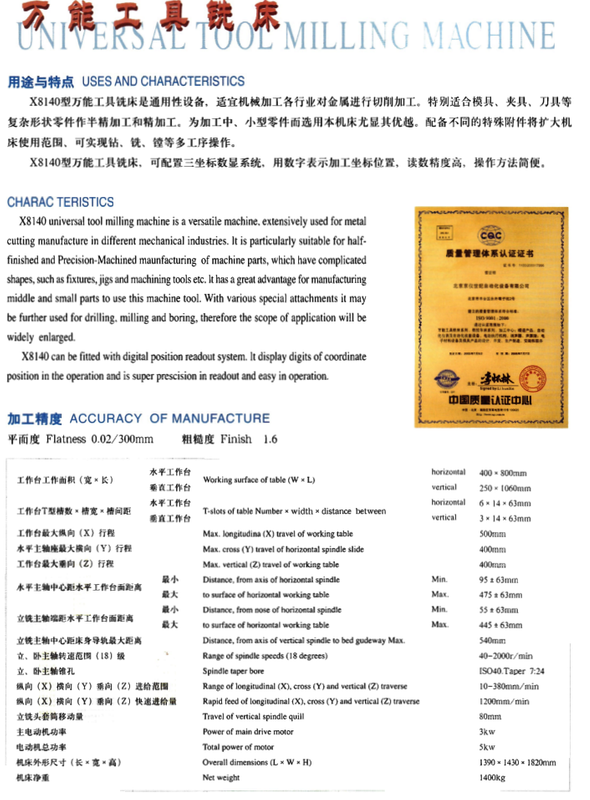

| Spindle taper | DIN 2080 ISO 40 |
|---|---|
| Spindle speed range vertical spindle | 40-2000 rpm |
| Motor power vertical | 3 kW |
| Longitudinal table travel | X-500 Y-400 Z-400 mm |
| Distance spindle column | 90-540 mm |
| Rapid travel | 1200 mm/min |
| Feed range | 10-380 mm/r |
| T-slots number/dimensions | 6, 14x63 mm |
| Distance spindle-table | 50-450 mm |
| Max. weight work piece | 300 kg |
| Table size | 800x400 lxw |
| Dimensions machine w x h x d | 1390x1430x1820 mm |
| Net weight | 1400 kg |
| Voltage | 400 V |
