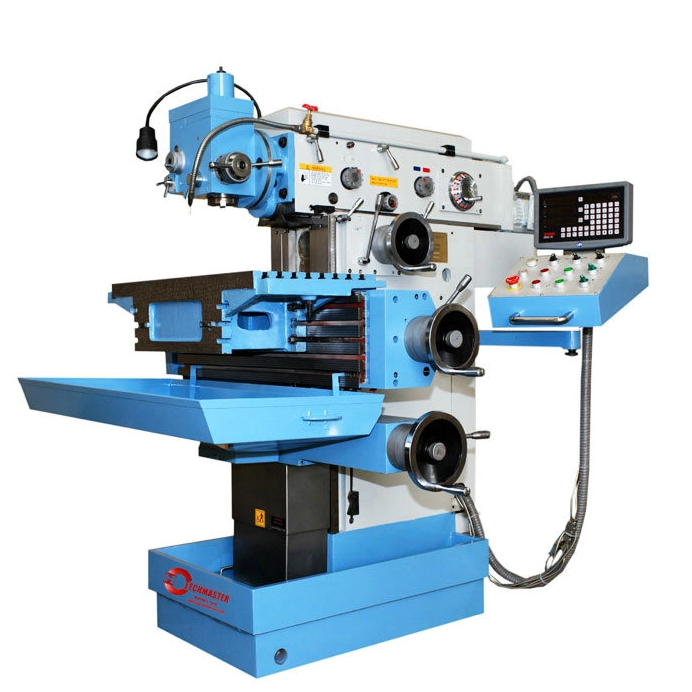

| n: | Feature: Heavy-duty Universal Tool Milling Machine, for tool and die construction, form and mold construction as well as for training use total price including 3-axis position indicator assembled
high machining quality and maximum reliability
separate feed gears with fine gradation and rapid feeds in all axes
large work table (800x400 mm) and travels up to 500x350x400 mm for maximum versatility
Extensive accessory package included
ribbed machine stand ensures maximum dynamic rigidity and constant precision
vertical setup table with 5 setup slots allows individual positioning of the sturdy, large work table
micro-tuning (18 steps) of spindle gears to maintain a constant optimum spindle speed
fine adjustments of work feeds and rapid feed on all axes ensure maximum versatility and productivity
the quill can be advanced manually or automatically (3 steps)
ergonomically arranged controls and a swivelling control panel plus standard digital position indicator for maximum operator comfort

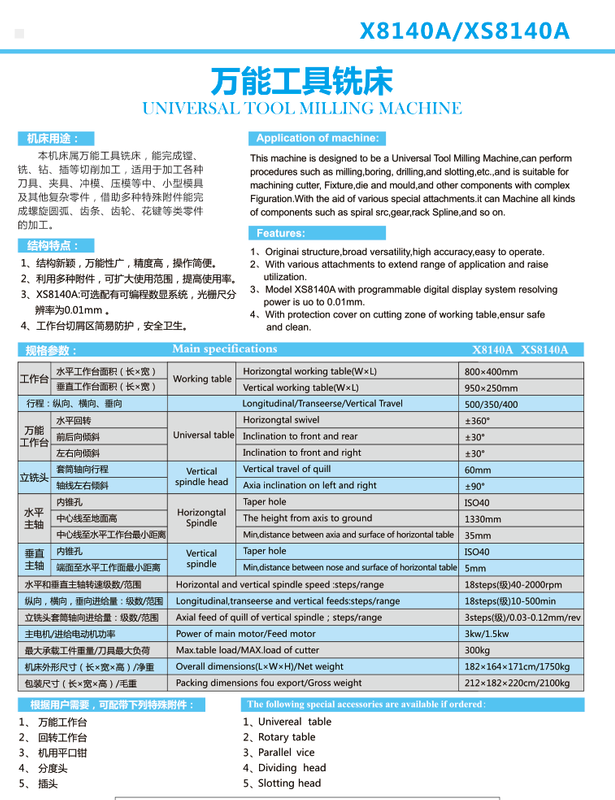

including automatic lubrication system XS8140A - Tool Milling Machine working area travel X-axis 500 mm travel Y-axis 350 mm travel Z-axis 400 mm table set up area 800x400 mm table load capacity (max.) 300 kg number of T-slots 8 Pieces T-slots, width 14 mm T-slots, spacing 45 mm feed rapid feed X-axis 1200 mm/min rapid feed Y-axis 1200 mm/min rapid feed Z-axis 1200 mm/min feed speed X-axis (18) 10 - 500 mm/min feed speed Y-axis (18) 10 - 500 mm/min feed speed Z-axis (18) 10 - 500 mm/min quill feeds 0,03 / 0,06 / 0,12 mm/R vertical milling head spindle speed (vertical) (18) 40 - 2000 rpm spindle mount (vertical) SK 40 quill stroke 60 mm throat 170 - 520 mm spindle nose-to-table surface distance 5 - 405 mm milling head swivel range 90 ° horizontal milling head spindle speed (horizontal) (18) 40 - 2000 rpm spindle mount (horizontal) SK 40 spindle axis-to-table surface distance 35 - 435 mm drive capacity motor rating main drive 3 kW motor rating feed 1,5 kW motor rating coolant pump 0,04 kW measures and weights overall dimensions 1820x1640x1710 mm weight 2300 kg , |
