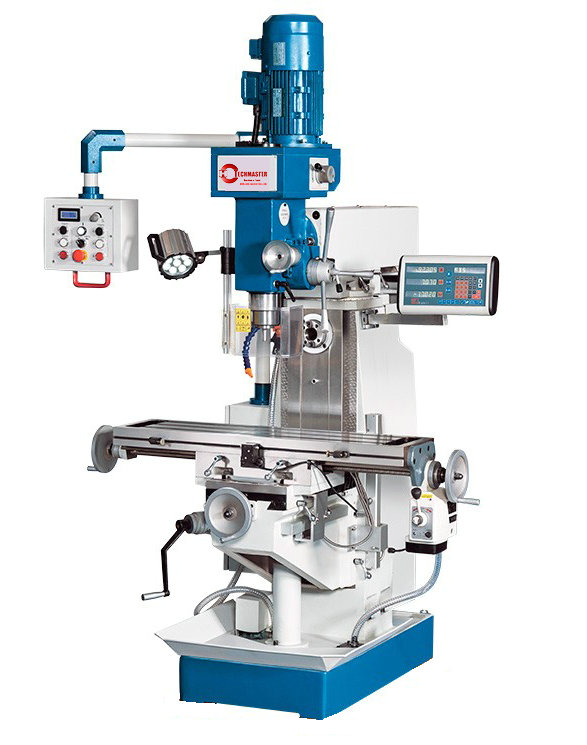

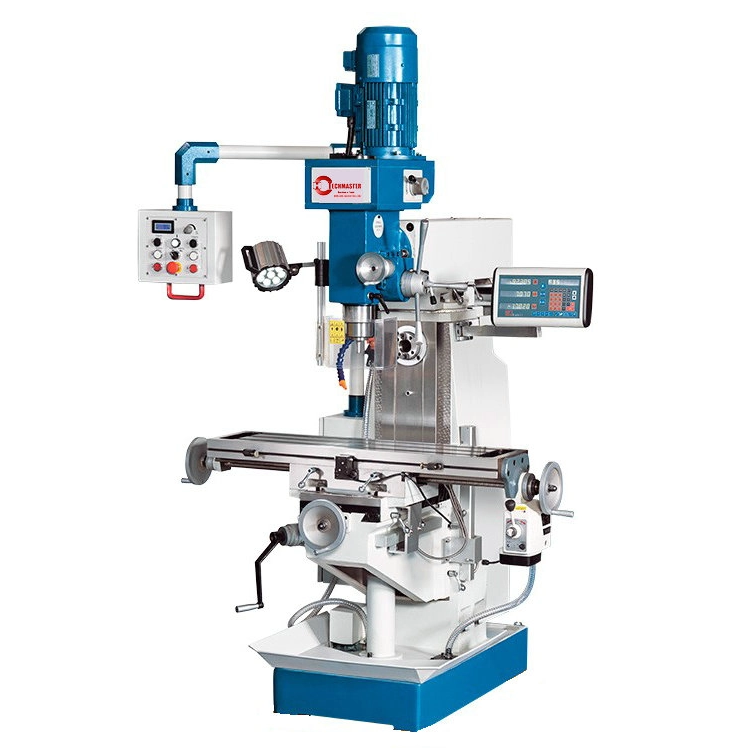

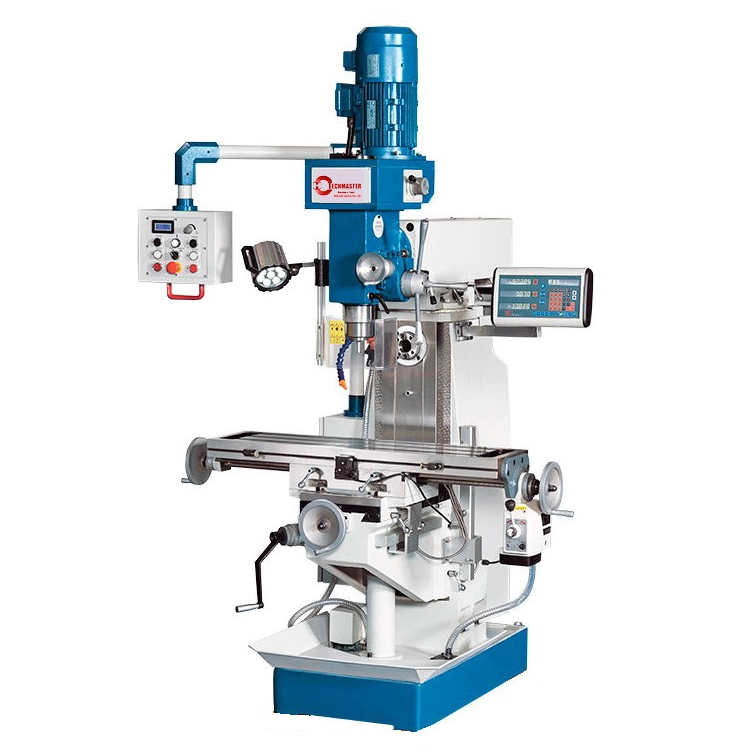

compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast iron
-Easy to shift back-gearing via 2-step gears integrated into the vertical cutter head, plus variable frequency for high torque at the main spindle
-Entire cutter head swivels ± 45°, quill movement via capstan handle, or quill micro-feed via hand-wheel
-Horizontal spindle features a quiet, low-maintenance v-belt drive
-Large setup table swivels horizontally
-Proven on X axis allows automatic advance and rapid feed of table, including infinitely variable speed and adjustable limit stops
-Coolant system and chip tray are included
Working area Drilling capacity Milling diameter in steel (max.) Table set up area | 30 mm 25 mm 1.000x240 mm |
|---|---|
Travels Travel X-axis Travel Y-axis Travel Z-axis | 600 mm 220 mm 320 mm |
Vertical milling head Spindle speed (vertical) Spindle mount (vertical) Quill stroke Throat Spindle nose-to-table surface distance | 100 - 2.000 rpm SK 40 120 mm 200 - 700 mm 65 - 385 mm |
Horizontal Milling Spindle Spindle speed (horizontal) Horizontal spindle-to-table surface distance | (9) 60 - 1.350 rpm 0 - 300 mm |
Drive capacity Motor rating horizontal spindle Motor rating vertical spindle | 2,2 kW 1,5 kW |
Measures and weights Overall dimensions Weight | 1.380x1.220x2.150 mm 1.000 kg |
