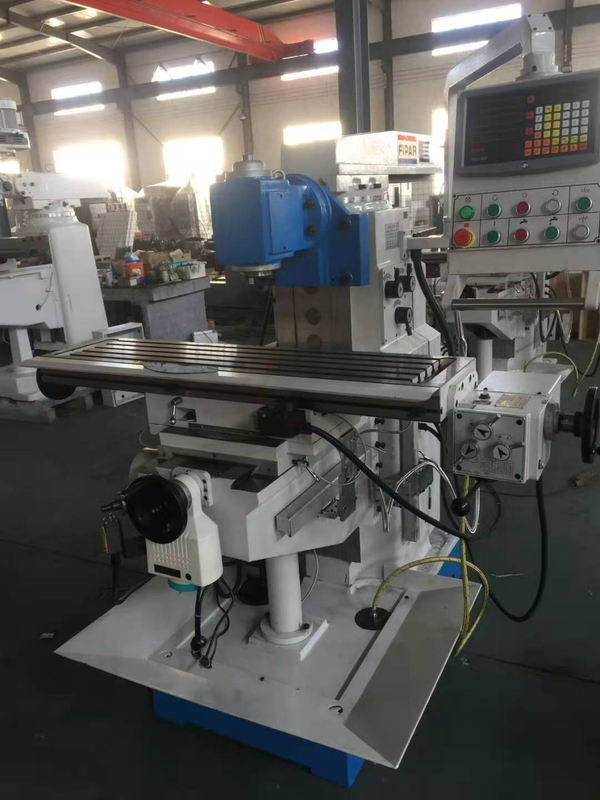

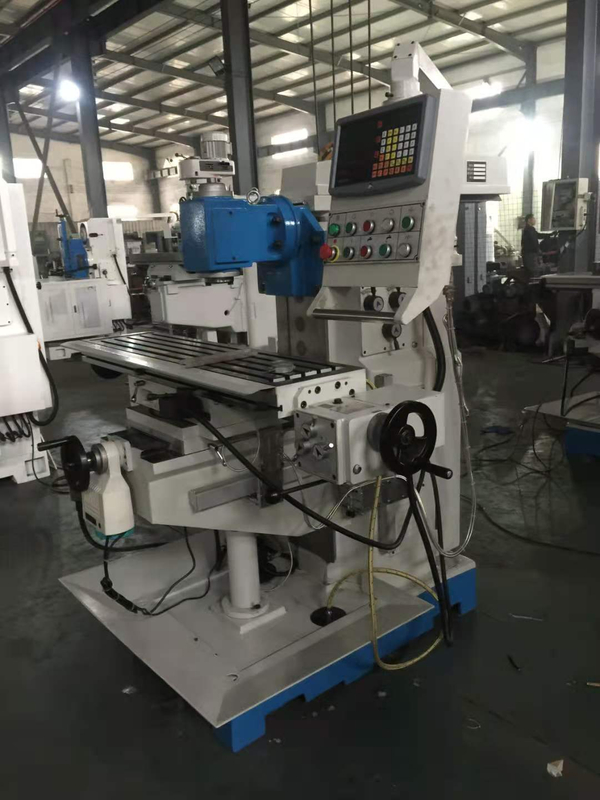

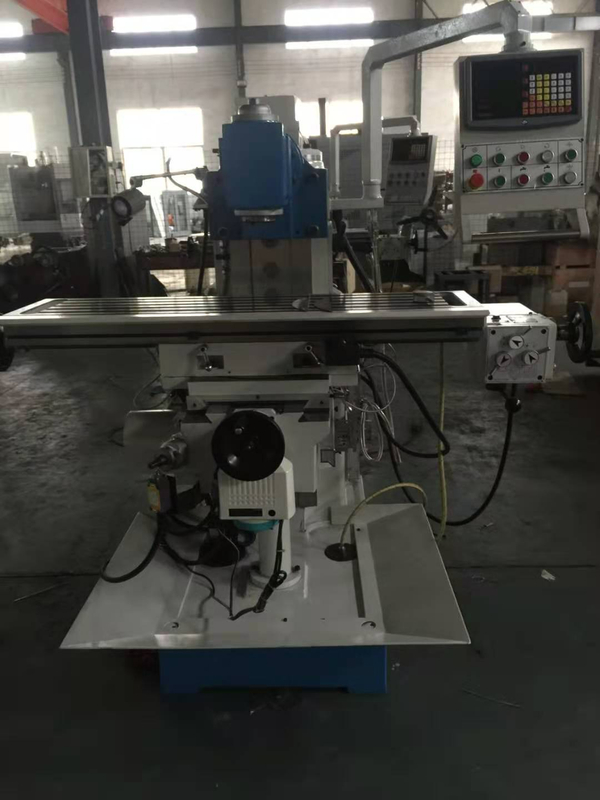

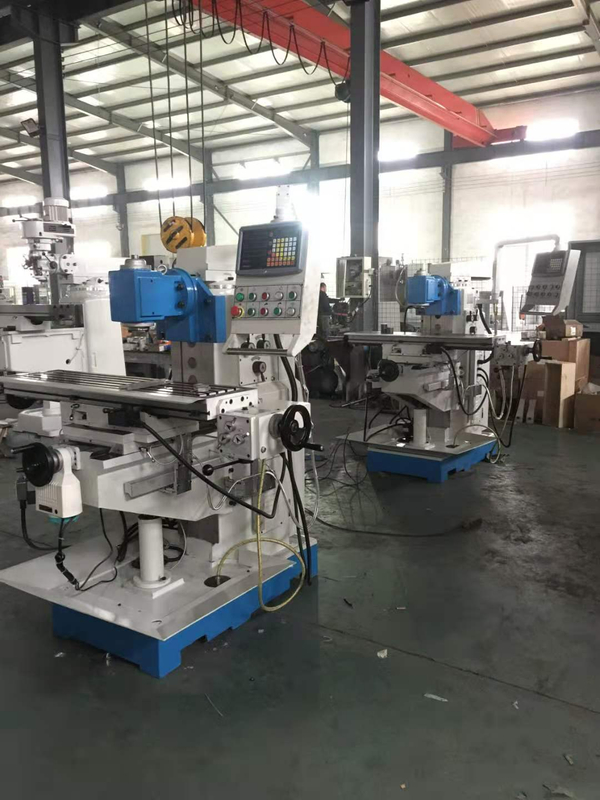

X6436A / X6436A-1( BIG WORKTABLE )
| Quantity: | |
|---|---|

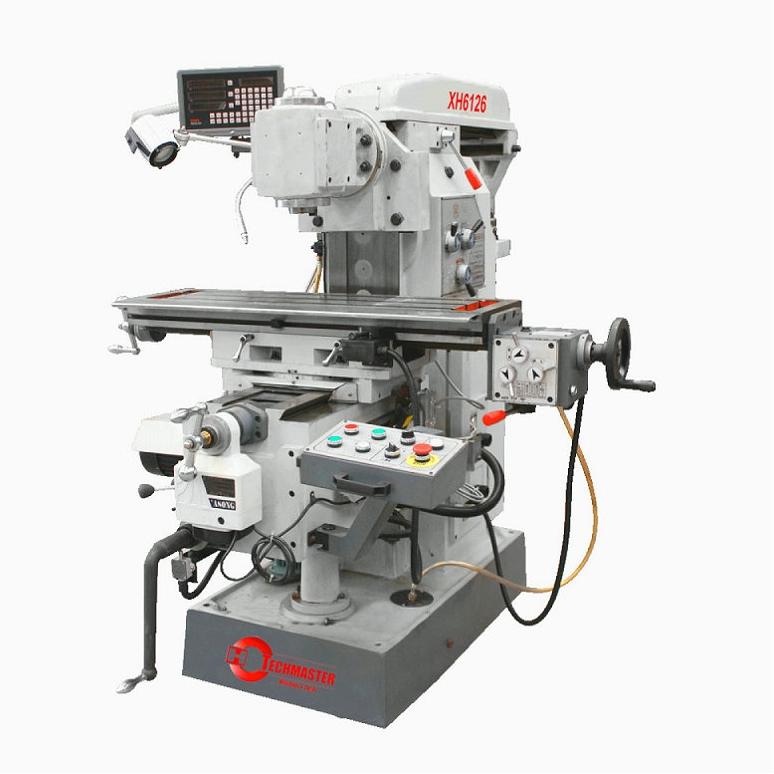

| Item | XH6126 | |
| Spindle taper | ISO40(V); ISO40(H) | |
| Distance from vertical spindle nose to table | 0-270mm | |
| Distance from horizontal spindle centerline to table | 0-280mm | |
| Spindle speed range | 12 steps, 40-1300r.p.m | |
| Swivel angle of milling head | ±45° | |
| Table size (L×W) | 1120×280mm | |
| Table travel (X/Y/Z) | 600/260/300MM | |
| Table longitudinal & cross feed (X) | 8 steps, 22-555mm/min | |
| X-axis rapid feed speed | 1080mm/min | |
| Feed motor power | 750W | |
| Max.loading of worktable | 300kg | |
| Table T-slots (No./Width/Pitch) | 3/14/70mm | |
| Z-axis guide way type | Rectangular | |
| Y-axis guide way type | Rectangular | |
| X-axis guide way type | Dovetail | |
| Main motor power | 2.2kw | |
| Overall dimensions (L×W×H) | 1700×1350×2050mm | |
| Packing size (one/two sets) | 1680×1400×2250mm | |
| N.W/G.W (one set) | 1100/1200kg |
| Item | XH6126 | |
| Spindle taper | ISO40(V); ISO40(H) | |
| Distance from vertical spindle nose to table | 0-270mm | |
| Distance from horizontal spindle centerline to table | 0-280mm | |
| Spindle speed range | 12 steps, 40-1300r.p.m | |
| Swivel angle of milling head | ±45° | |
| Table size (L×W) | 1120×280mm | |
| Table travel (X/Y/Z) | 600/260/300MM | |
| Table longitudinal & cross feed (X) | 8 steps, 22-555mm/min | |
| X-axis rapid feed speed | 1080mm/min | |
| Feed motor power | 750W | |
| Max.loading of worktable | 300kg | |
| Table T-slots (No./Width/Pitch) | 3/14/70mm | |
| Z-axis guide way type | Rectangular | |
| Y-axis guide way type | Rectangular | |
| X-axis guide way type | Dovetail | |
| Main motor power | 2.2kw | |
| Overall dimensions (L×W×H) | 1700×1350×2050mm | |
| Packing size (one/two sets) | 1680×1400×2250mm | |
| N.W/G.W (one set) | 1100/1200kg |
