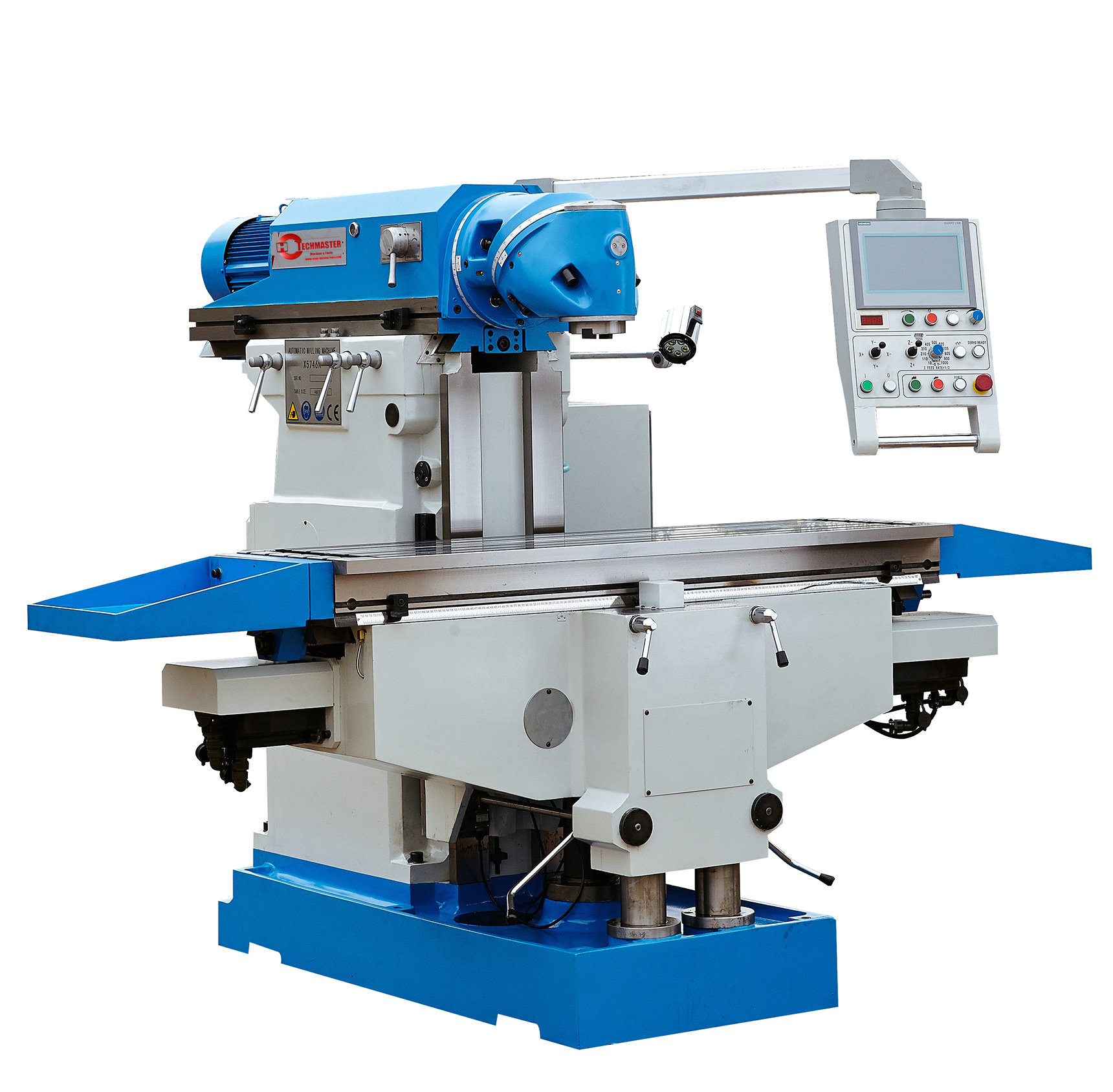

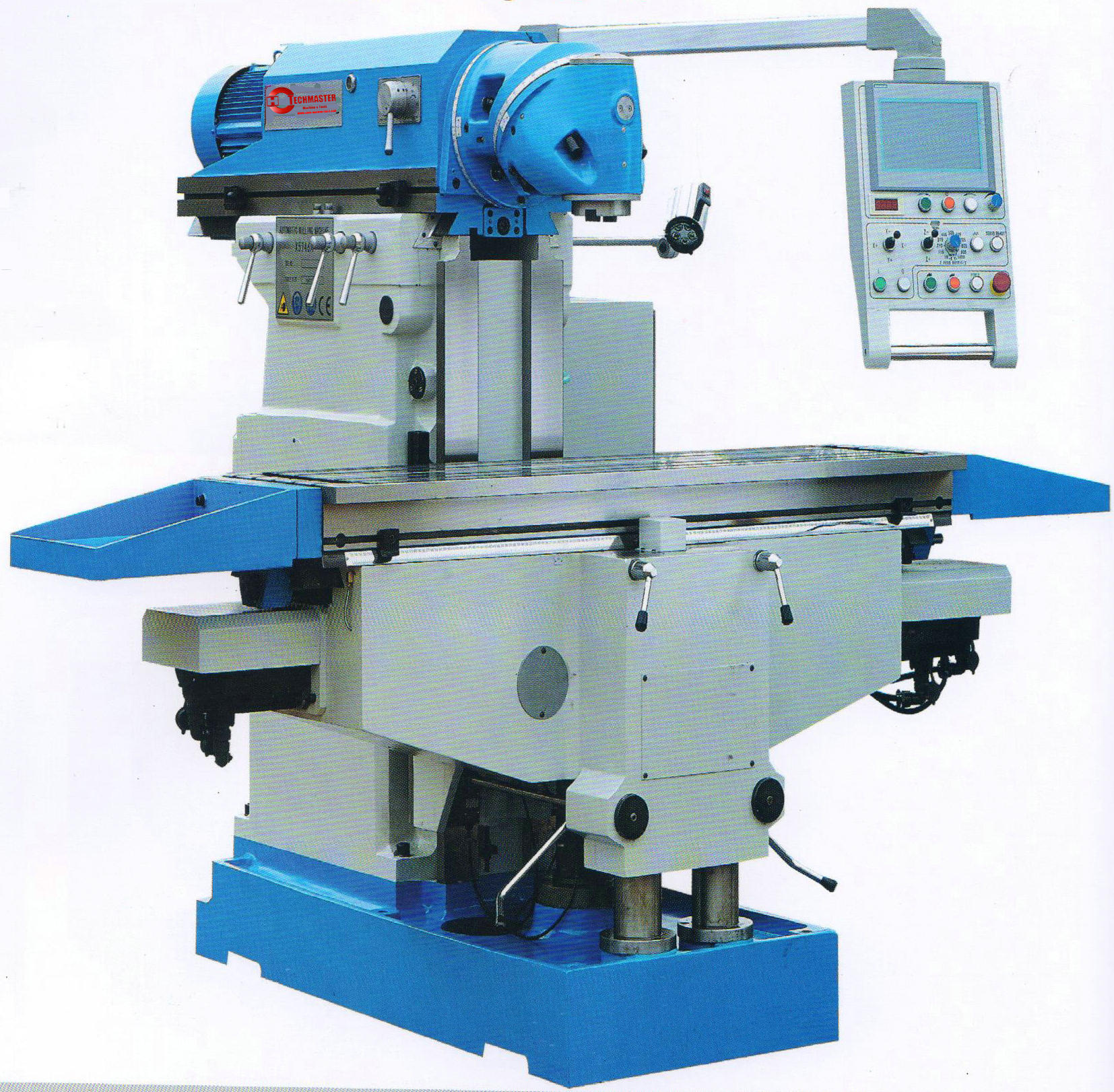

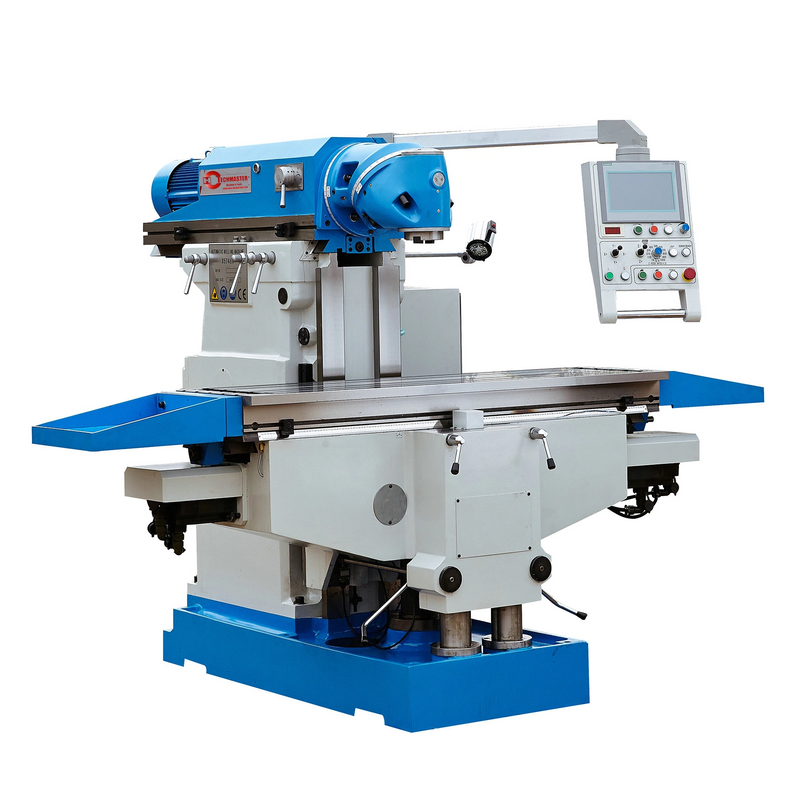

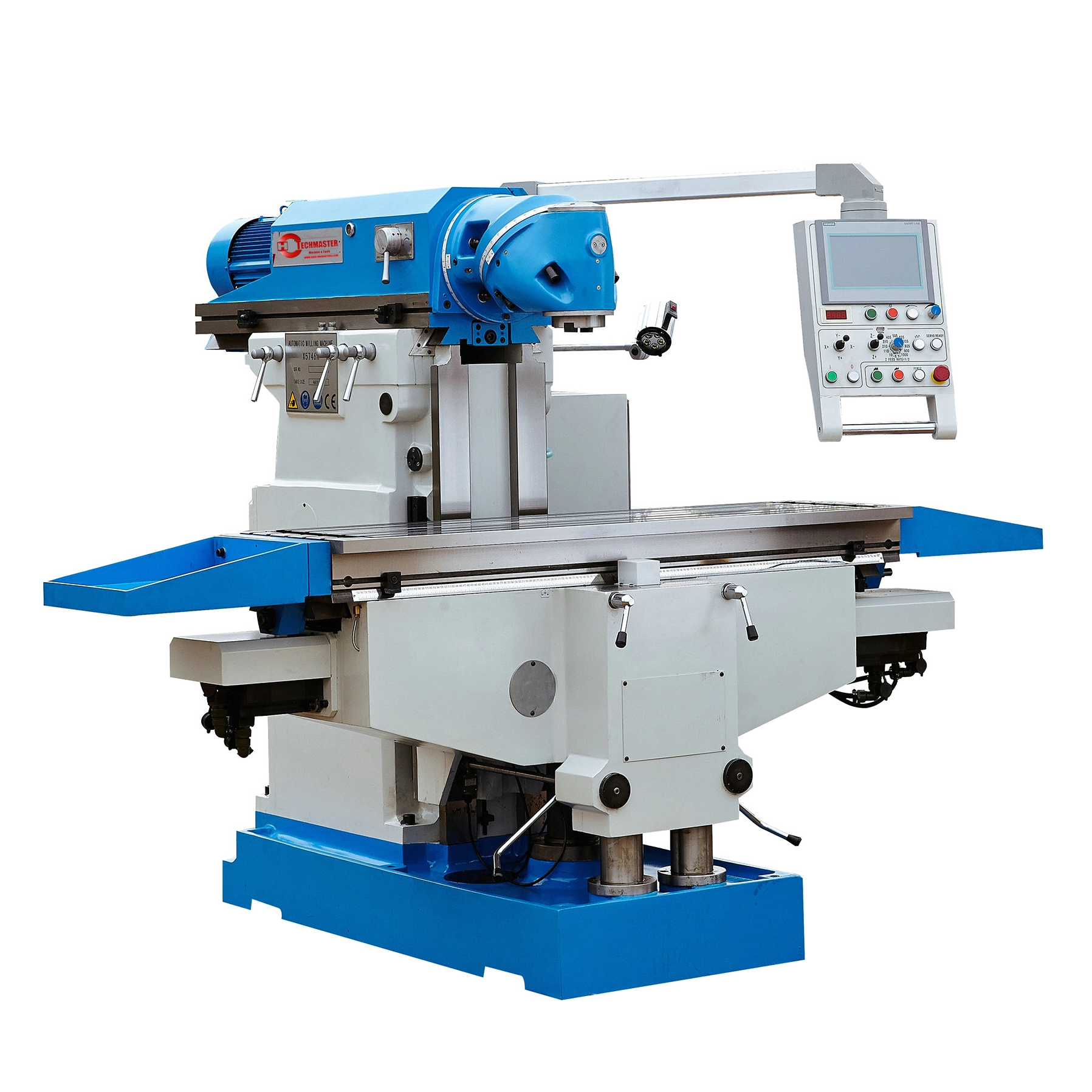

X5750A /X5750A-1(BIGGER WORKTABLE)
| Quantity: | |
|---|---|
| specification |
| units | X5750A |
| table size |
| mm | 1635x500 |
| table X/Y |
| mm | 1300/470 |
| Max.load of table |
| kgs | 1500 |
| "T" slot(n./width) |
| mm | 5/18 |
| distance of "T"slot |
| mm | 80 |
| spindle taper |
|
| ISO50 |
| distance from spindle nose to table surface |
| mm | 40-510 |
| distance from spindle axis to column guideway |
| mm | 70-670 |
| ram travel |
| mm | 600 |
| spindle speed |
| r.p.m | 53-1800 |
| table and ram feeding step |
|
| step less |
| table feed speed | longitudinal | mm/min | 10-1200 |
| vertical | mm/min | 5-600 | |
| ram feeding rate |
| mm/min | 10-1200 |
| table feed speed | longitudinal | mm/min | 2500 |
| vertical | mm/min | 1200 | |
| ram fast feeding rate |
| mm/min | 2500 |
| main motor power |
| kw | 7.5 |
| feeding motor power X,Y,Z |
| N/m | 18,18,22 |
| overall size(L*W*H) |
| mm | 2000x2100x2200 |
| net weight |
| kg | 3500 |
| specification |
| units | X5750A/1 |
| table size |
| mm | 2000x500 |
| table X/Y |
| mm | 1500/470 |
| Max.load of table |
| kgs | 1500 |
| "T" slot(n./width) |
| mm | 5/18 |
| distance of "T"slot |
| mm | 80 |
| spindle taper |
|
| ISO50 |
| distance from spindle nose to table surface |
| mm | 40-510 |
| distance from spindle axis to column guideway |
| mm | 70-670 |
| ram travel |
| mm | 600 |
| spindle speed |
| r.p.m | 53-1800 |
| table and ram feeding step |
|
| step less |
| table feed speed | longitudinal | mm/min | 10-1200 |
| vertical | mm/min | 5-600 | |
| ram feeding rate |
| mm/min | 10-1200 |
| table feed speed | longitudinal | mm/min | 2500 |
| vertical | mm/min | 1200 | |
| ram fast feeding rate |
| mm/min | 2500 |
| main motor power |
| kw | 7.5 |
| feeding motor power X,Y,Z |
| N/m | 18,18,22 |
| overall size(L*W*H) |
| mm | 2000x2100x2200 |
| net weight |
| kg | 3500 |
