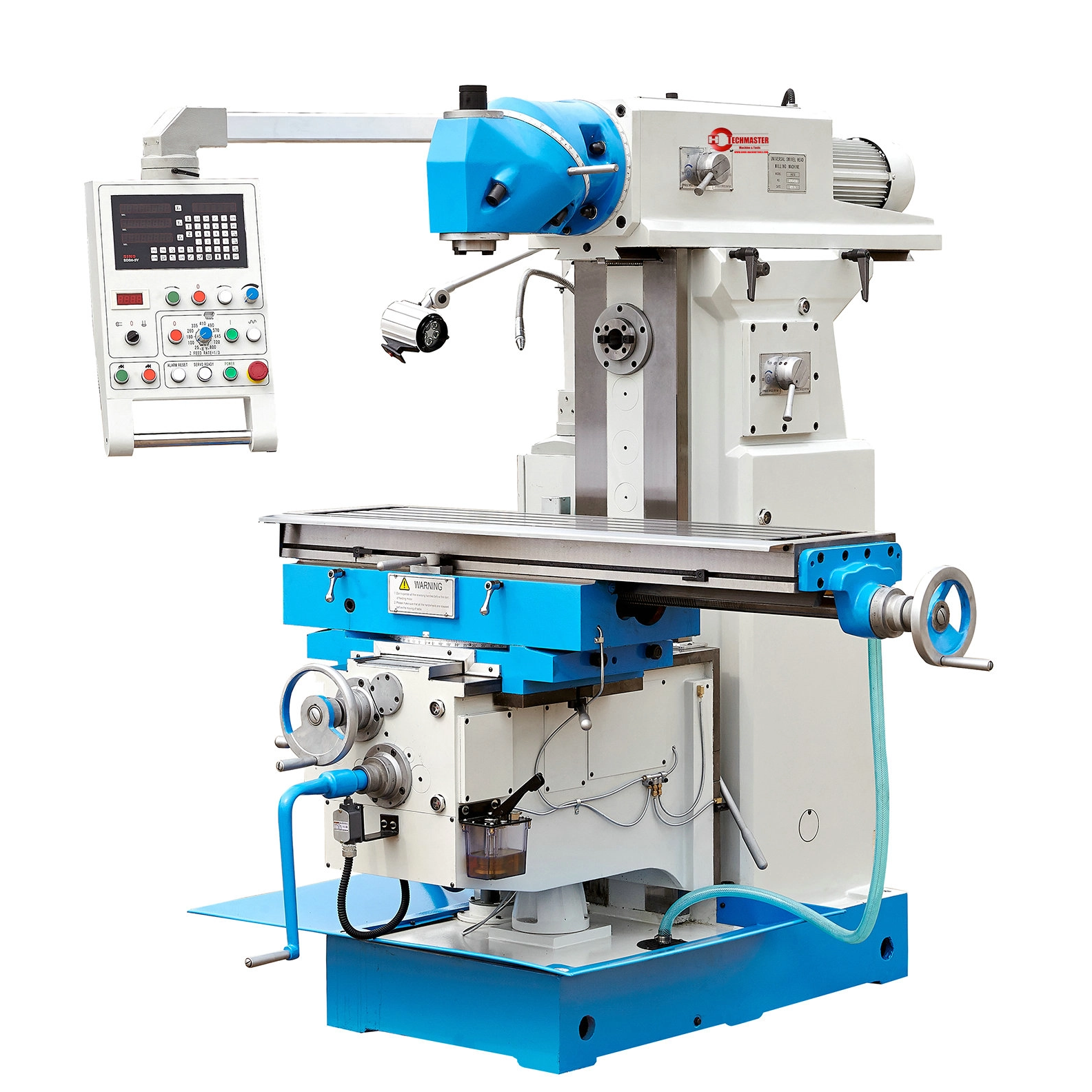

X6232
| Quantity: | |
|---|---|
1. This milling machine with universal milling head which can swivel 360 degress
2. table surface is hardened and ground surface
3.X,Y,Z servo motor drive; vertical and horizontal headstock drived by inverter motor
| unit | X6232 | |
| Table size | mm | 1320x320 |
| T slot no./width/distance | no/mm/mm | 3/14/63 |
| Max. load of Table | kg | 300 |
| table Longitudinal travel(manual/auto) | mm | 800 |
| table Cross travel (manual/auto) | mm | 290 |
| table Vertical travel(manual/auto) | mm | 400 |
| Spindle taper |
| ISO40 |
| variable speed-- Vertical | rpm | 75--1600 |
| --Horizontal | rpm | 75--1600 |
| Distance horizontal spindle axis to table surface | mm | 170-590 |
| Disatance from spinlde axis to column guideway | mm | 240-740 |
| swivel angle of swivel head | degree | 360º |
| Ram travel | mm | 500 |
| Table feeding rate | mm | 25-800 |
| main motor | kw | 4 |
| |
