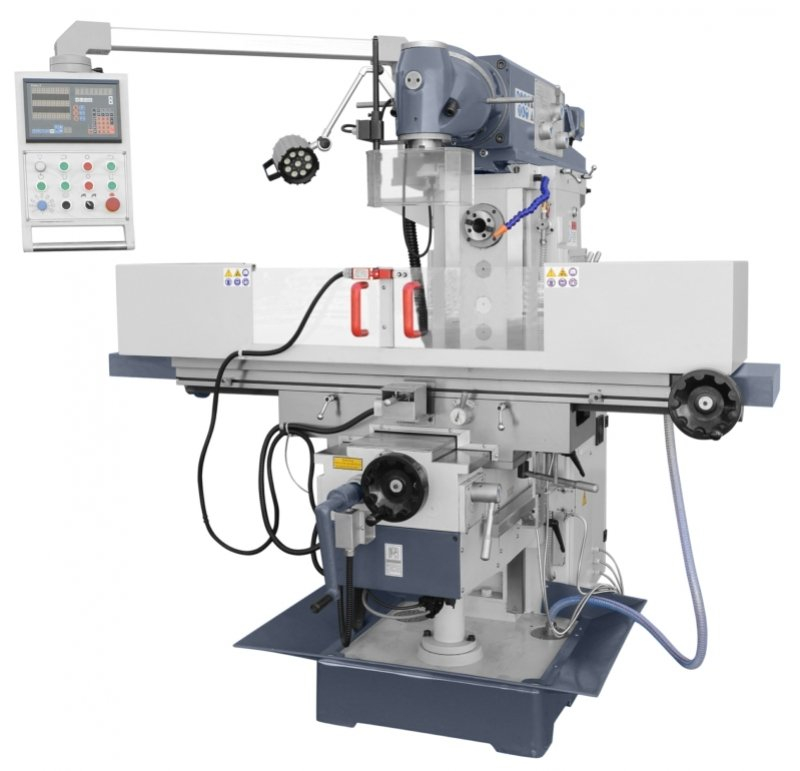

Universal milling machine UWF 130 SERVO
| Quantity: | |
|---|---|
| TABLE WORKING DIMENSIONS | 1370x320 mm |
| T-SLOTS SIZE | 3 / 14 mm / 80 mm |
| HORIZONTAL/VERTICAL ARBOR HOLDER | ISO 40 |
| HORIZONTAL ARBOR SPEED | (12) 35 - 1500 rpm |
| VERTICAL ARBOR SPEED | (11) 45 - 1660 rpm |
| TILT FACE MILLING CUTTERS | 360° |
| FEED LONGITUDINAL (X) | 1000 mm |
| CROSS FEED (Y) | 360 mm |
| VERTICAL FEED (Z) | 400 mm |
| VERTICAL ARBOR/TABLE SPACING | 30 - 430 mm |
| ARBOR/COLUMN SPACING | 305 - 805 mm |
| TILT TABLE | -45° to +45° |
| MAXIMUM TABLE LOAD | 300 kg |
| FEED LONGITUDINAL | (8) 30 - 830 mm/min |
| FEED CROSS | (8) 30 - 830 mm/min |
| VERTICAL FEED RANGE | (8) 23 - 625 mm/min |
| QUICK FEED X AXIS | 1000 mm/min |
| QUICK FEED Y AXIS | 1000 mm/min |
| QUICK FEED Z AXIS | 750 mm/min |
| HORIZONTAL SPINDLE MOTOR | 4.0 kW |
| VERTICAL SPINDLE MOTOR | 4.0 kW |
| SERVOMOTOR POWER (FEED) | 10 Nm / 1.5 kW |
| FLOOD COOLANT PUMP POWER | 90W |
| COOLING SYSTEM EFFICIENCY | 25 l/min |
| DIMENSIONS | 1840 x 1830 x 2050 mm |
| WEIGHT | 2360 kg |
