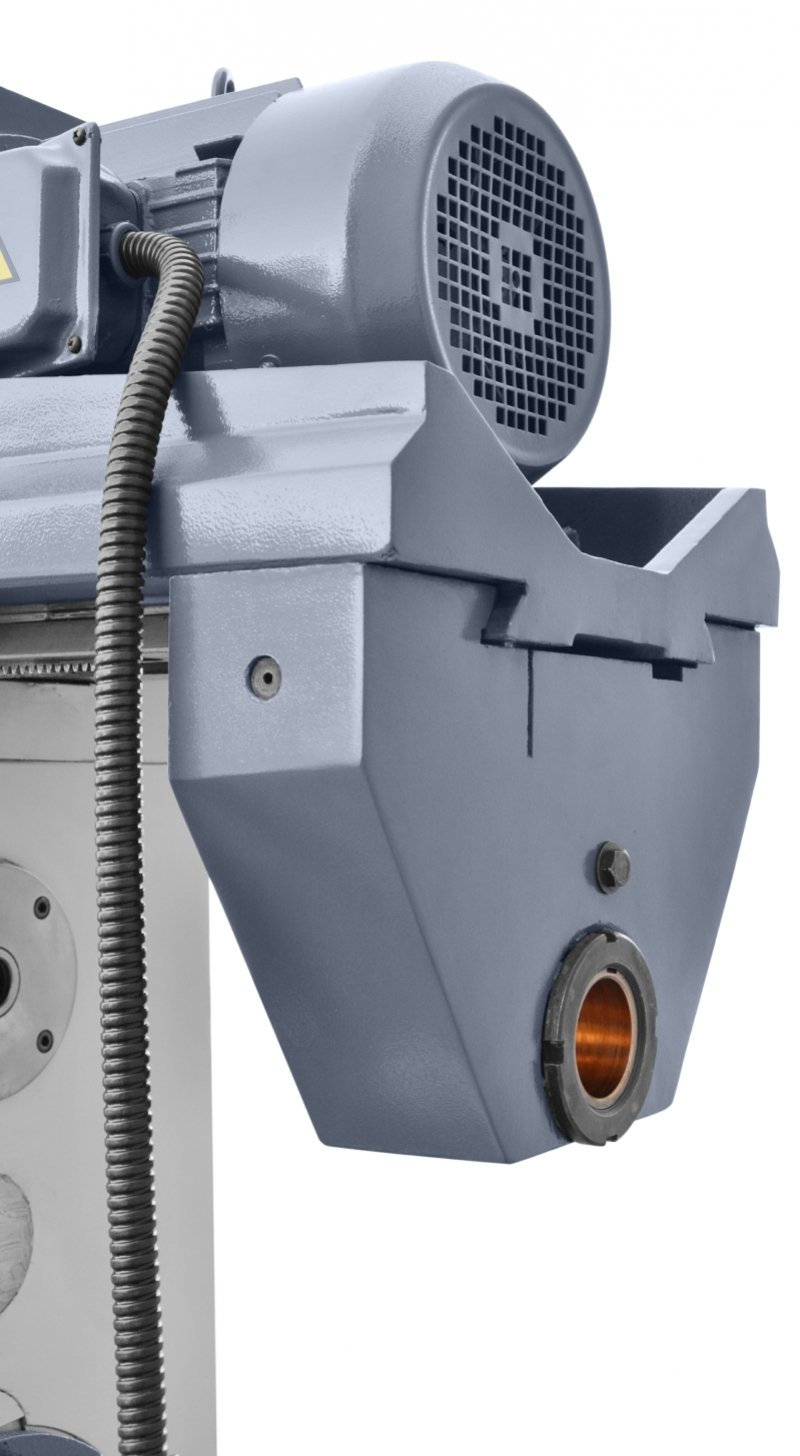

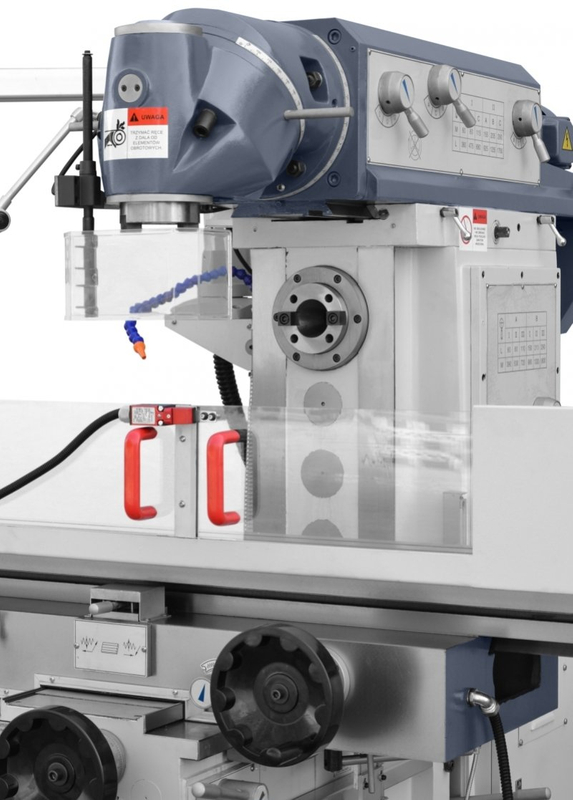

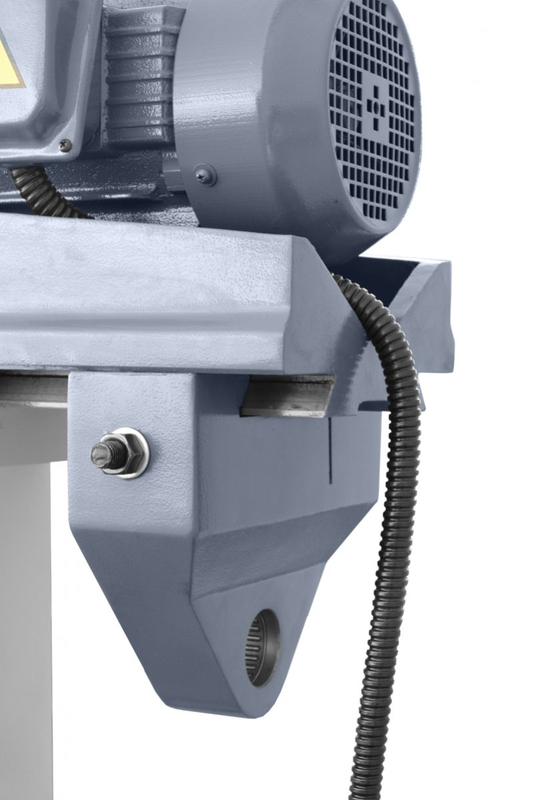

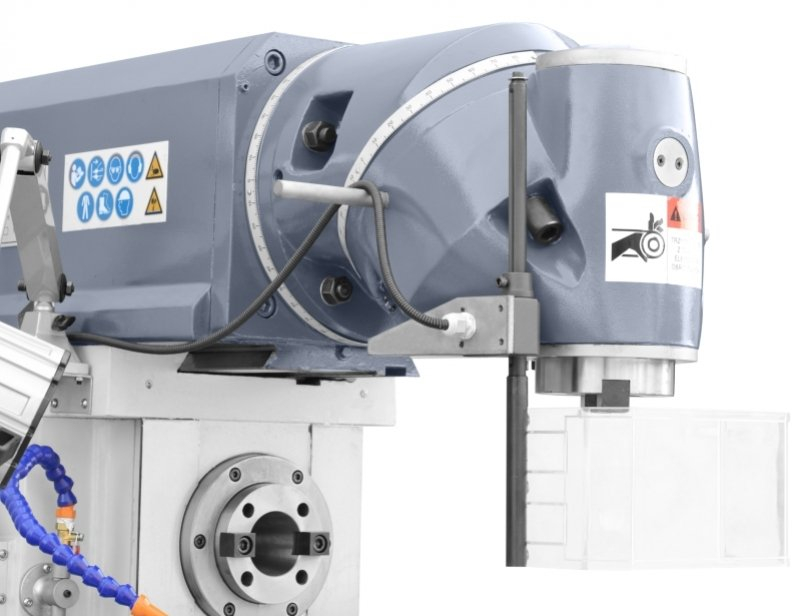

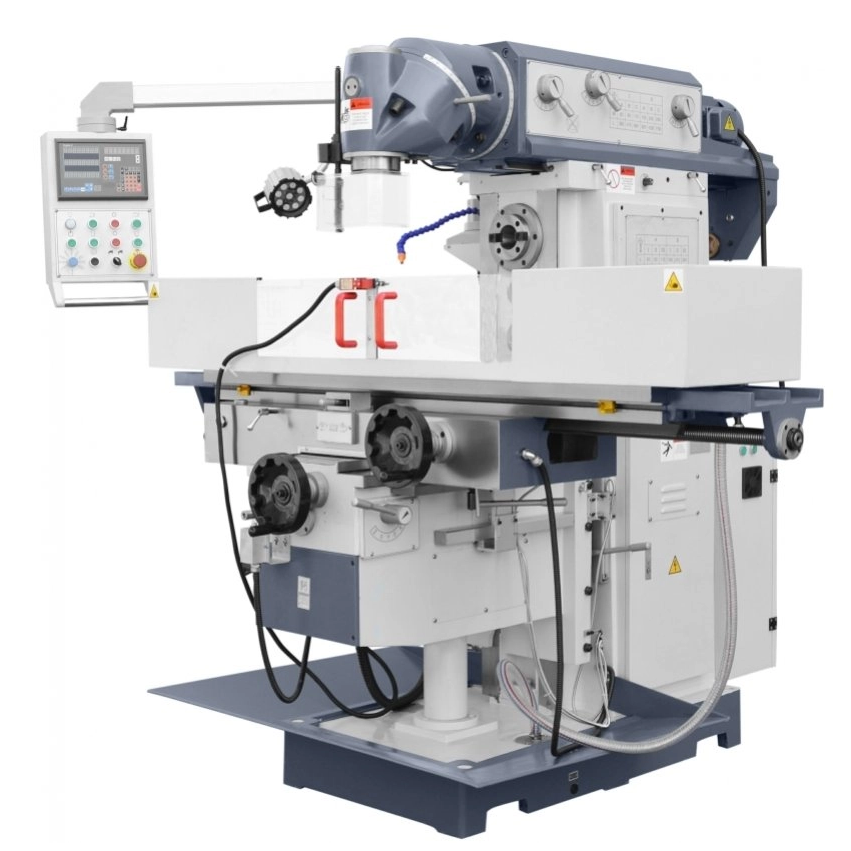

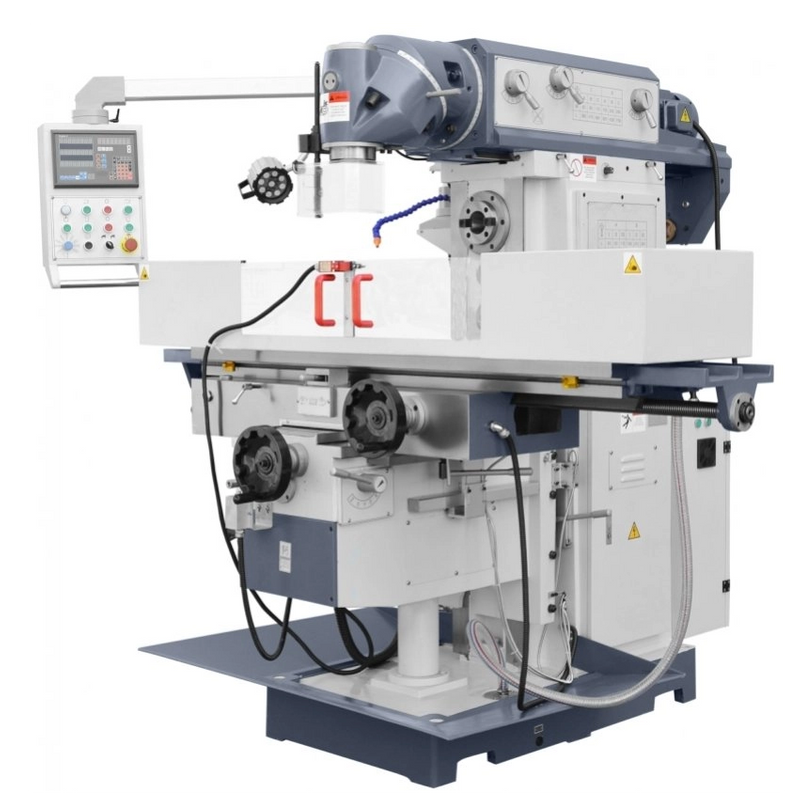

Universal milling machine UWF 150 SERVO
| Quantity: | |
|---|---|
It is a new series of conventional machines equipped with servodrives for 3 working feeds.
| TABLE DIMENSIONS | 1600x360 mm |
| MAX. TABLE TRAVEL (XYZ) | 1300x320x460 mm |
| TABLE FEED (XYZ) | 30-750/20-500/15-375 mm/min |
| SPINDLE TAPER | 7:24 ISO50 (H) 7:24 ISO 50(V) |
| ARM TRAVEL | 550 mm |
| SPINDLE DISTANCE FROM TABLE SURFACE | 196-656 mm |
| HORIZONTAL SPINDLE DISTANCE FROM TABLE | 20-480 mm |
| SPINDLE SPEED | (12) 60-1750(V) 60-1800(H) rpm |
| MOTOR POWER | 5.5 kW |
| SERVOMOTOR | 15 Nm |
| DIMENSIONS | 1800x2100x2000 mm |
| WEIGHT | 2885 kg |
