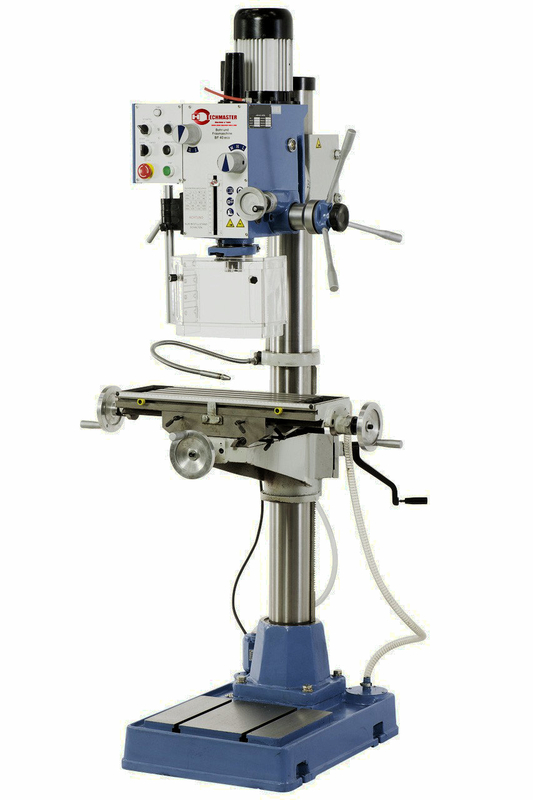

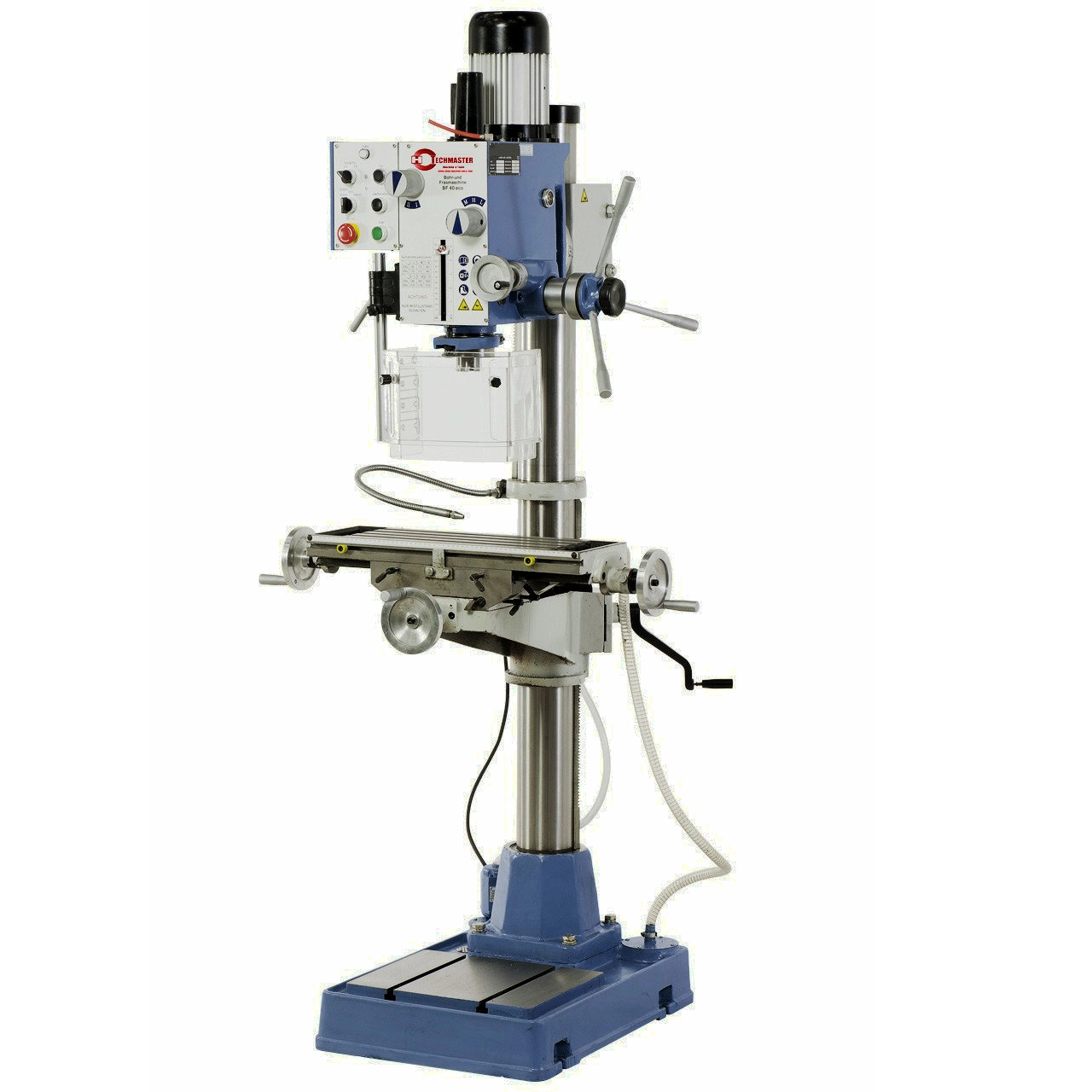

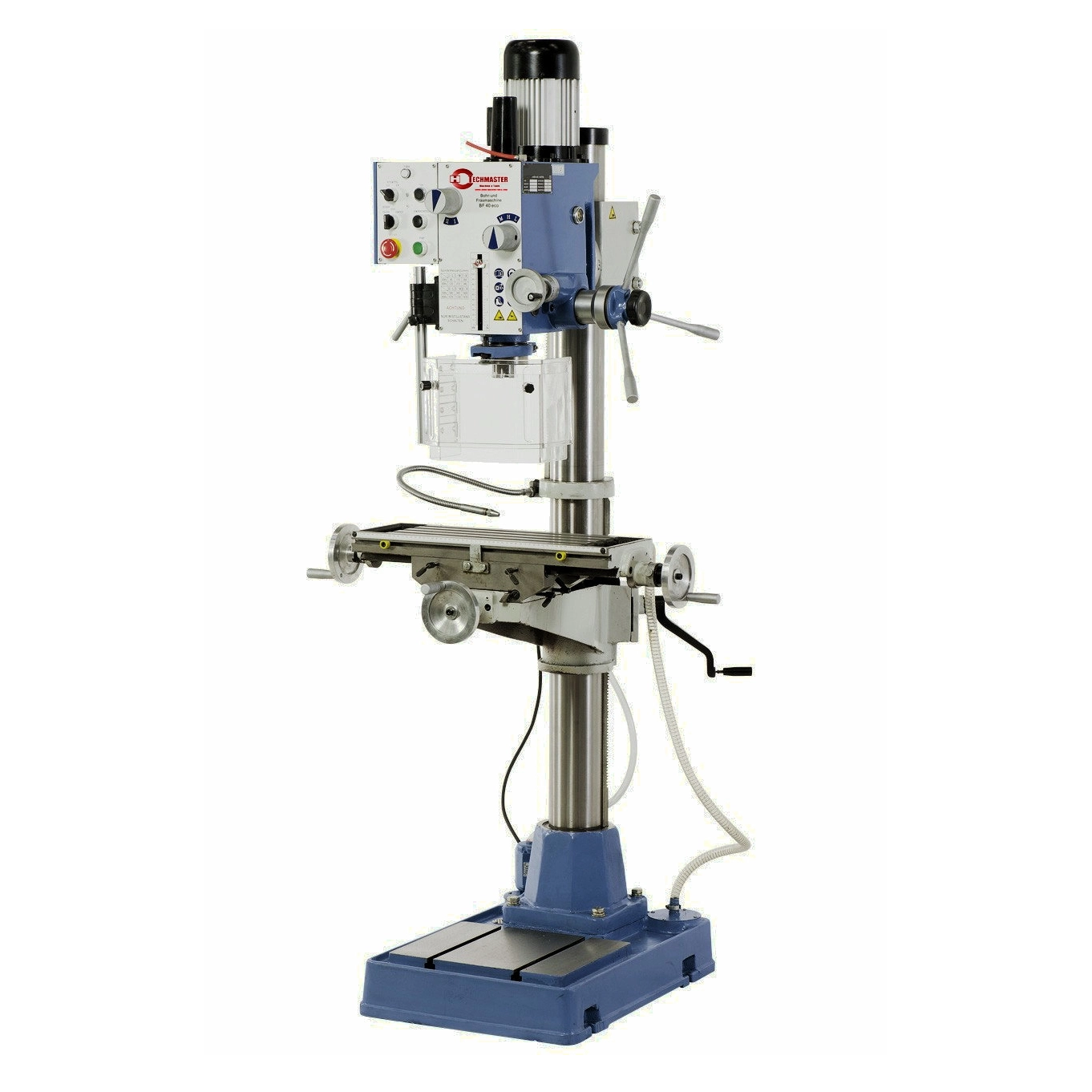

a suitable machine for various drilling, milling and countersinking works. The tilt- and turnable gear head makes this model a highly versatile option for model makers, repair shops and training purposes.
Drill capacity in steel | 32 mm |
Drill capacity on cast iron | 40 mm |
Distance spindle to column | 255 mm |
Spindle speed | (6) 95 - 1970 rpm |
Spindle taper | MT 4 |
Spindle stroke | 120 mm |
Table size | 585 x 190 mm |
T-slot size | 14 mm |
Distance spindle to table max. | 760 mm |
Distance spindle to base max. | 1280 mm |
Travel (x / y) | 380 / 170 mm |
Height adjustment of mill head | 470 mm |
Column diameter | 115 mm |
Base | 405 x 310 mm |
Motor power output S1 100% | 1,1 kW / 400 V |
Motor power input S6 40% | 1,5 kW / 400 V |
Machine dimensions (L x D x H) | 945 x 820 x 2100 mm |
Weight approx. | 350 kg |
Ergonomically arranged control elements
Right and left rotation allow thread cutting
Height adjustable gear head tilts 180° and turns 360°
Various applications such as groove milling, face milling, reboring etc.
Mill head can be tilted to both sides for angle drilling, milling of bevels etc.
Grey, cast iron table features T-slots and coolant groove
Solid, polished steel column in heavy-duty design
Integrated coolant pump in machine base comes standard
Spindle is seated in adjustable high-quality bearings
Standard accessories:
Keyless drill chuck 1 - 16 mm / B 18
Drill chuck arbor MT 4 / B 18
Morse taper drill sleeve MT 4 / 3, MT 4 / 2
Drawbar M 10 with adapter M 16
Milling head 80 mm with MT 4 taper
Thread cutting device
Coolant device
Height adjustable protective cover
Longitudinal scale
Tools
