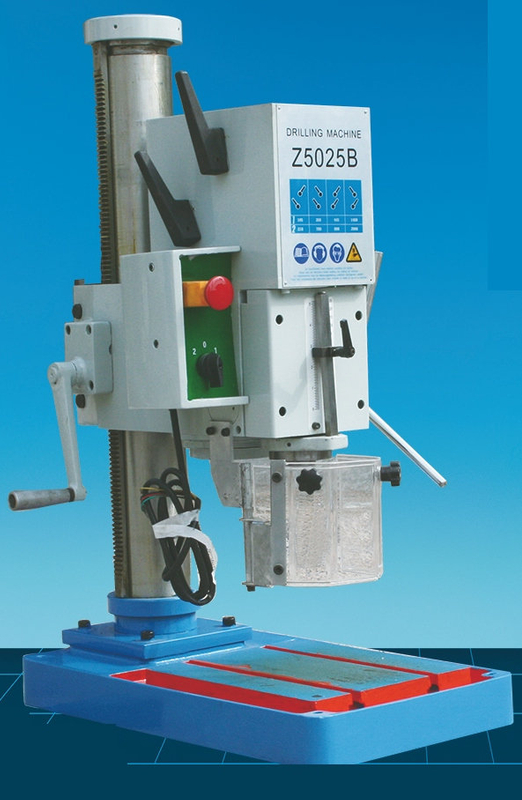

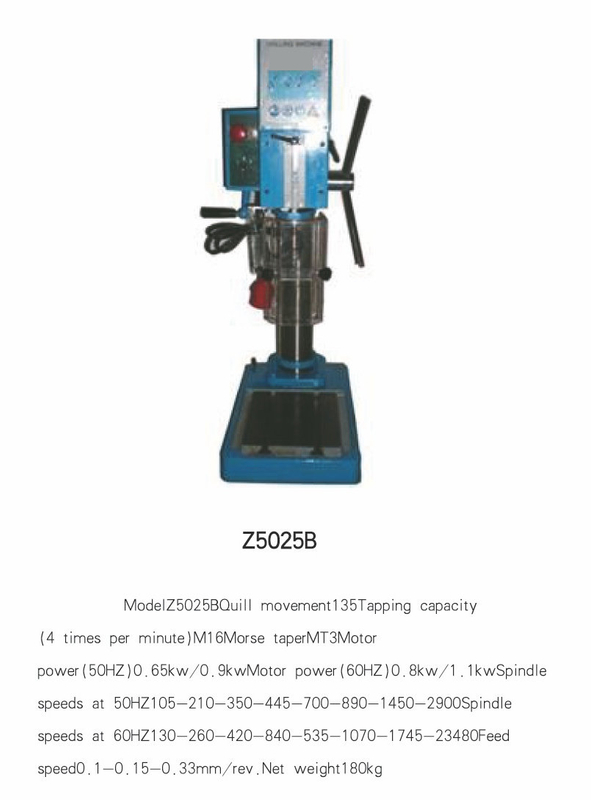

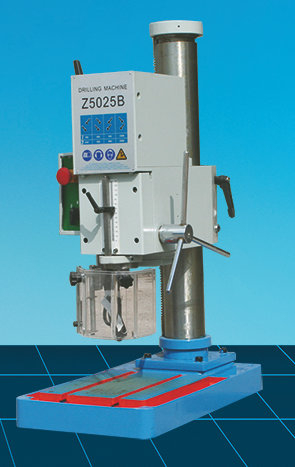

| Drill Press Machine | |
| Model | Z5025B |
| Quill movement | 135 |
| Tapping capacity | M16 |
| (4 times per minute) | |
| Morse taper | MT3 |
| Motor power(50HZ) | 0.65kw/0.9kw |
| Motor power(60HZ) | 0.8kw/1.1kw |
| Spindle speeds at 50HZ | 105-210-350- |
| 445-700-890- | |
| 1450-2900 | |
| Spindle speeds at 60HZ | 130-260-420- |
| 840-535-1070- | |
| 1745-2348 | |
| Feed speed | 0.1-0.15- |
| 0.33mm/rev. | |
| Net weight | 150kg |
