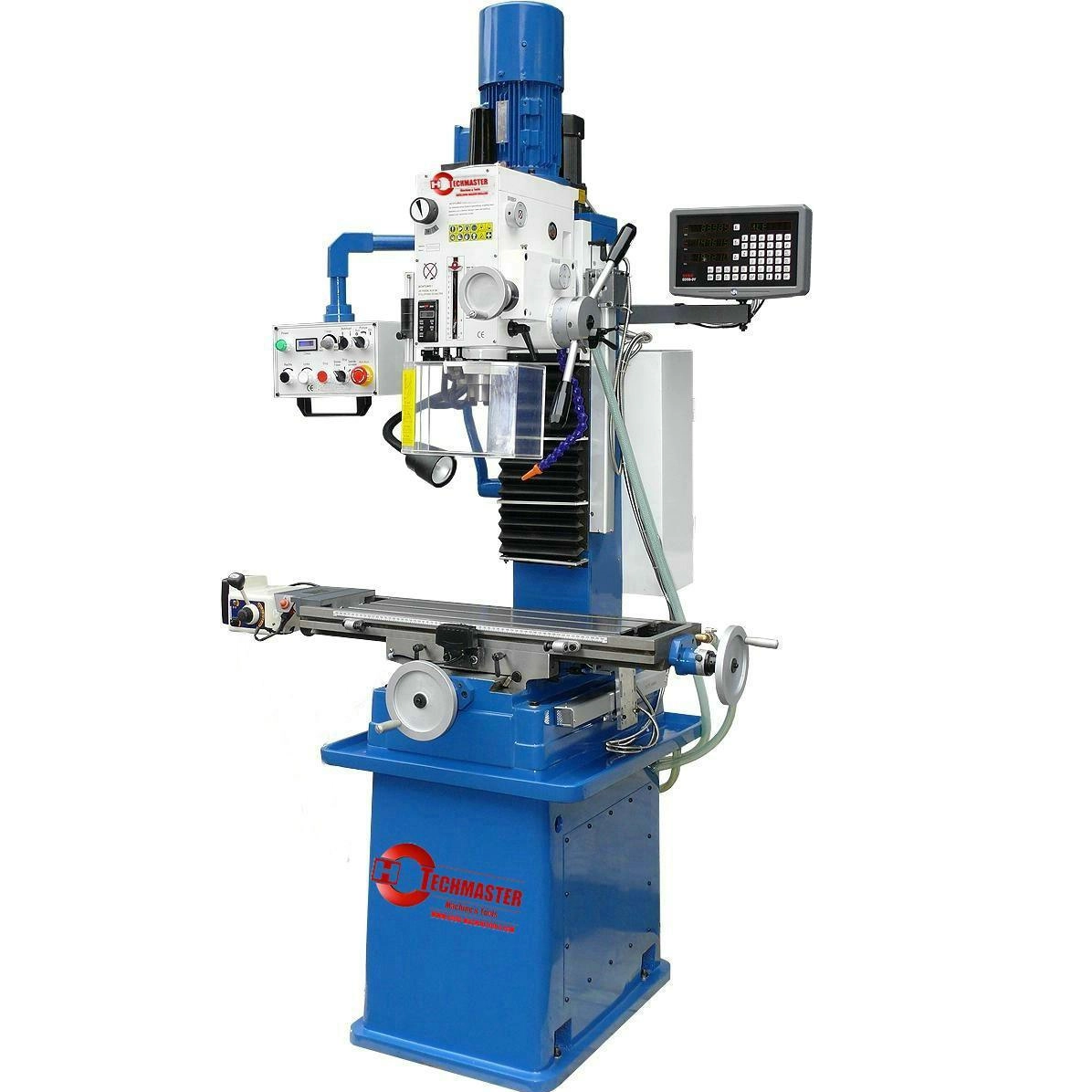

Model No.< | ZX7045V |
Max. drilling capacity | 45mm |
Table size | 800x240mm |
Cross travel | 220mm |
Longitudinal travel | 580mm |
Vertical travel | 300mm |
Spindle taper | MT 4 |
Spindle stroke | 120mm |
T-slot size | 14mm |
Range of spindle speeds | 75-2500rpm(230V AND 400V CAN BE CHOOSE) |
Range of spindle feeds | 0.1/0.18/0.26mm/ |
Frequency Motor | 1.5kw |
Net weight | 580kg |
Maximum drilling capacity in steel: 45 mm.
Maximum milling capacity in steel: 32 mm.
Maximum capacity milling cutter: 80 mm.
Motor Power: 1500 Watt /
Speed range, stepless: 80 to 3000 O/min.
Speeds of the automatic spindle feed: 0,1 - 0,18 - 0,26 mm/rpm.
Spindle stroke: 125 mm.
Spindle taper: ISO 30.
Table sizes: 240 x 800 mm.
Cross slide: 230 mm.
Longitudinal travel: 560 mm.
Diameter of the T-Slots: 14 mm.
Maximum distance spindle / table: 460 mm.
Machine dimensions: 118 x 96 x 210 cm.
Packaging dimensions: 118 x 96 x 210 cm.
Weight: 580 Kg.
This machine comes standard includes:
Speed range, stepless.
Digital depth readout.
Digital speed readout.
Automatic spindle feed.
Drill chuck arbor ISO 30 - B 18.
Left / Right switch.
Spindle Protection.
Fine adjustment.
Automatic table feed.
Halogen lighting.
Cooling equipment.
SINO 3 Axis Digital readout system.
Luxury control box with arm.
Automatic spindle feed milling head up - down.
Undercarriage.
Expulsion gusset.
Tightening Wire.
Associated tools.

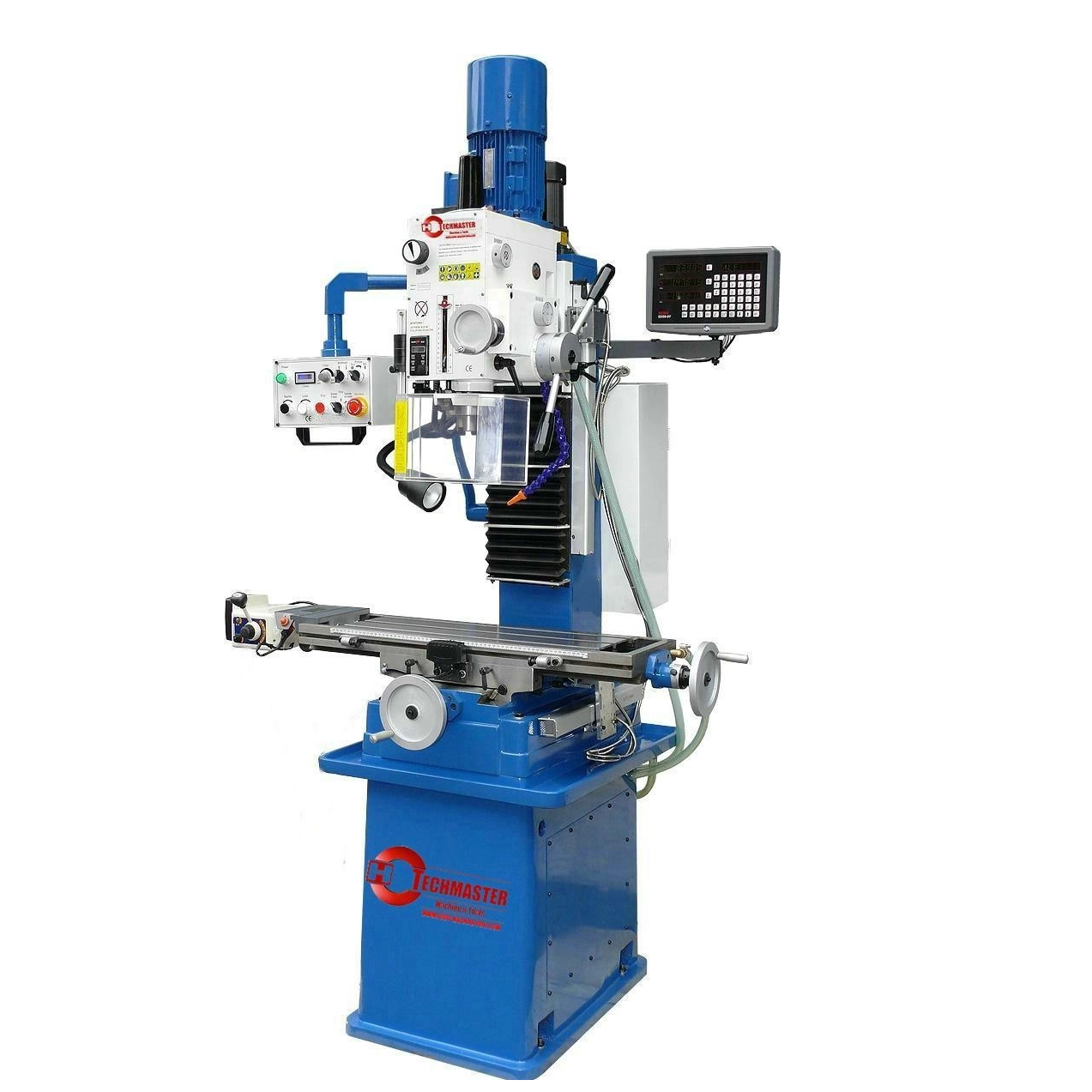

Model No.< | ZX7045V |
