Features
solid drilling table
Precisely machined surface
Solid base plate with T-Slot
CE standard and Certificate

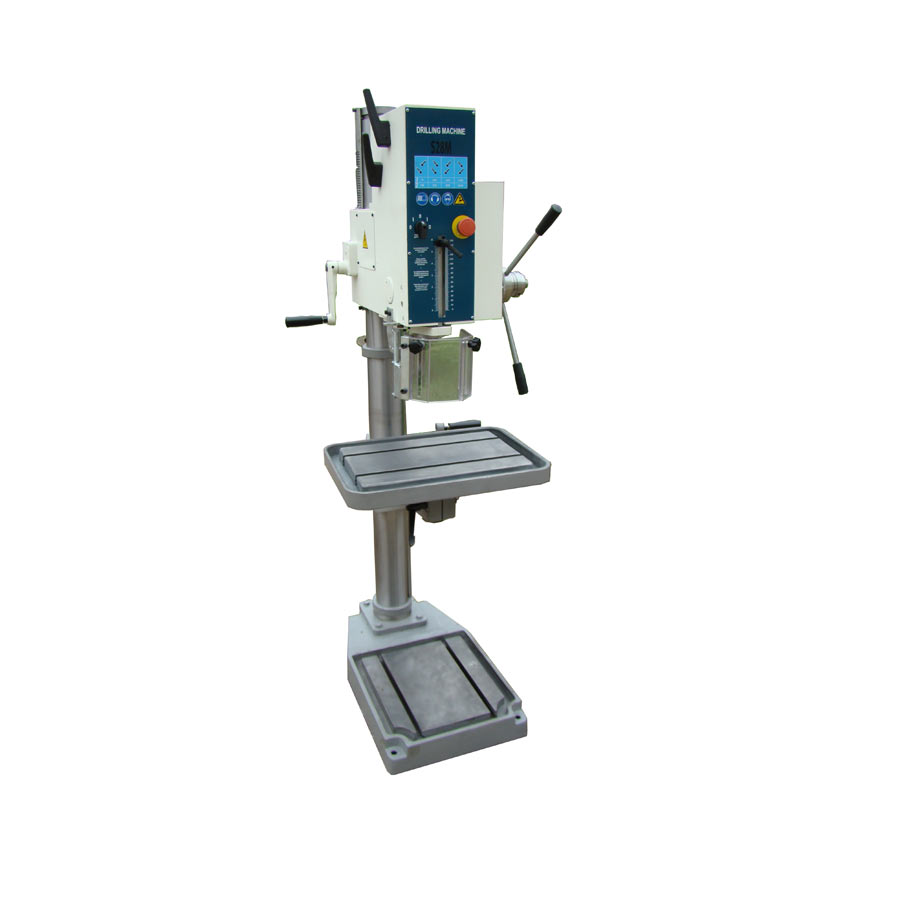

Our vertical drilling machine features sound performance and high precision.
It is equipped with an automatic cutter retracting device and the powerful two speed strong motor,8 high-grade spindle speed.
Our vertical drilling machine T28 has an automatic mechanical feeding device.
The power-off shield protection of our vertical drilling machine makes the work safer and efficient.
8
High Quality Vertical Drilling Machine T-28, China manufacture
Technical Specifications
| Model | T-28 | T-30 | T-28B | T-30B |
| Max.drilling dia.(mm) | 28 | 30 | 28 | 30 |
| Spindle travel(mm) | 150 | 150 | 150 | 150 |
| Tapping capacity in steel/cast iron | M12/M16 | M12/M16 | M12/M16 | M12/M16 |
| Morse taper | MT3 | MT3 | MT3 | MT3 |
| Motor power | 0.9kW/1.2kW | 1.1kW/1.3kW | 0.9kW/1.2kW | 1.1kW/1.3kW |
| Spindle speeds at 50Hz | 75-160-265-440- 535-890-1490-3010 | 75-160-265-440- 535-890-1490-3010 | 75-160-265-440- 535-890-1490-3010 | 75-160-265-440- 535-890-1490-3010 |
| Spindle speeds at 60Hz | 90-190-320-525-640- 1060-1785-3610 | 90-190-320-525-640- 1060-1785-3610 | 90-190-320-525-640- 1060-1785-3610 | 90-190-320-525-640- 1060-1785-3610 |
| Feed speed(mm/rev) | 0.1-0.15-0.22-0.33 | - | 0.1-0.15-0.22-0.33 | - |
| Packing size(cm) | 174X67X85 | 174X60X90 | 74X48X118 | 74X48X135 |
| N.W./G.W. | 210/235kg | 215/240kg | 195/215kg | 200/220kg |
