1. Danish top quality products
2. Easy operation.
3.Continuous inner rated motor 8 speeds.
4.Mechanical feed.
Specification:

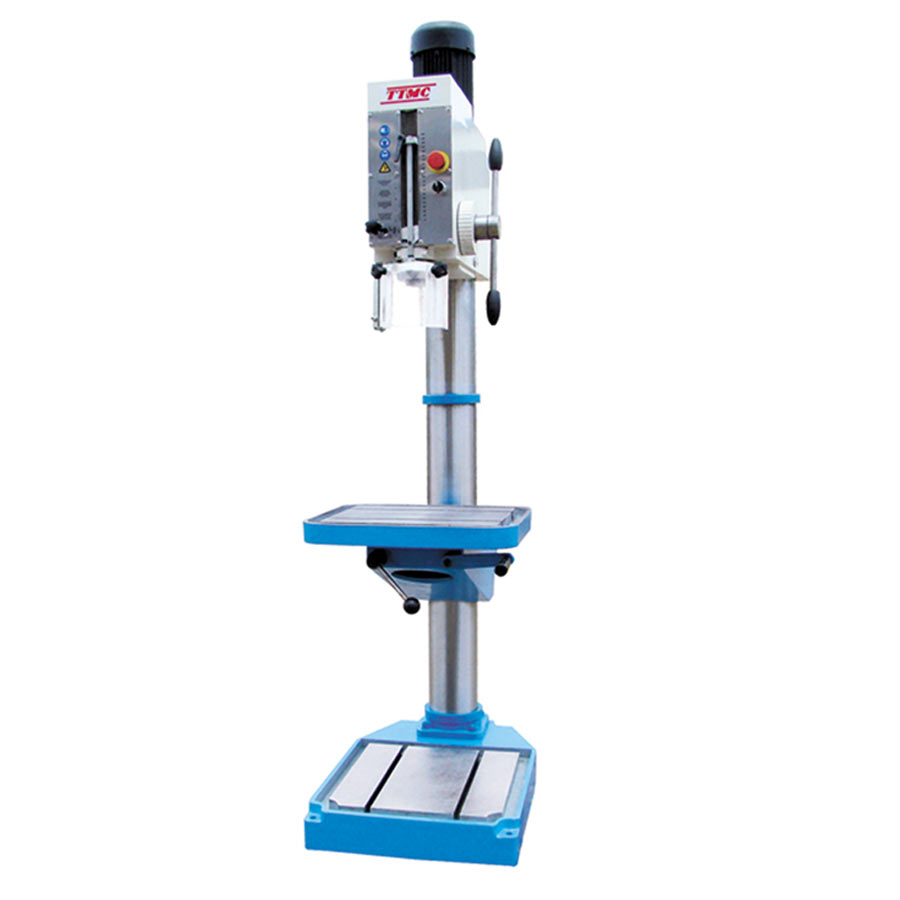

| Model | T-40 |
| Max. drilling dia. | 40mm |
| Spindle travel | 190mm |
| Tapping capacity in steel/cast iron | M18/M32 |
| Morse taper | MT4 |
| Motor power | 2.2kW |
| Spindle speed at 50Hz | 90-135-200-300-440-670-980-1500 |
| Spindle speed at 60Hz | 108-162-240-360-528-805-1175-1800 |
| Feed Speed | 0.1-0.16-0.24-0.33 mm/rev |
| Packing size | 217x57x93cm |
| N.W./G.W. | 290/310kg |
Standard accessories:
1.Safe guard
2. Automatic feed
Optional accessories:
Drill bits
1. Danish top quality products
2. Easy operation.
3.Continuous inner rated motor 8 speeds.
4.Mechanical feed.
Specification:
| Model | T-40 |
| Max. drilling dia. | 40mm |
| Spindle travel | 190mm |
| Tapping capacity in steel/cast iron | M18/M32 |
| Morse taper | MT4 |
| Motor power | 2.2kW |
| Spindle speed at 50Hz | 90-135-200-300-440-670-980-1500 |
| Spindle speed at 60Hz | 108-162-240-360-528-805-1175-1800 |
| Feed Speed | 0.1-0.16-0.24-0.33 mm/rev |
| Packing size | 217x57x93cm |
| N.W./G.W. | 290/310kg |
Standard accessories:
1.Safe guard
2. Automatic feed
Optional accessories:
Drill bits
