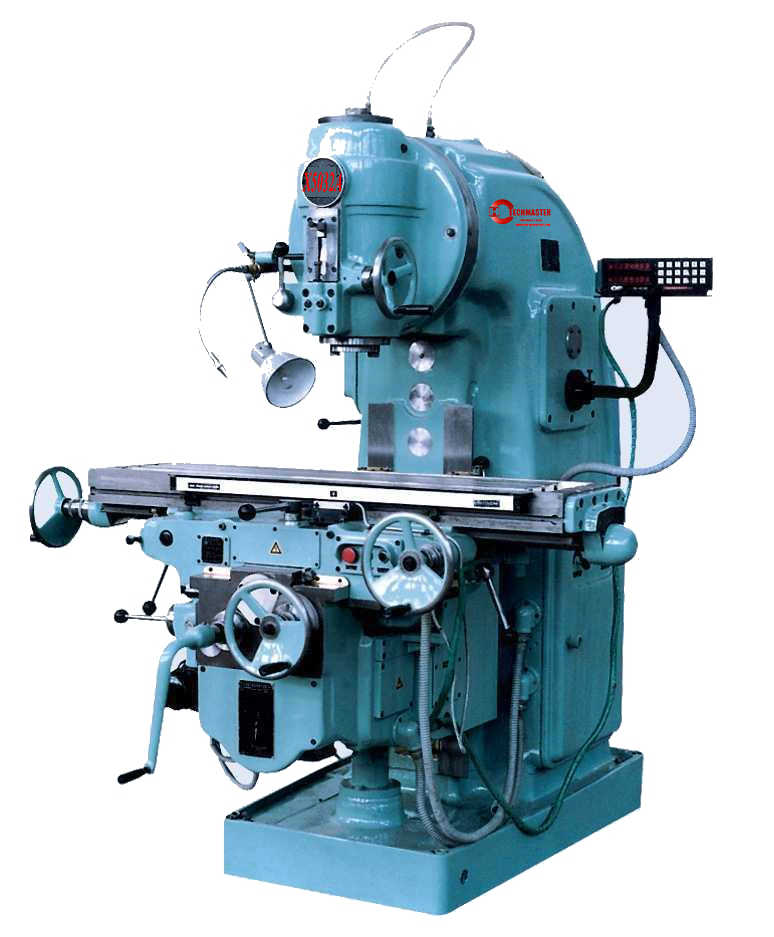

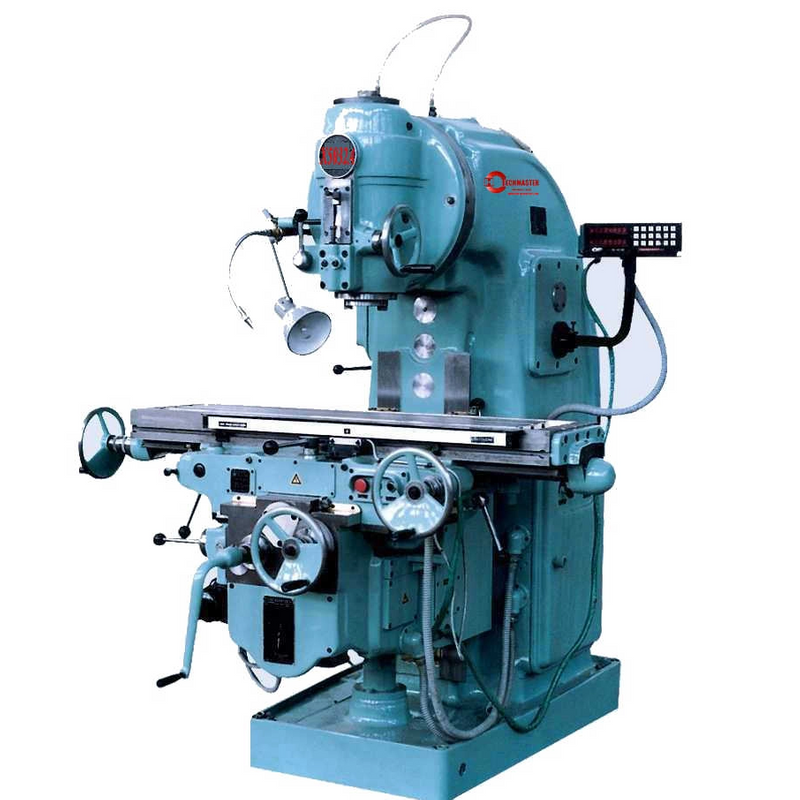

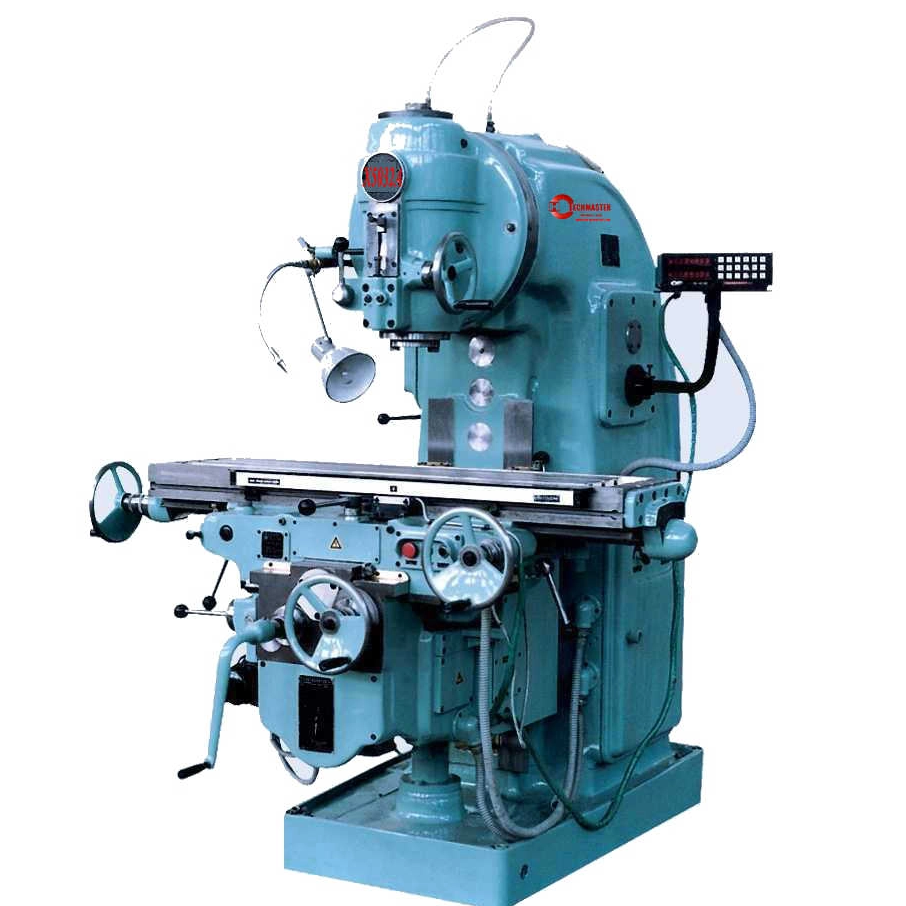

Vertical milling machine X5032A
The basic castings of this series product have excellent rigidity and precision maintenance. Thanks to the employment of 18-grade shift gears by principal axis drive and feed drive, which has wide range of speed shift, this machine boasts wide range of machining.
| MAIN SPECIFICATION | UNIT | X5032A | |
| Table surface | mm | 320x1320 | |
| Number of T-slots | mm | 3 | |
| Width of T-slots | mm | 18 | |
| Distance between T-slots | mm | 70 | |
| Rotations angle of table | | ±45° | |
| Travel (X/Y/Z) | Manual | mm | 700/255/350 |
| Travel (X/Y/Z) | Mechanical | mm | 682/240/330 |
| Power of Main Motor Rotary | KW | 7.5 | |
| Speed (Horizontal spindle/ Vertical spindle) | r/min | 18 step 30-1500 | |
| Distance from spindle nose to table surface | mm | 60-410 | |
| Min. distance from spindle axis to vertical shaft guide way | mm | 350 | |
| Distance from table axis to guide way surface | mm | 215-470 | |
| Rotations angle of Milling head | mm/min | 18steps 23.5-1180/23.5-1180/8-394 | |
| Feed speed of table | mm/min | 2300/2300/770 | |
| Rapid feed of table | kw | 1.5 | |
| Motor | mm | 0.005 | |
| Overall dimensions (LxWxH) | mm | 2294x1770x1904 | |
| Net weight of machine | kg | 2800 | |
