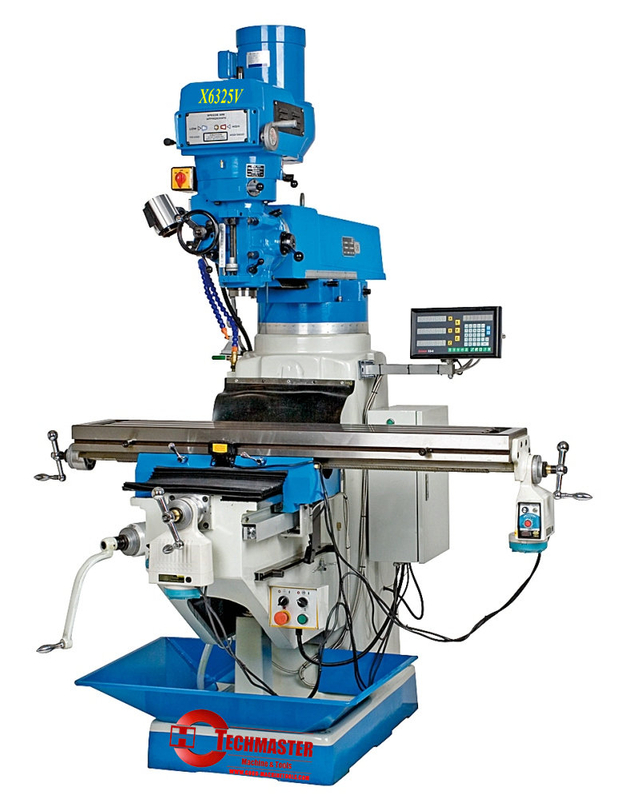

| MODEL | VARIABLE X6325DV |
| Specifications | |
| Table size | 254X1270 mm |
| Table travel (X,Y) | 850 x 305 mm |
| Knee travel | 2400 mm |
| T-slot | 3 x 16 mm |
| Ram travel | 312 mm |
| Distance spindle nose to table | 445 mm |
| Spindle taper | ISO40 |
| Spindle stroke | 127 mm |
| Step of spindle speeds | Variable |
| Range of spindle speeds | 60~3750rpm |
| Automatic spindle feed (mm/rev) | 3 steps 0.04/0.08/0.15 |
| Spindle motor | 3.75kw/5HP 400V |
| Head swivel (L&R) | 90° |
| Head tilt (Back&Forward) | 45° |
| Y-axis guideway | Rectangular guildway |
| Z-axis guideway | Rectangular guildway |
| Packing size | 2433x1750x2200mm |
| Net weight | 1100 kg |
