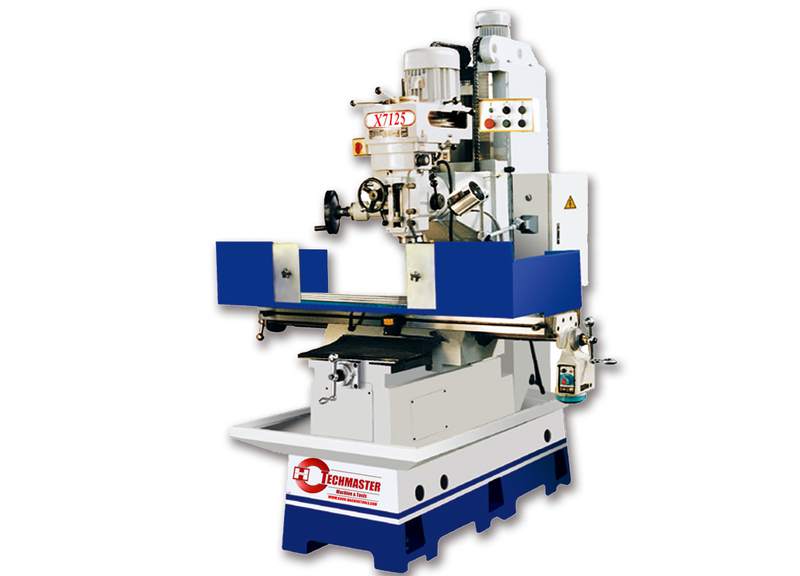

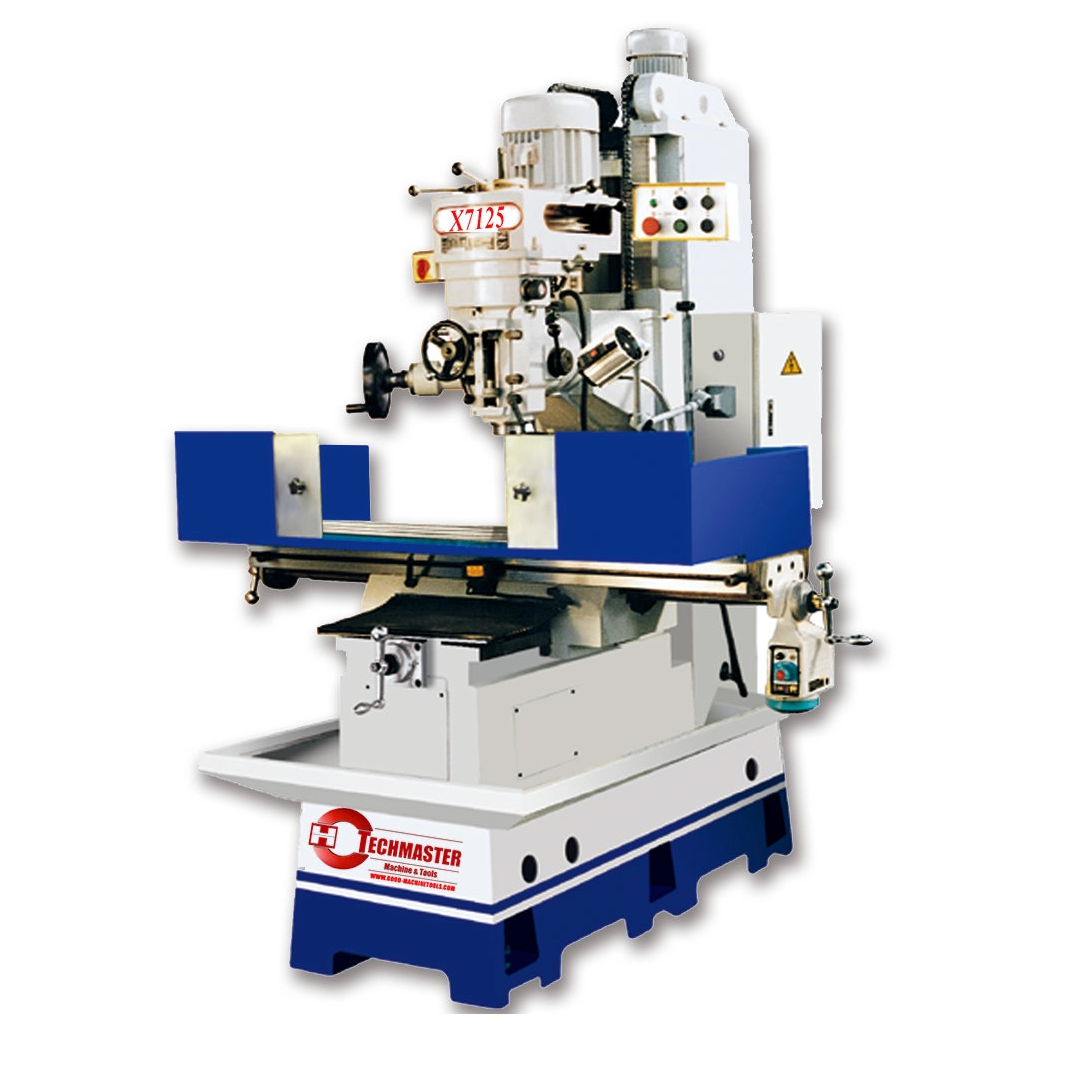

X7125 X7130 Bed Type Vertical Milling Machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equiped with optional accessories, such as vertical milling head and dividing gead, machine can be applicable to versatile processing. With high rigidty, accuracy and efficiency, it is an ideal machine tool for machining process, maintenance, instrument, die and molds.
Complete coolant and lubrication system
DRO equipment is optional
Model | X7125 | X7130 | ||||
Table size(mm) | 254*1270 | 254*1370 | 305*1370 | 305*1500 | ||
Table longitudinal travel(mm) | 760 | 860 | 880 | 1000 | ||
Table cross travel(mm) | 535 | 510 | ||||
Milling head vertical travel(mm) | 405 | |||||
Distance from spindle to table(mm) | 150-600 | |||||
Milling head | Motor power(HP) | 3HP | 5HP | |||
Spindle taper | R8 | ISO40 | ||||
Quill travel(mm) | 127 | |||||
Spindle speed | Standard:16steps | 50HZ:65-4500 60HZ:80-5440 | ||||
Optional:Variable | 65-4200 | 60-3750 | ||||
Quill power feed | 0.04/0.08/0.15 | |||||
Package size | One machine/1package(mm) | 1800*1500*2400 | 1850*1500*2400 | |||
Two machines/1package(mm) | 2200*1500*2400 | 2250*1500*2400 | ||||
G.W. | One machine(kg) | 1900 | 2000 | 2050 | ||
Two machines(kg) | 3900 | 4000 | 4100 | |||
Standard accessories
Draw bar | Tool box | Tools | Oil collecting plate |
Auto. Lubicate pump | Coolant pump | Table guard | Working lamp |
Special accessories
Digital readout | Power feed | Collet chuck and collets | Clamping kits |
Machine vise | Inverter milling head | Variable speed milling head | Air power drawbar |
