Feature:
Superior machining quality and high reliability
Rigid, heavy machine frame featuring proven knee-and-column design
Guideways and gears are hardened and ground
Vertical cutter head swivels and can easily be disassembled and handled via a machine-mounted bracket
Servo-motor-driven, infinitely variable feeds and rapid feeds on all axes
Standard equipment includes chip tray, coolant system and central lubrication system

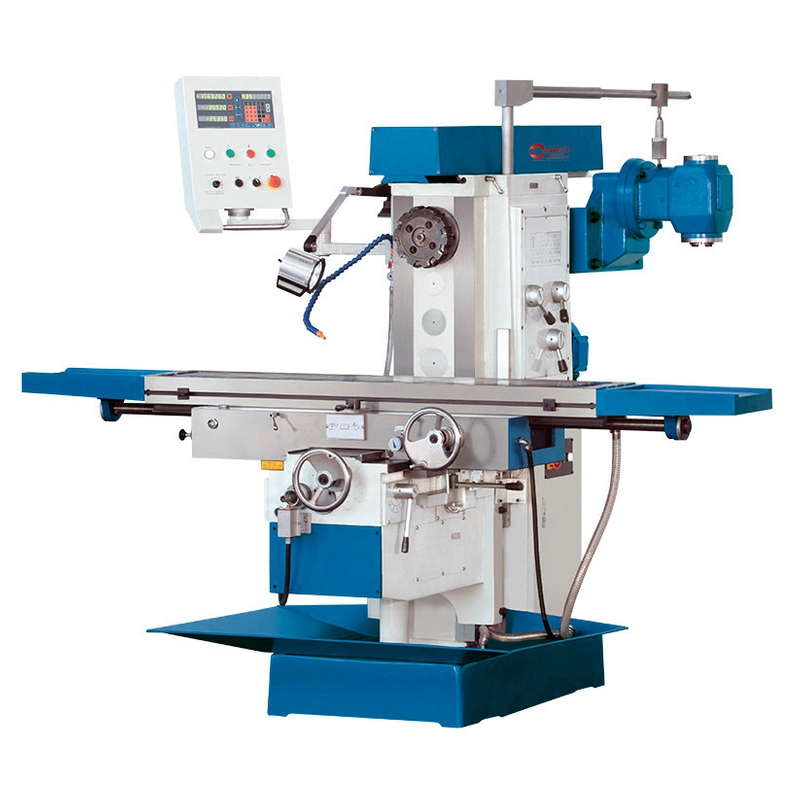

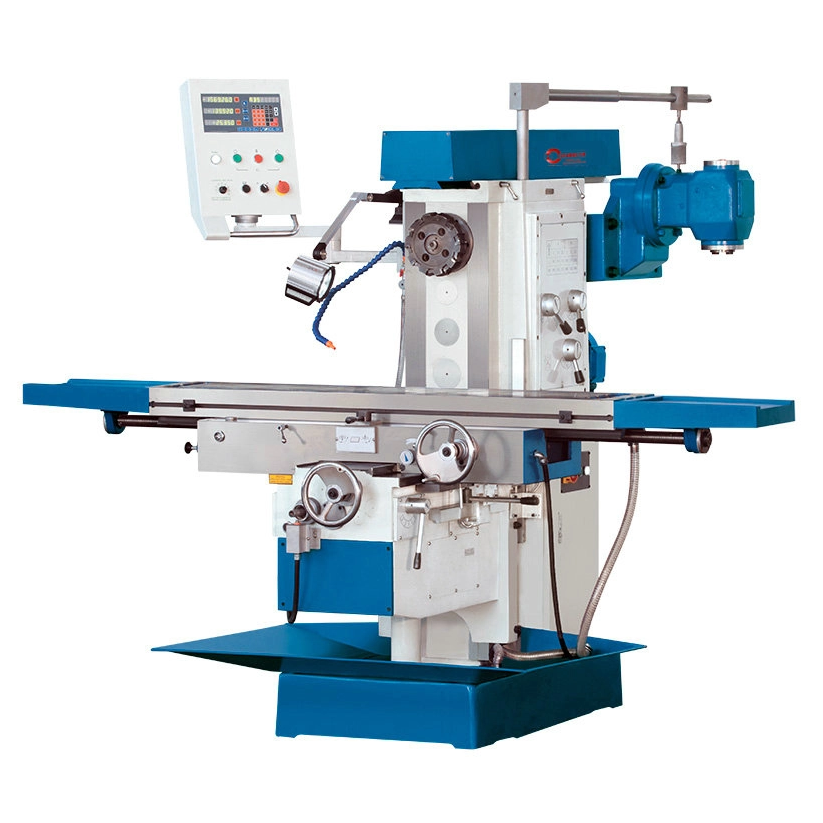

| Universal Milling Machine | XL6032CL |
| working area | |
| travel X-axis | 1300 mm |
| travel Y-axis | 290 mm |
| travel Z-axis | 450 mm |
| table dimensions | 320x1600 mm |
| table load capacity (max.) | 300 kg |
| number of T-slots | 3 Pieces |
| T-slots, width | 18 mm |
| T-slots, spacing | 70 mm |
| feed | |
| rapid feed X-axis | 1200 mm/min |
| rapid feed Y-axis | 800 mm/min |
| rapid feed Z-axis | 600 mm/min |
| feed speed X-axis | 30 - 750 mm/min |
| feed speed Y-axis | 20 - 500 mm/min |
| feed speed Z-axis | 15 - 375 mm/min |
| Milling Head | |
| speed range | 60 - 1800 rpm |
| spindle mount | ISO 50 |
| Spindle center-to-table distance | 20 - 470 mm |
| drive capacity | |
| motor rating main drive | 5,5 kW |
| motor rating X axis feed | 1,5 kW |
| motor rating Y axis feed | 1,5 kW |
| motor rating Z axis feed | 1,5 kW |
| motor rating coolant pump | 0,09 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 2520x2100x1870 mm |
| weight | 2510 kg |
