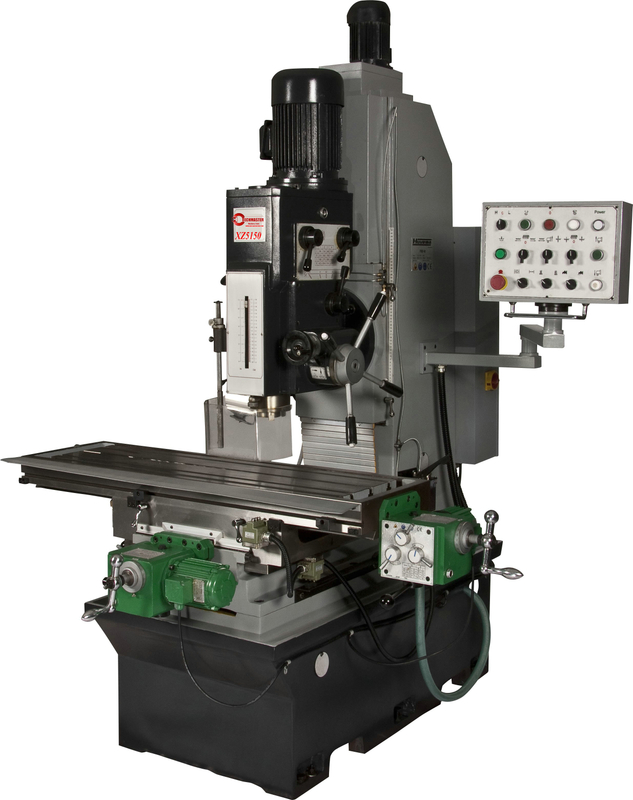

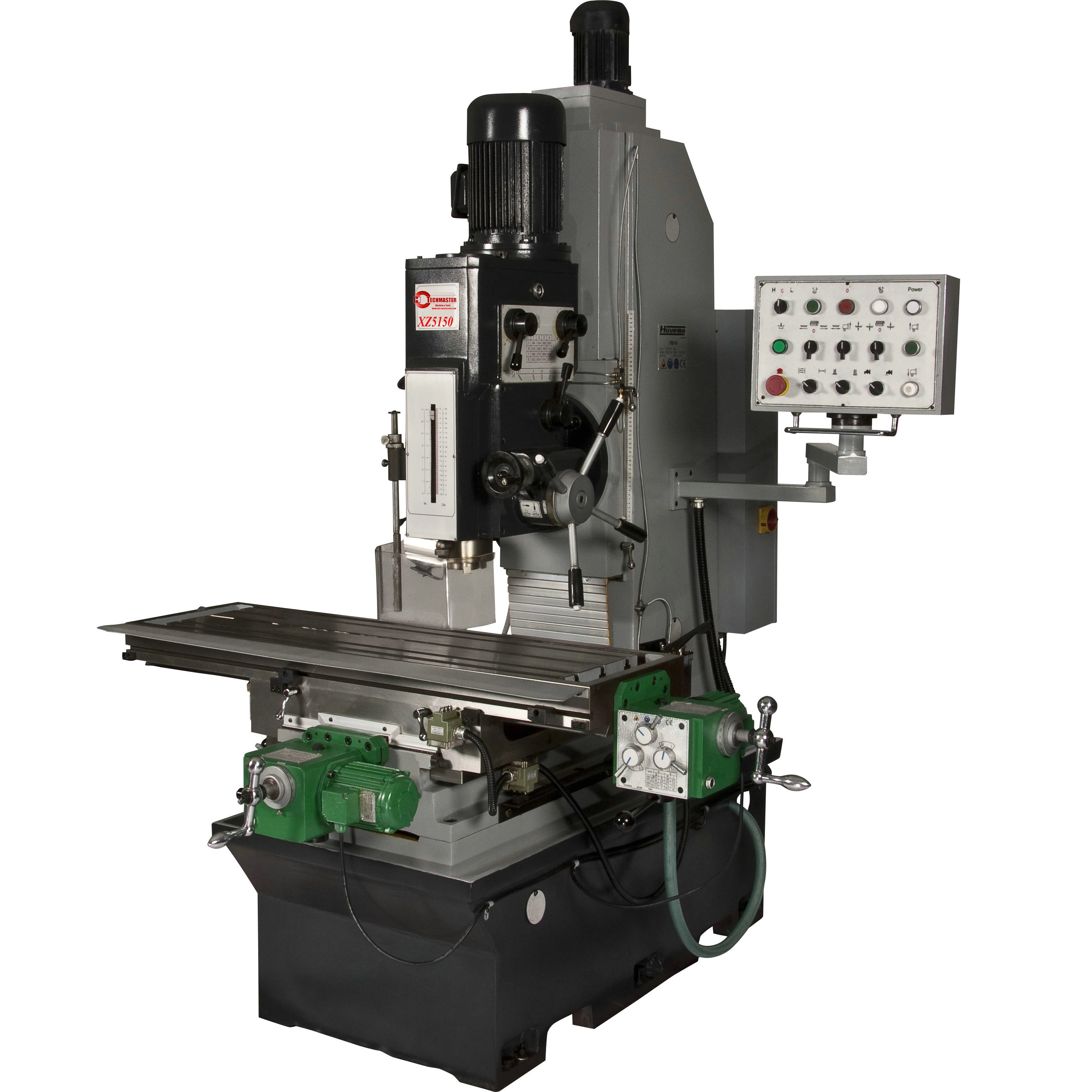

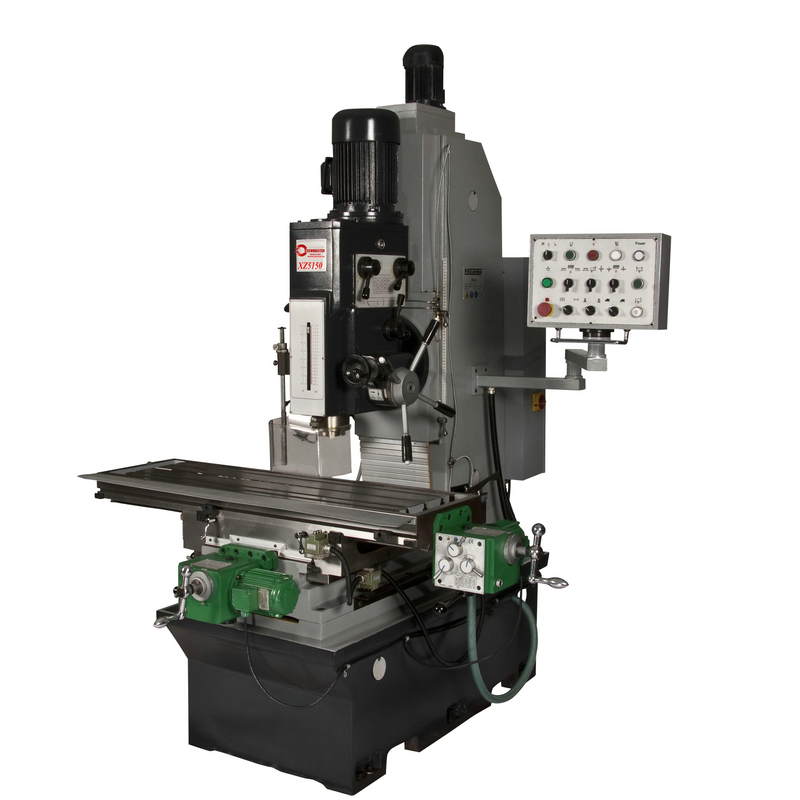

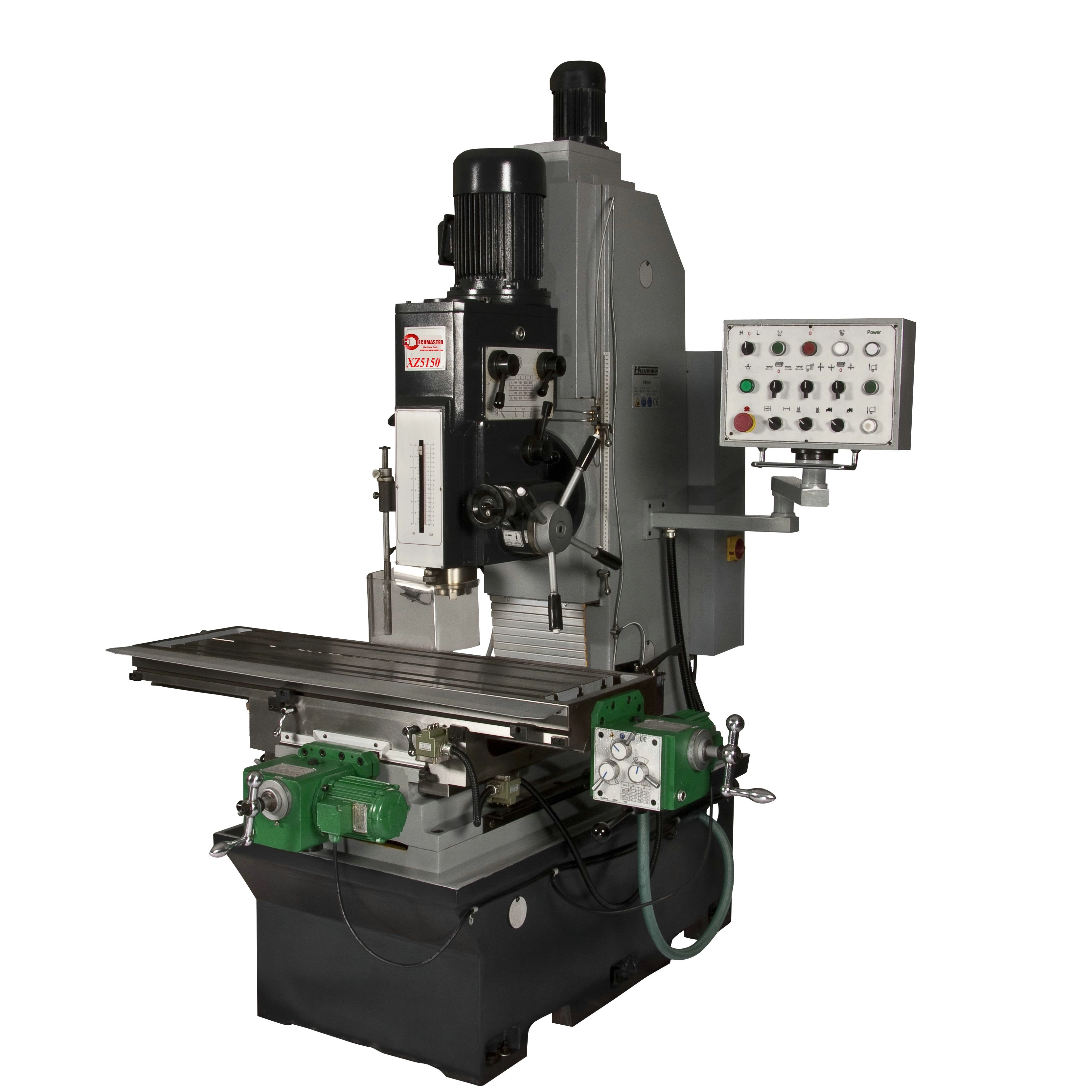

Industrial horizontal milling machine with drill spindle. With traverse in X and Y direction and rapid traverse on the Z-axis. Drill spindle with electromagnetic feed. Fitted out with a moveable control panel.
integrated cooling system
halogen machine light
drill spindle with magnetic feed
central lubrication system
| Spindle taper | ISO 40 |
|---|---|
| Speed vertical spindle | 94 - 2256 rpm |
| Motor power vertical | 0,55 kW |
| Longitudinal table travel | X - 600, Y - 360 mm |
| Head movement | 45 ° L/R |
| Rapid travel | Z - 1300 mm/min |
| Feed range | XY 24 - 720 mm/r |
| T-slots number/dimensions | 3/14 x 95 mm |
| Spindle travel | 180 mm |
| Distance spindle-table | 80 - 580 mm |
| Table size | 1220 x 360 lxw |
| Dimensions machine w x h x d | 1730 x 1750 x 2300 mm |
| Net weight | 1400 kg |
| Voltage | 400 V |
